Name: Fractal Design Dynamic 3-12 Reverse PC fan Black (W x H x D) 25 x 120 x 120 mm
Brand: Fractal Design
SKU: 3788771

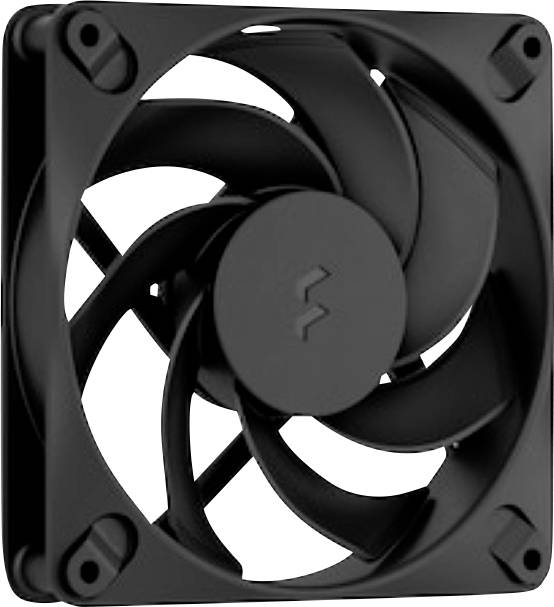

Black square computer cooling fan with curved blades and four corner mounting holes on a white background

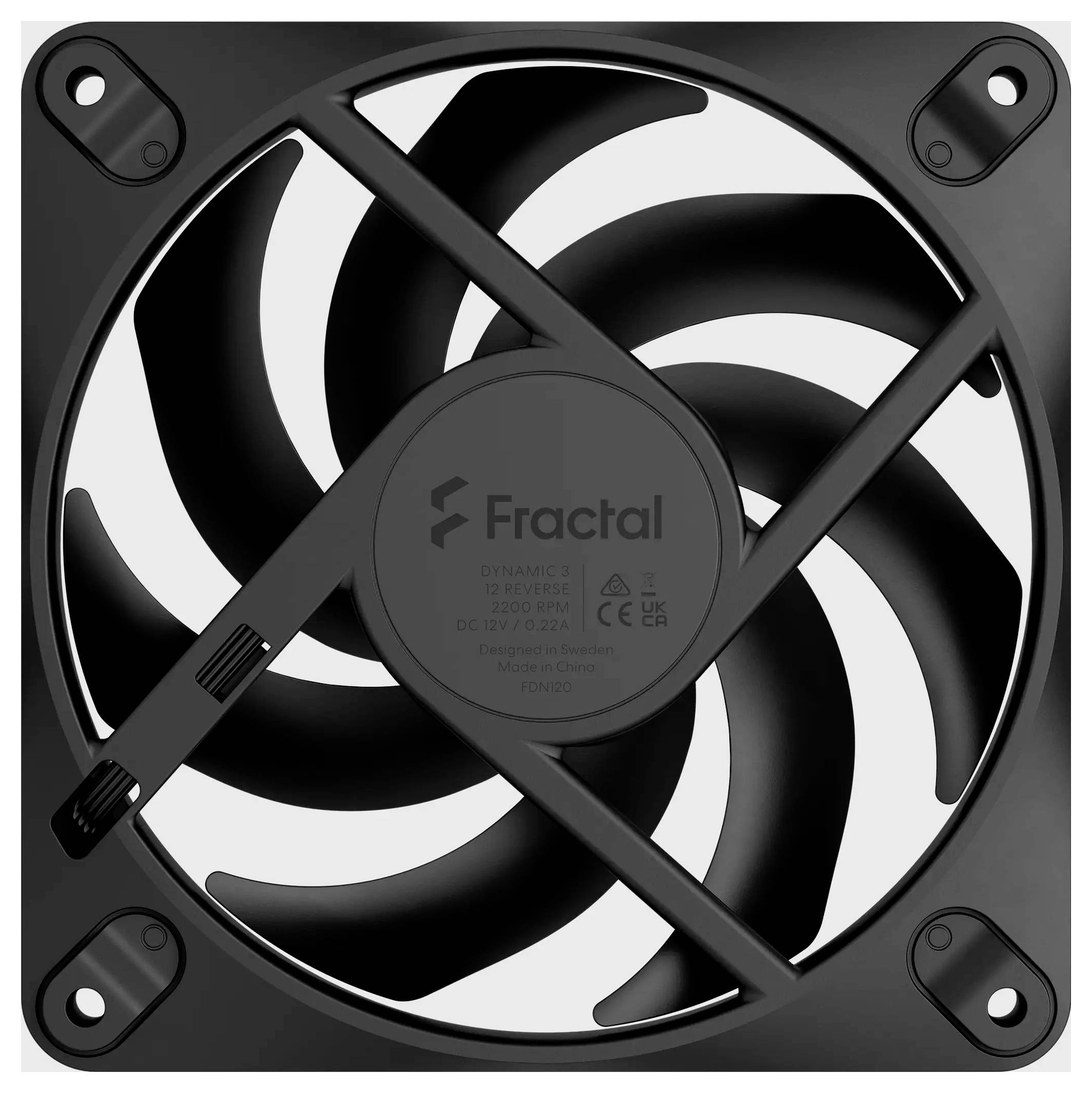

Black Fractal cooling fan with four blades and mounting corners, shown front-on on a white background.<br>

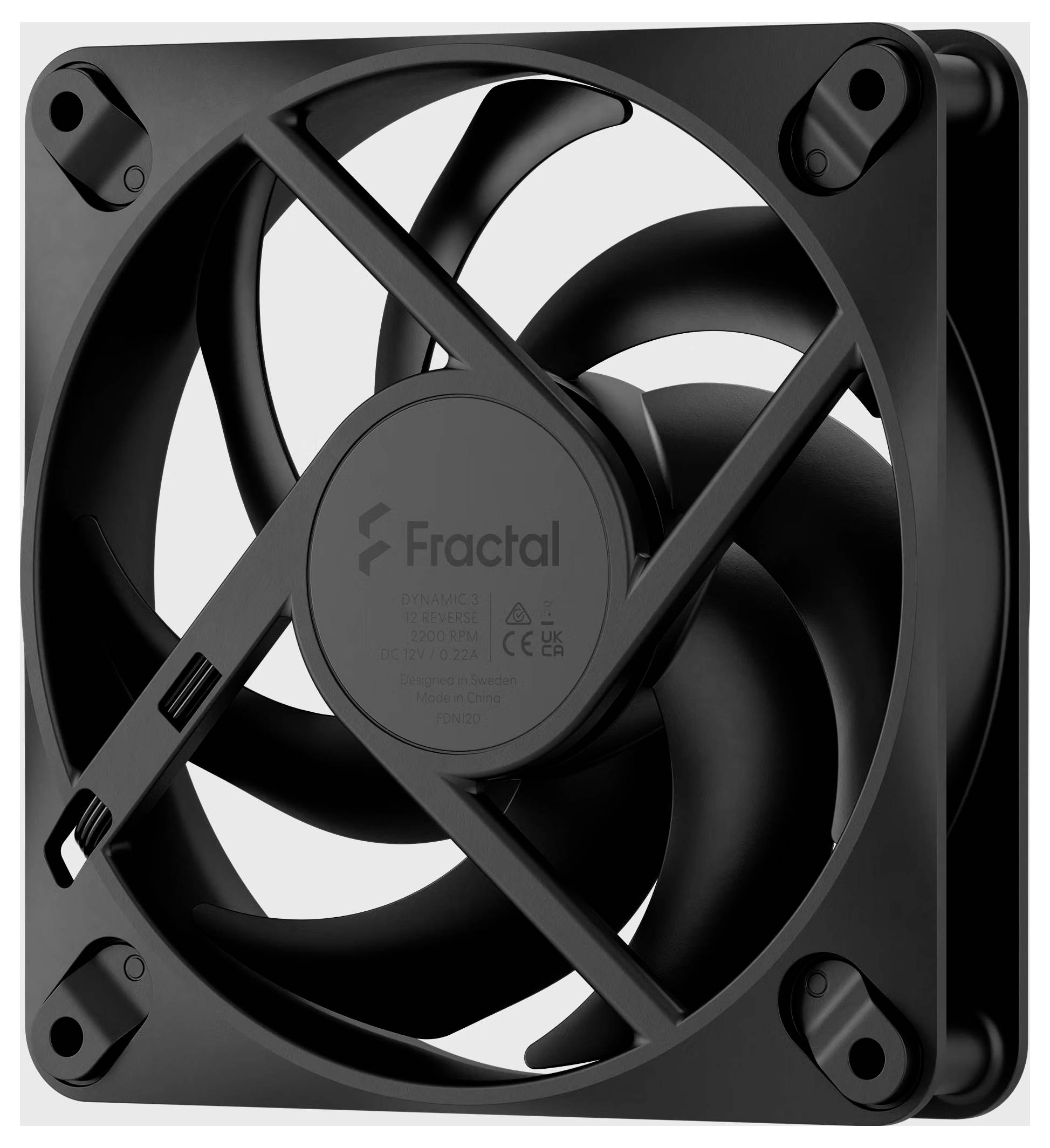

Black Fractal cooling fan with four corner mounts and a central hub, shown front view on a white background.

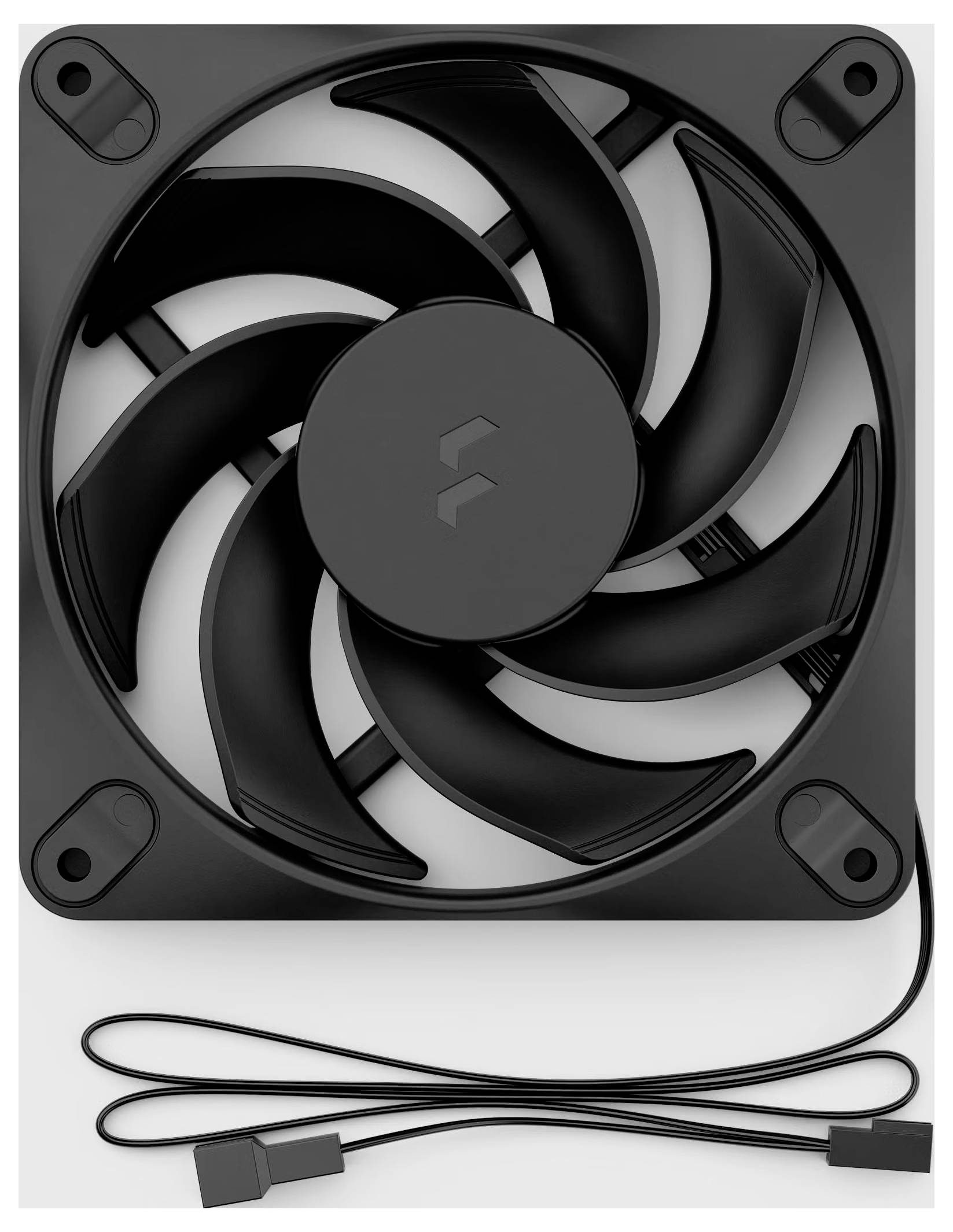

A black square computer cooling fan with curved blades and attached power cable on a white background.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Hole spacing 105 mm
Number of fan blades: 7
Fan blade type: Reverse
Static pressure: 2.49 Hight O
Power consumption 2.6 W
Input current 0.22 A
Input voltage: 12 V
Start-up voltage 7 V
Cable length: 500 mm

Product type: PC fan

Fan size: 120 mm

Noise emission (max.): 35.9 dBa

Noise emission: 30.1 dBa - 40 dBa

Rotational speed (min.): 350 U/min

Air discharge: 109.4 m³/h

Rotational speed (max.): 2200 U/min

Type of bearing: Rifle bearing

Connection: 4-pin PWM

Factory colour: Black

Weight: 160 g

Width: 25 mm

Height: 120 mm

Depth: 120 mm

Dim: (W x H x D) 25 x 120 x 120 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3788771 Fractal Design Dynamic 3-12 Reverse PC fan Black (W x H x D) 25 x 120 x 120 mm

User & Safety Instructions

User & Safety Instructions 3788771 Fractal Design Dynamic 3-12 Reverse PC fan Black (W x H x D) 25 x 120 x 120 mm

Description

A series of fans, which combines strong cooling with a clear, modern appearance. Dynamic 3 combines cooling performance with low noise and precise control.

This text is machine translated.

Description

A series of fans, which combines strong cooling with a clear, modern appearance. Dynamic 3 combines cooling performance with low noise and precise control.

This text is machine translated.
