Fractal Design Meshify 2 Tower PC casing Black 3 built-in fans
EAN:
Part number:
Item no:

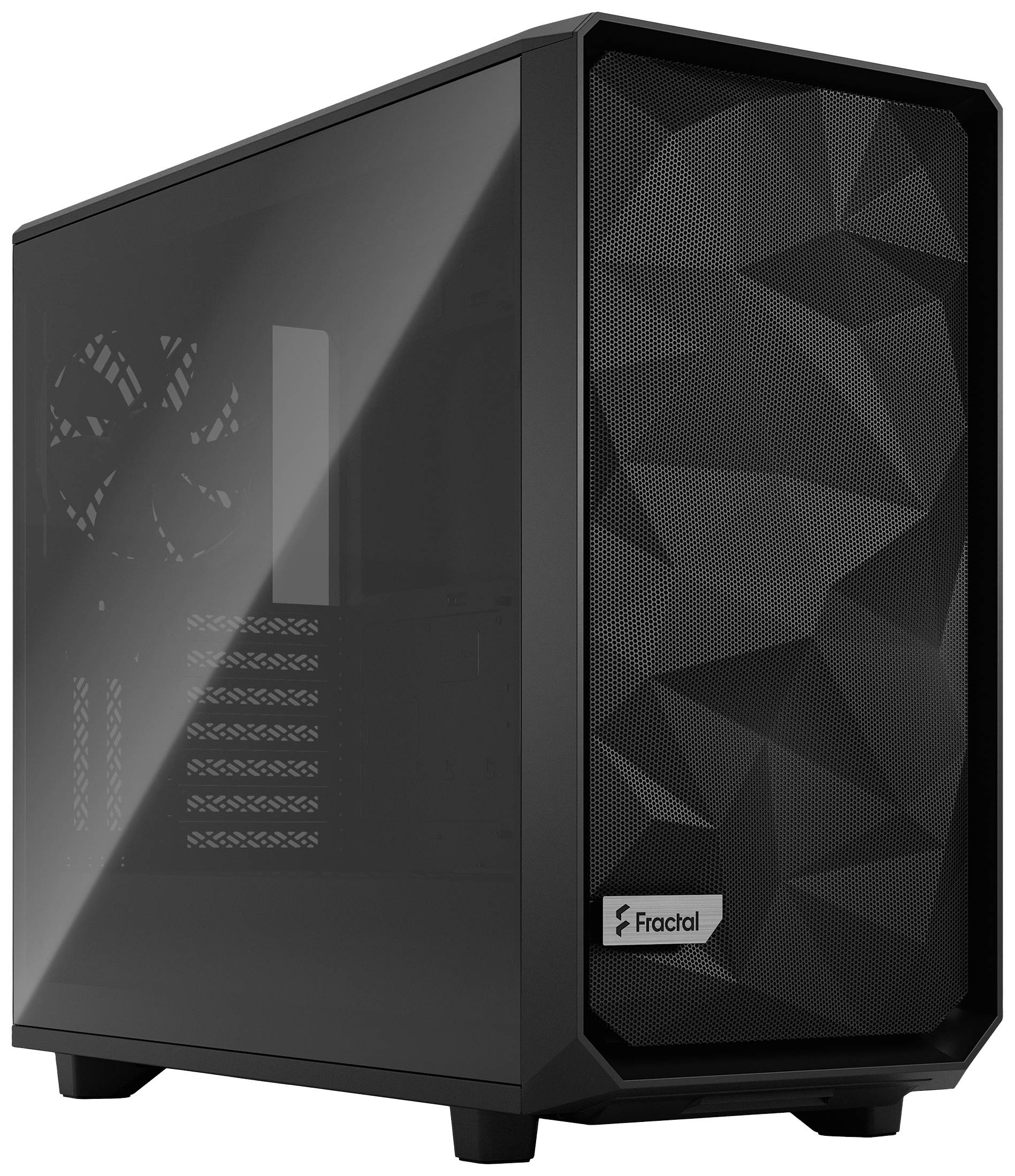

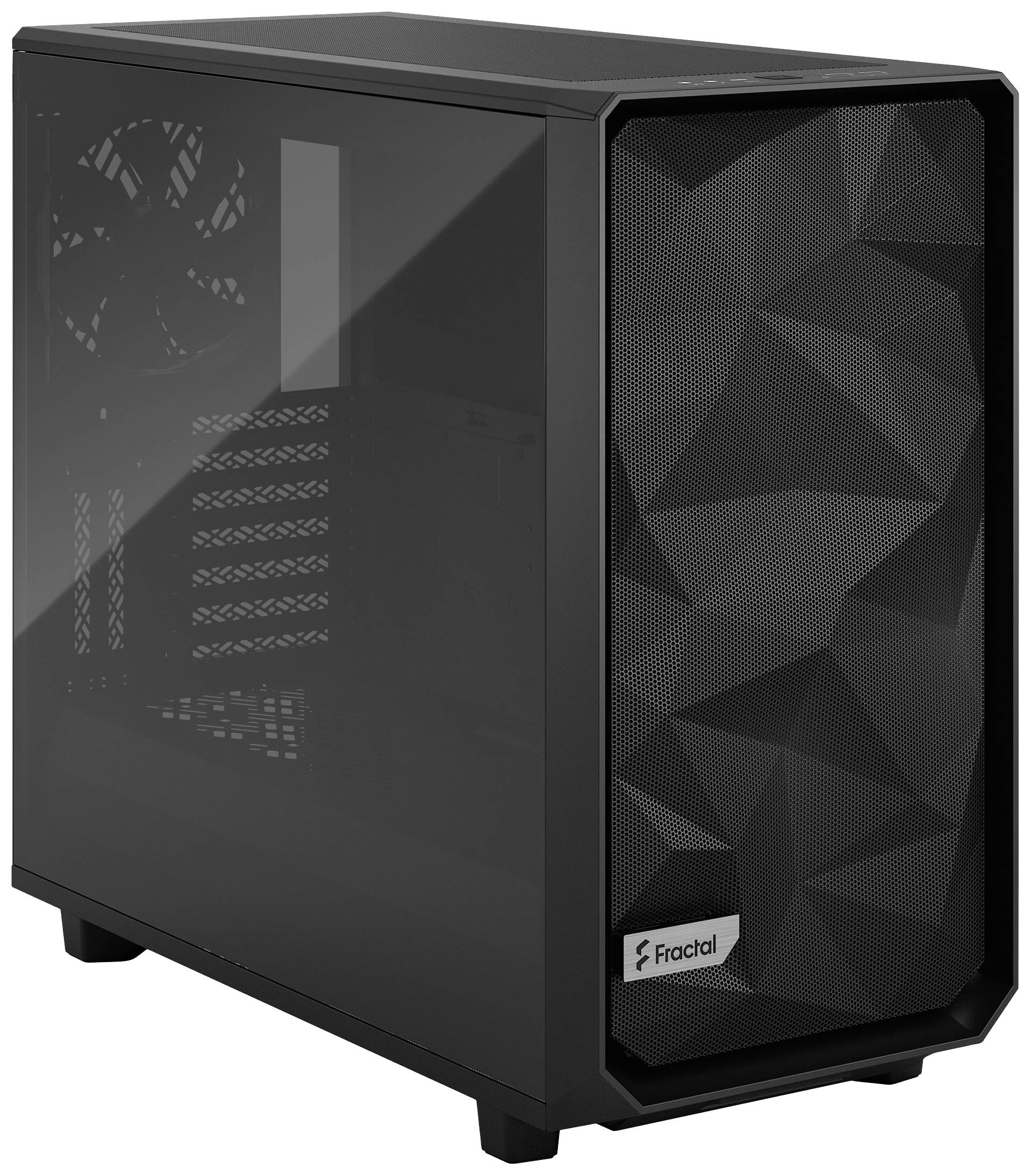

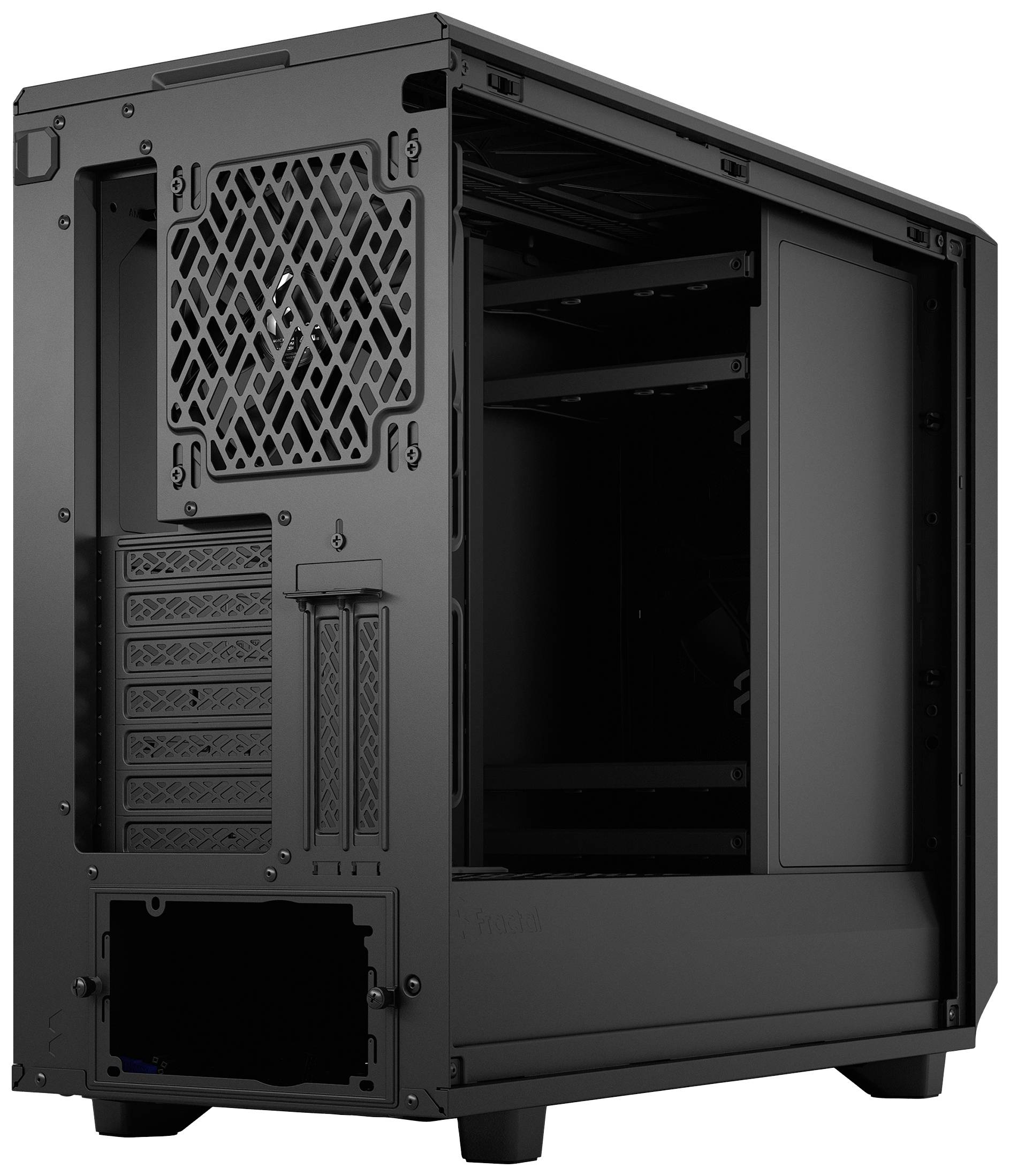

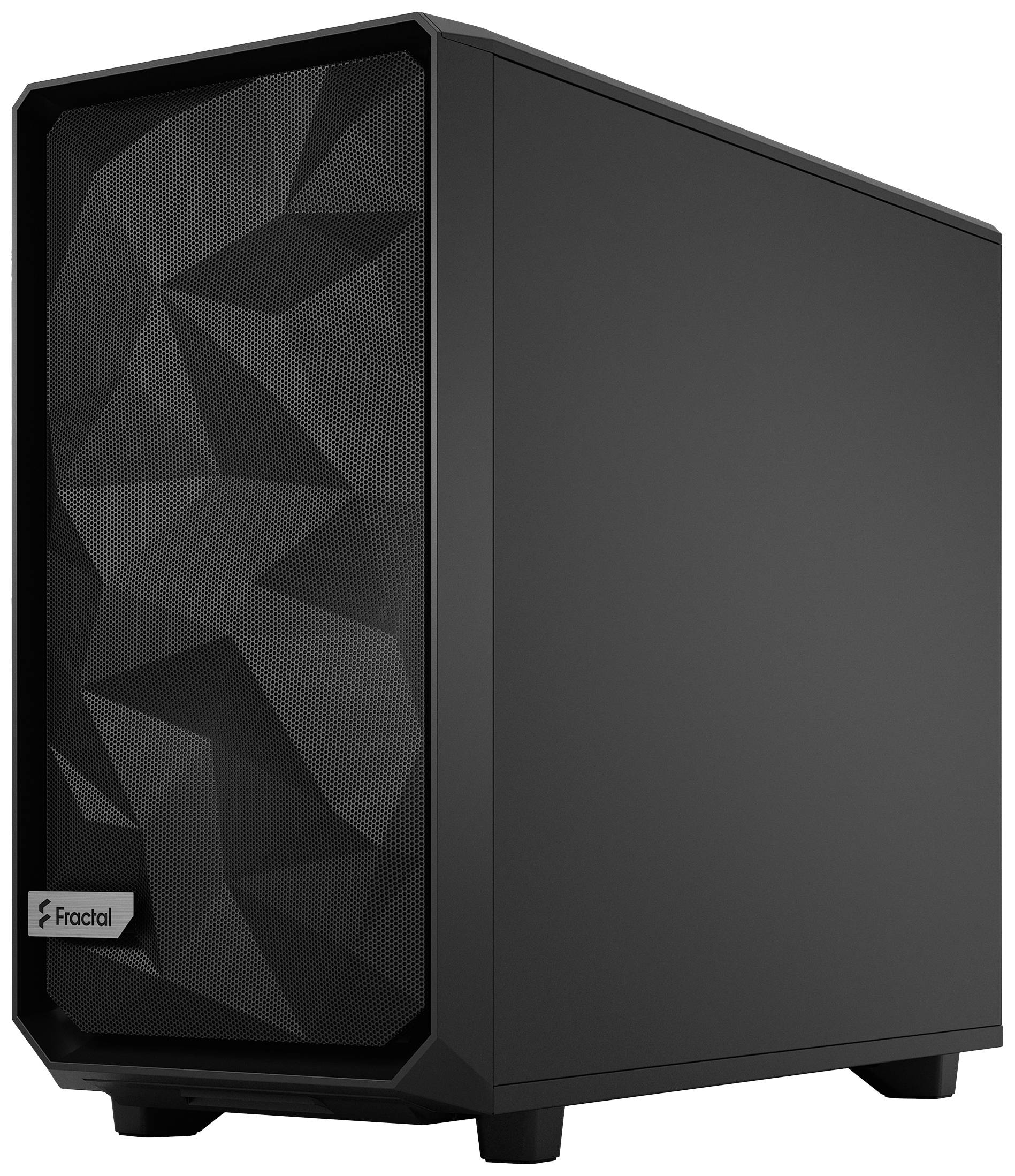

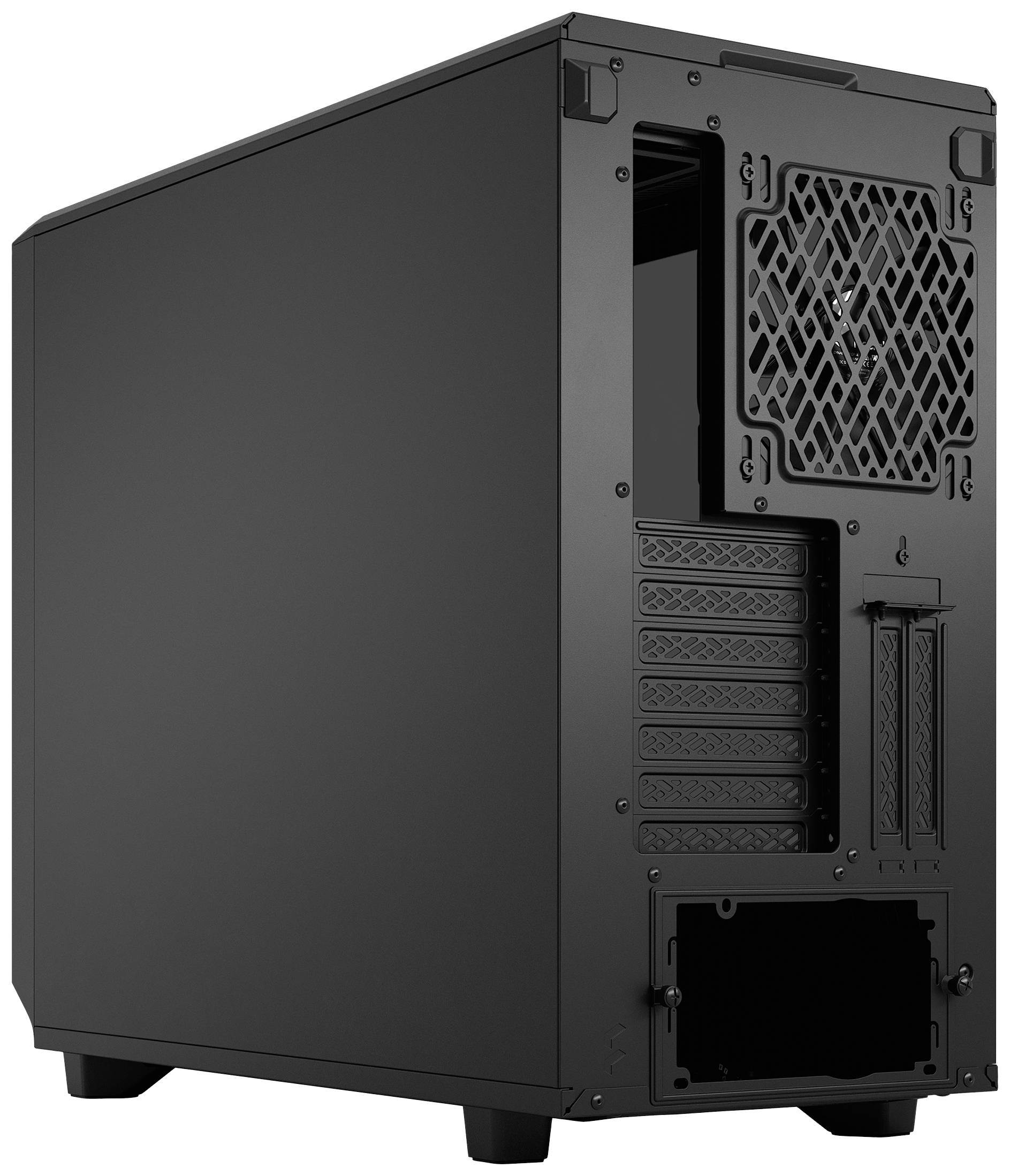

Fractal Design Meshify 2 Tower PC casing
Technical specifications
- Product type
PC casing
- Case type
Tower
- Factory colour
Black
- Interfaces (front)
USB C® (USB 3.1 2nd gen)
- 6.4 cm (2.5") internal slots
4
- 8.9 cm (3.5") internal slots
11
- 6.4cm (2.5 ") external shafts
2
- 8.9 cm (3.5") external slots
6
- Features
with hinge
- Width
240 mm
- Height
474 mm
- Depth
542 mm
- Weight
10.5 kg
- Form factor
E-ATX
- No. of USB 3.0 ports
1 x
- Wireless charging
No
- Charging method
Fast Charge
- Dim
(W x H x D) 240 x 474 x 542 mm
- Features
3 built-in fans
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- Design height
474 mm
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Keyboard layout
German, QWERTZ
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2892489 Fractal Design Meshify 2 Tower PC casing Black 3 built-in fans
Description
The Meshify 2 is the consistent enhancement of a classic and offers a distinctive design, a spacious interior and an impressive look.

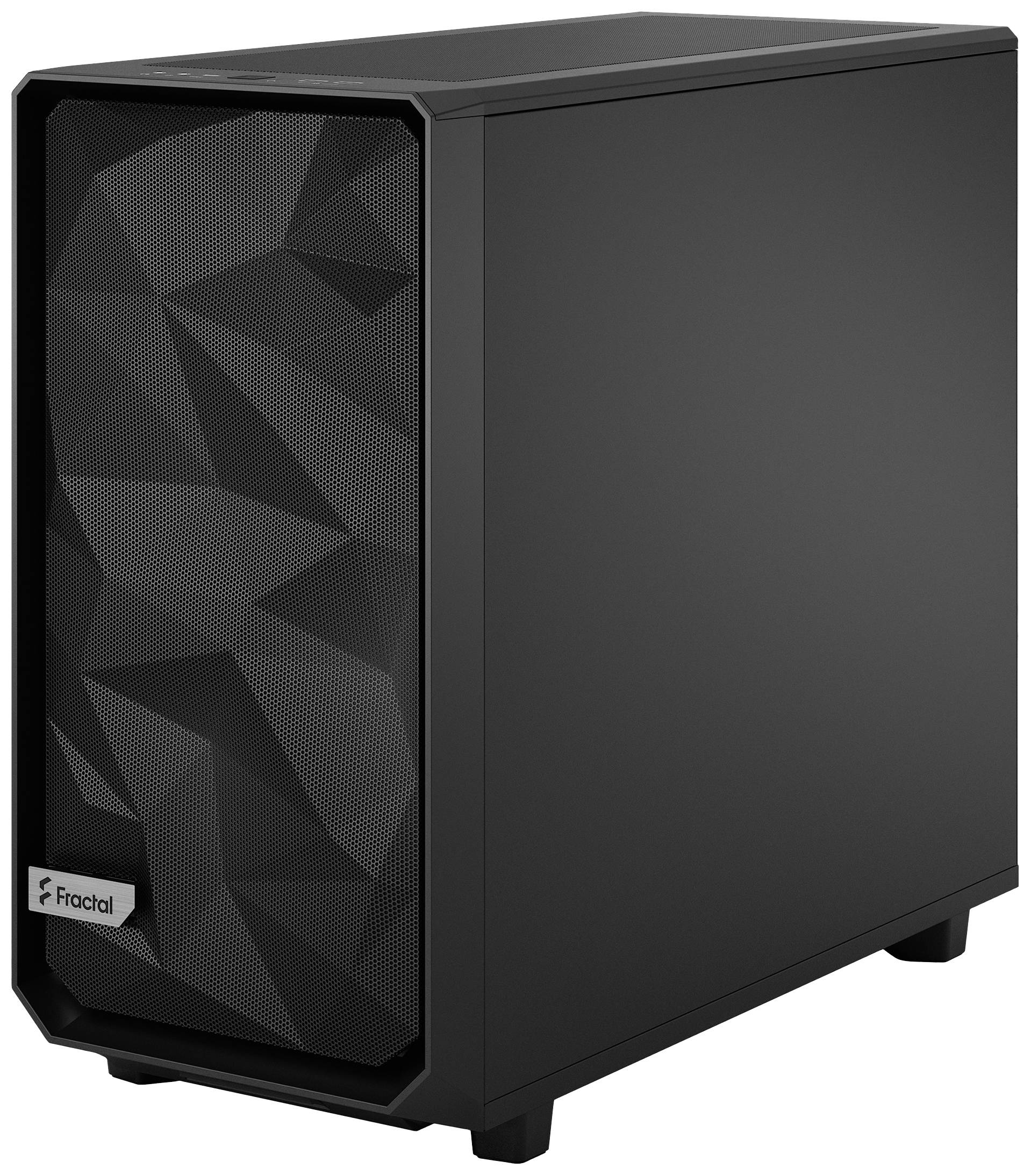

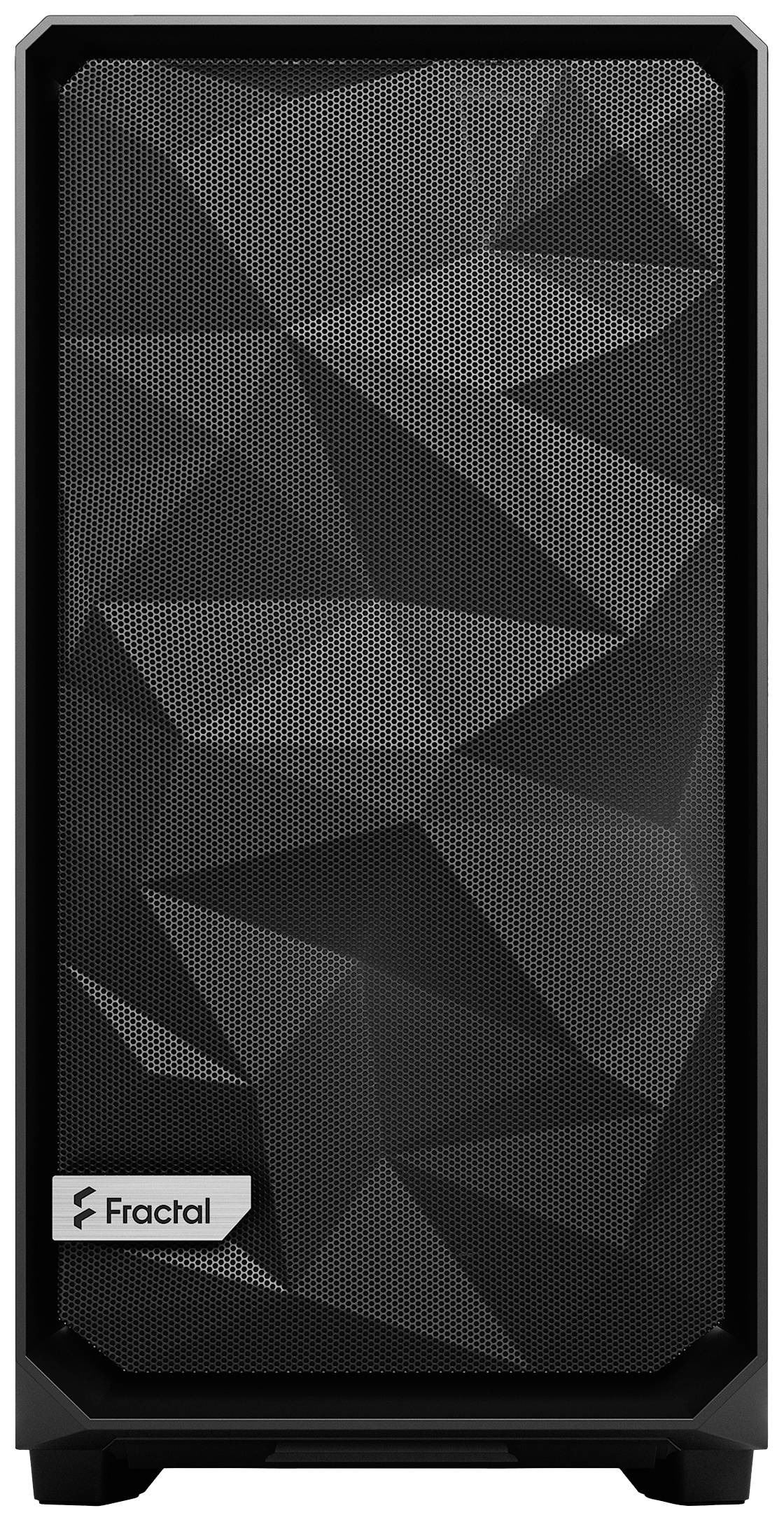

Optional front filter
- The new front filter made of nylon can be removed for additional airflow.
- The new front panel design with hinges simplifies access to the fans on the front.
- Three Dynamic X2 GP-14 fans are already pre-installed and a total of up to nine fans can be mounted.

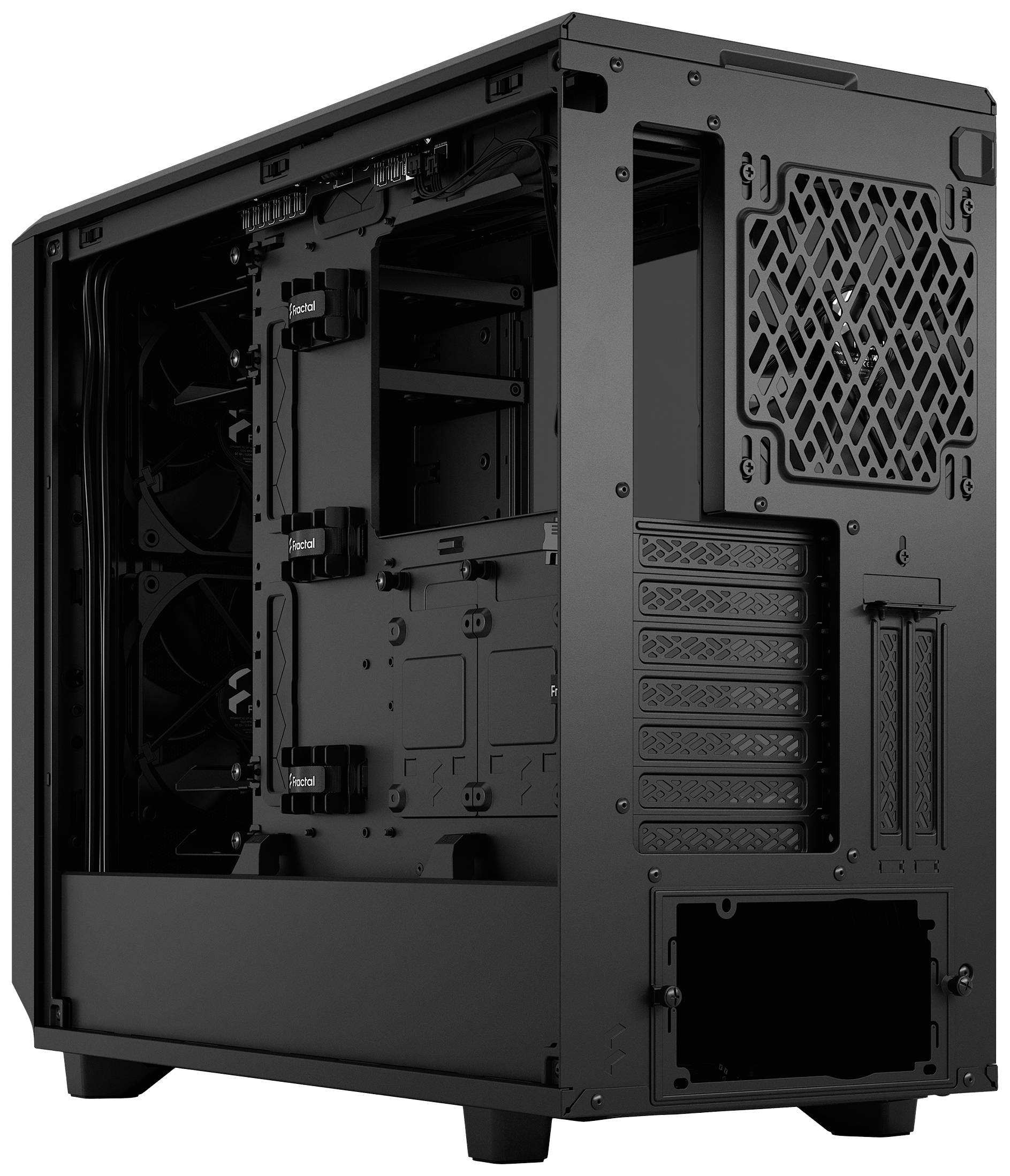

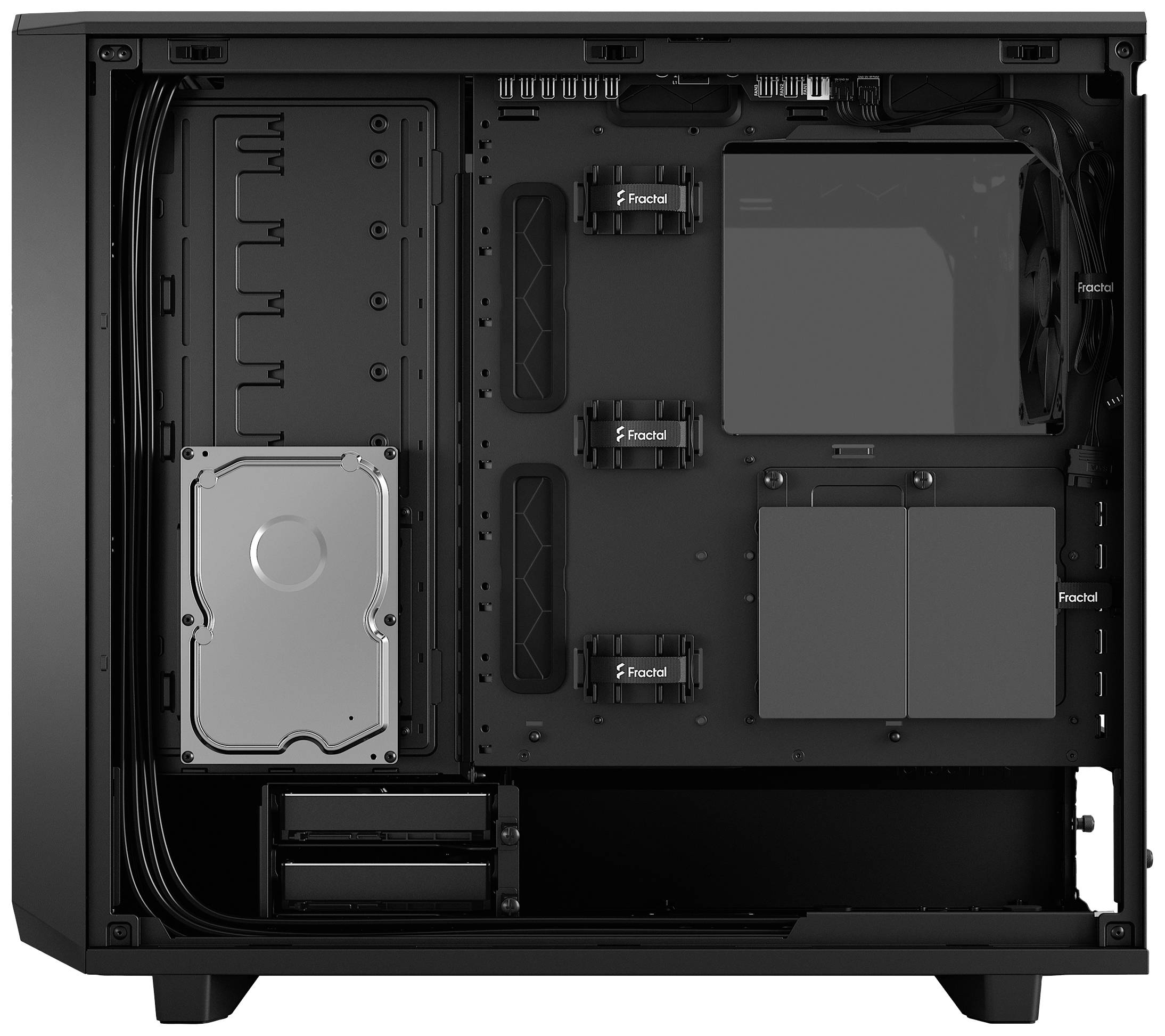

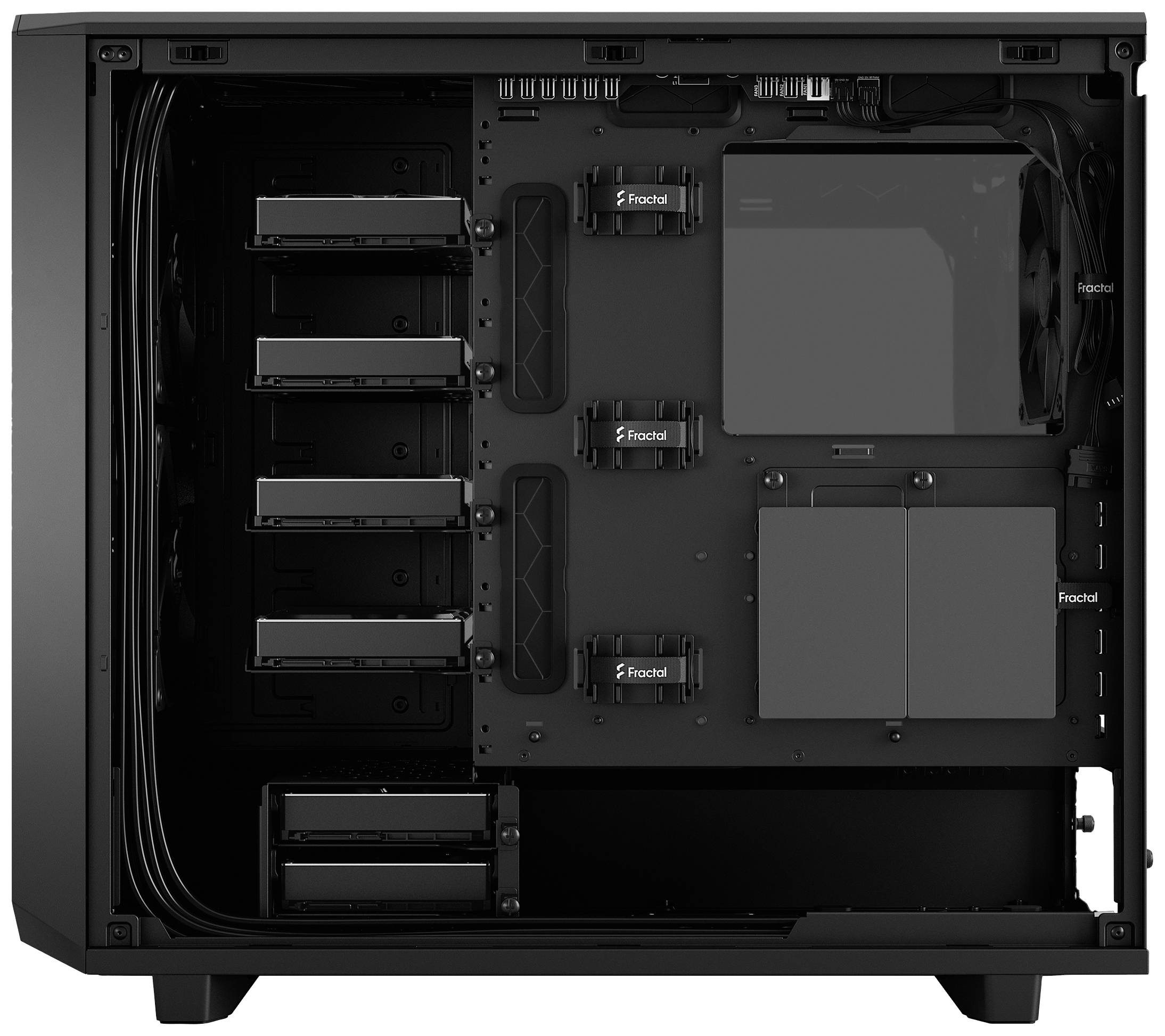

Plenty of space for memory
- The change to the storage layout enables the installation of up to 11 HDDs and 4 SSDs. (6x SSD/HDD trays, 2x SSD brackets and 1x multi-bracket included).
- The included multibrackets allow the installation of HDDs, SSDs or pumps in unused fan positions.

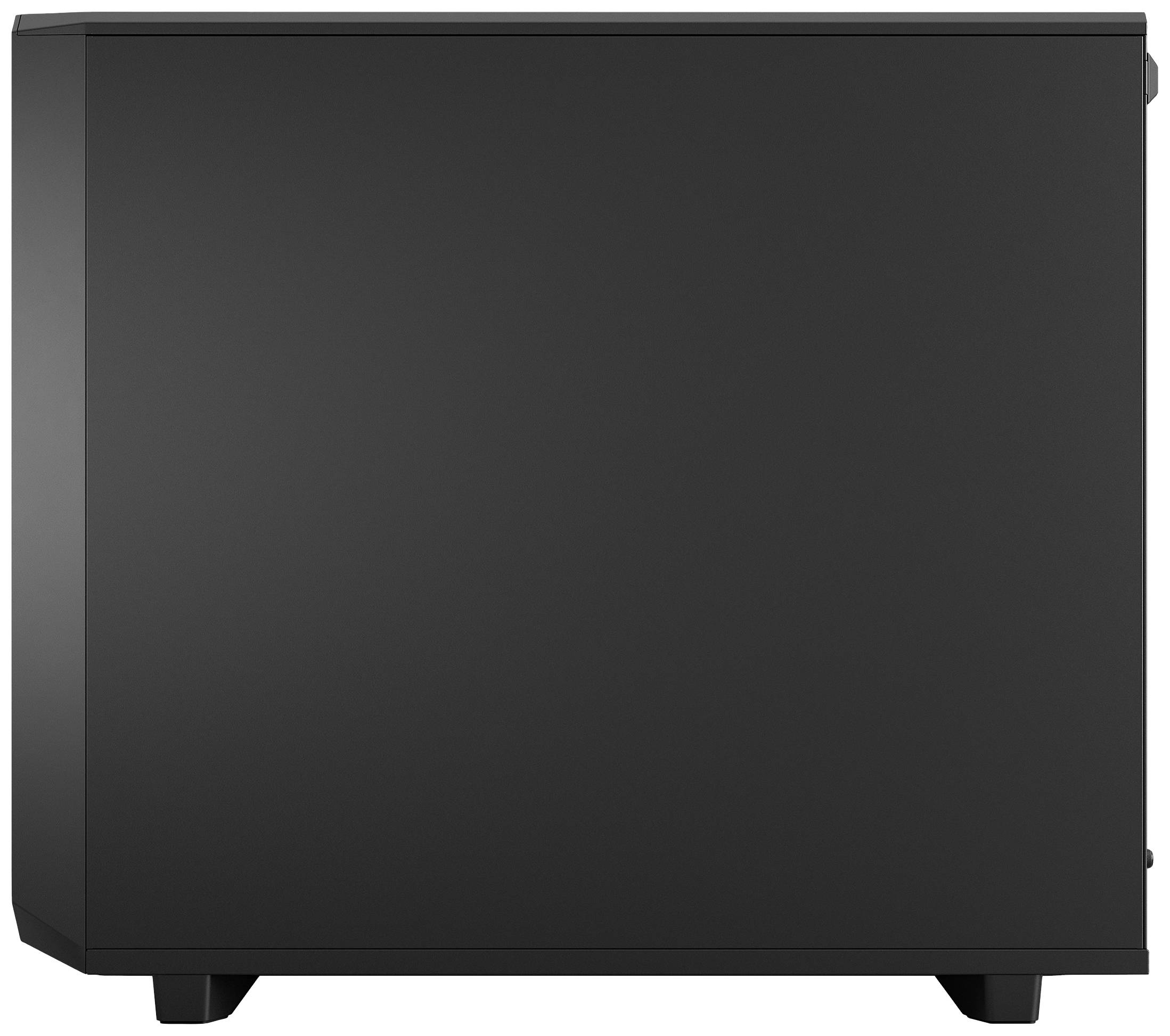

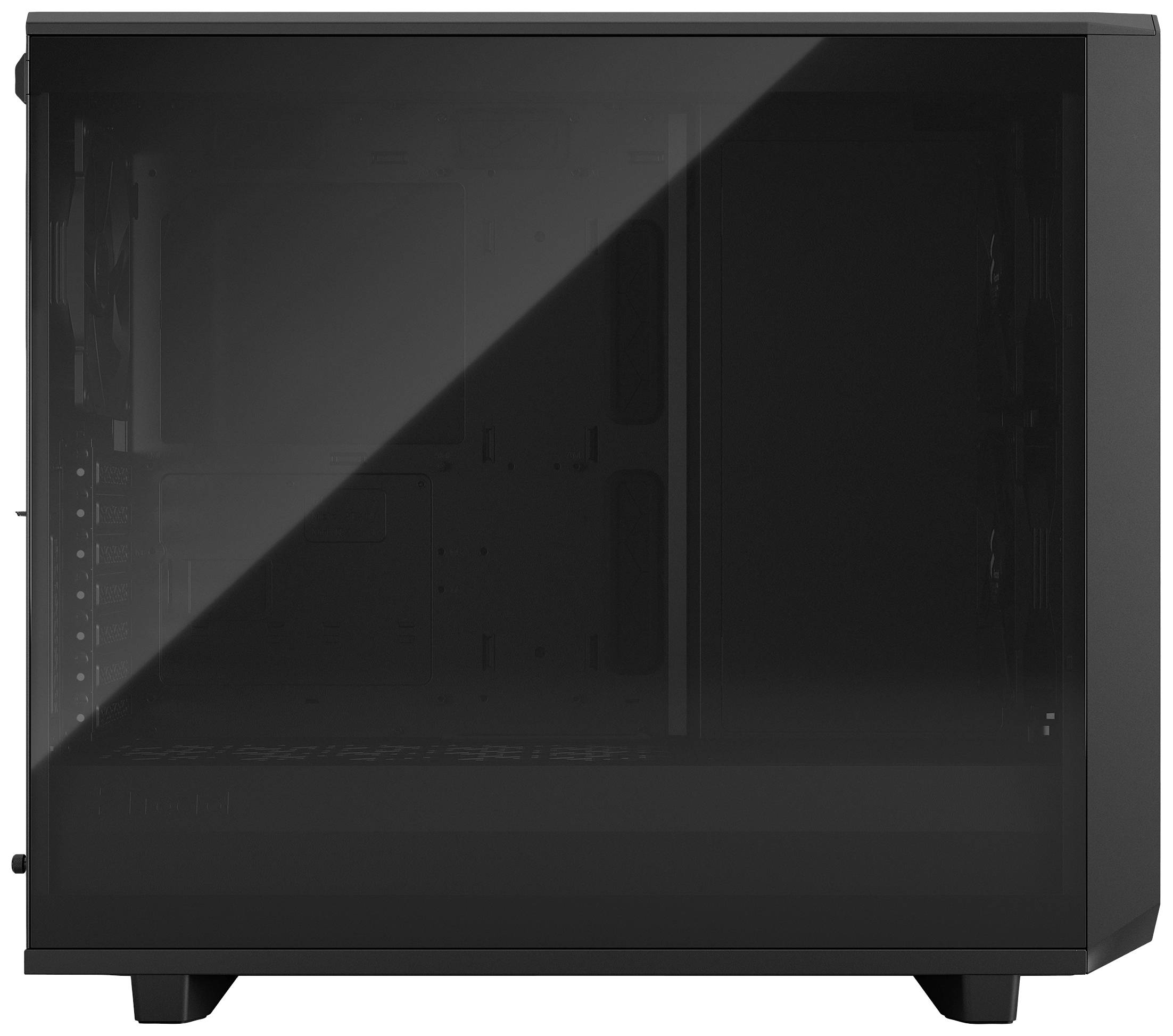

- The layout with adjustable rear wall fits easily to any build. Side panels that can be mounted without tools and open at the top side allow easy access to the interior and at the same time reduce the risk of falling out

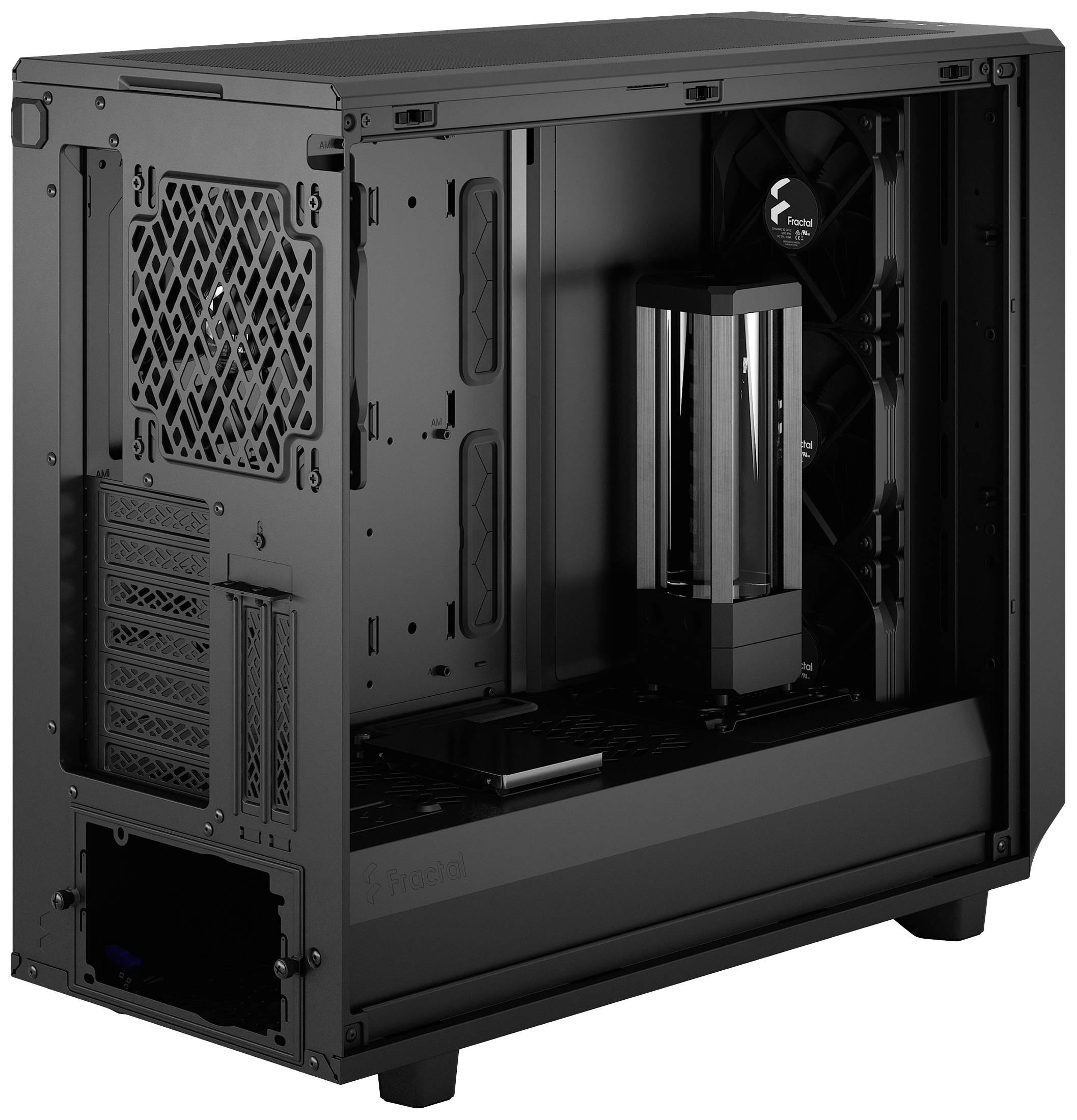

Extremely flexible
- The interior design allows the installation of custom water cooling systems with large expansion tanks and radiators up to 420 mm in length in the open layout.
- Supported in open layout radiators up to 360 mm long on the front, 420 mm on the top and 280 mm on the bottom.
- Supports radiators up to 360 mm in length on the front, 420 mm on the top and 280 mm on the floor, as well as E-ATX motherboards up to 285 mm in length.

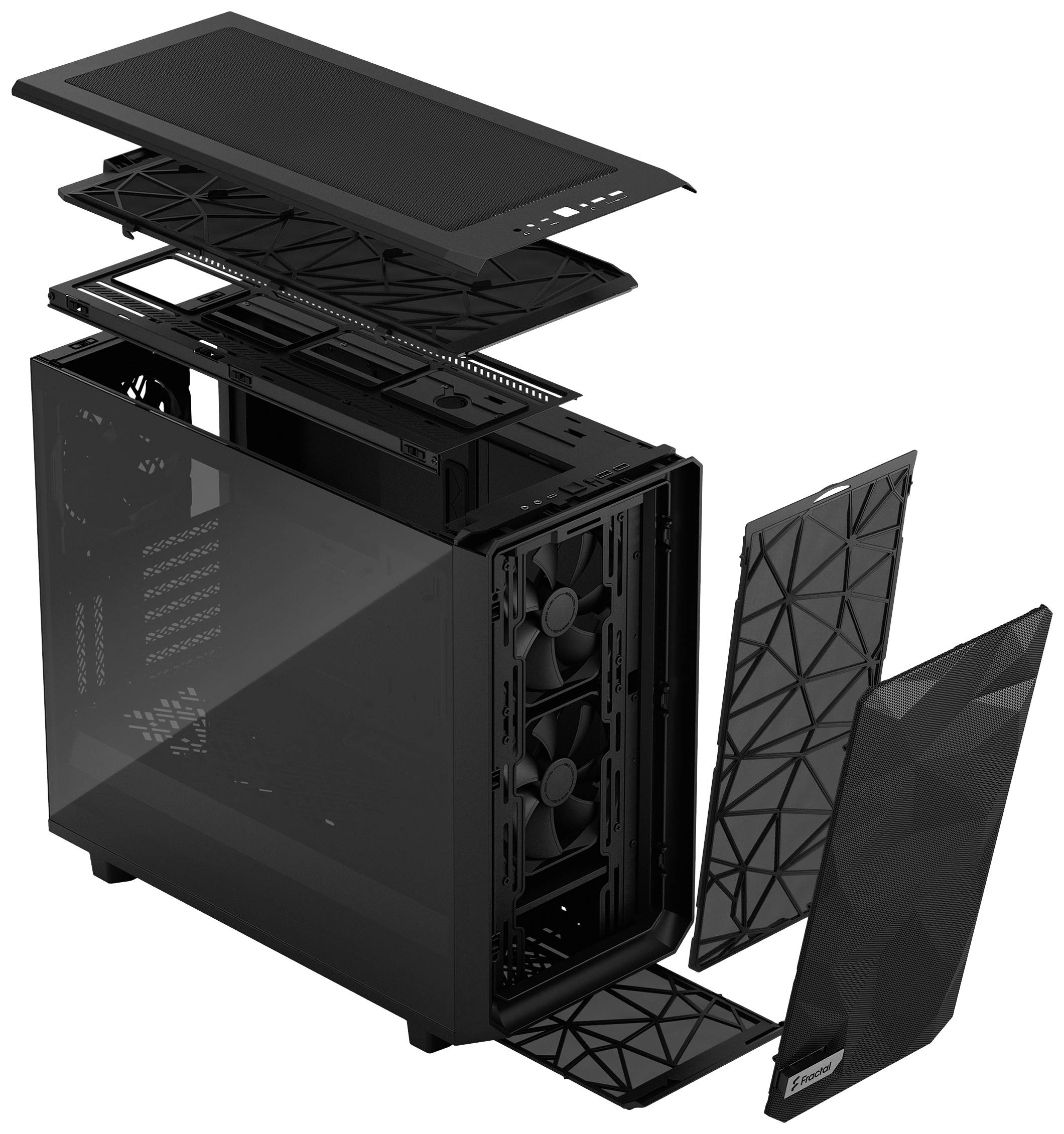

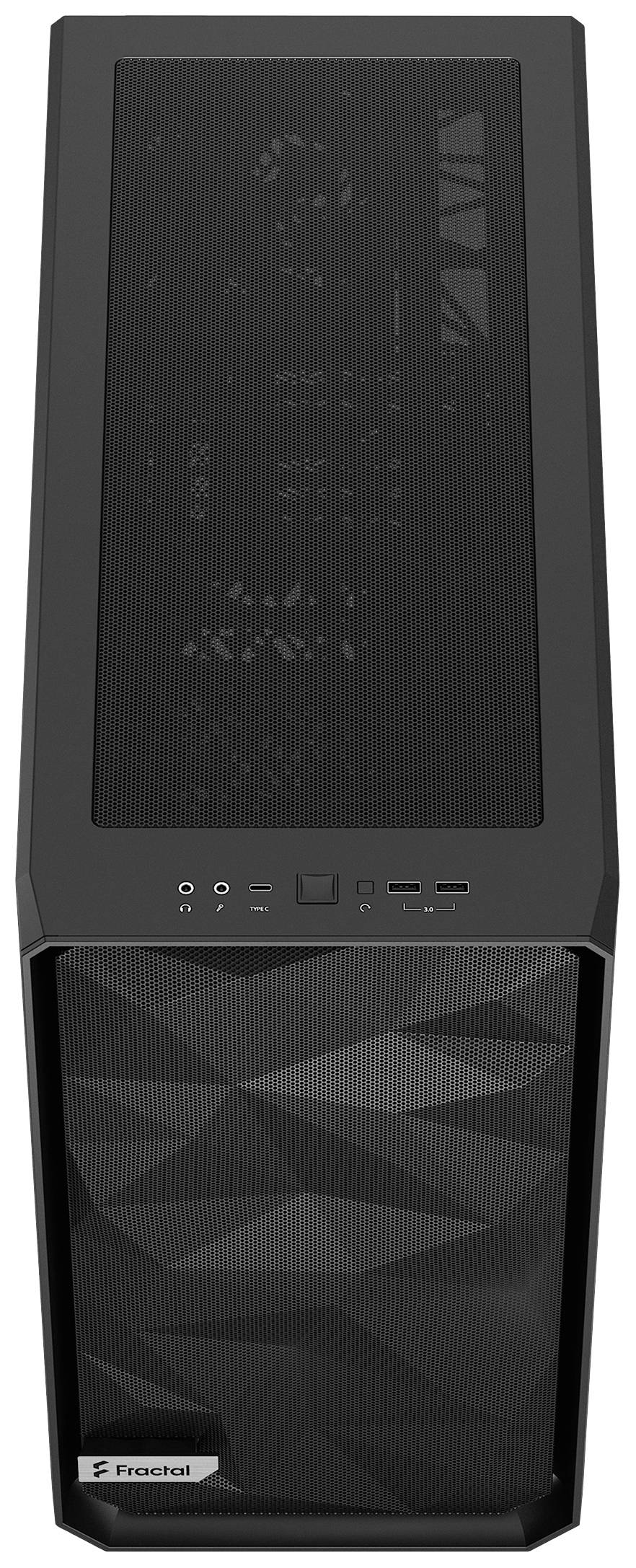

Removable top panel
The top side can be completely removed, in order to make the installation of components and the cable management even simpler.
USB 3.1 Gen 2 Type-C connection
The USB 3.1 Gen 2 Type-C connection at the front offers support for fast charging and transfer rates of up to 10 Gbps.
Nexus+ 2 fan hub
Ultra-flat Nexus+ 2 fan hub, which enables the connection of up to three PWM and six 3-pin fans and simplifies the cable management thanks to intelligent positioning
Versatile multi-bracket
The versatile multi-bracket enables the conversion of unused fan positions to holders for HDDs, SSDs, pumps or expansion tanks

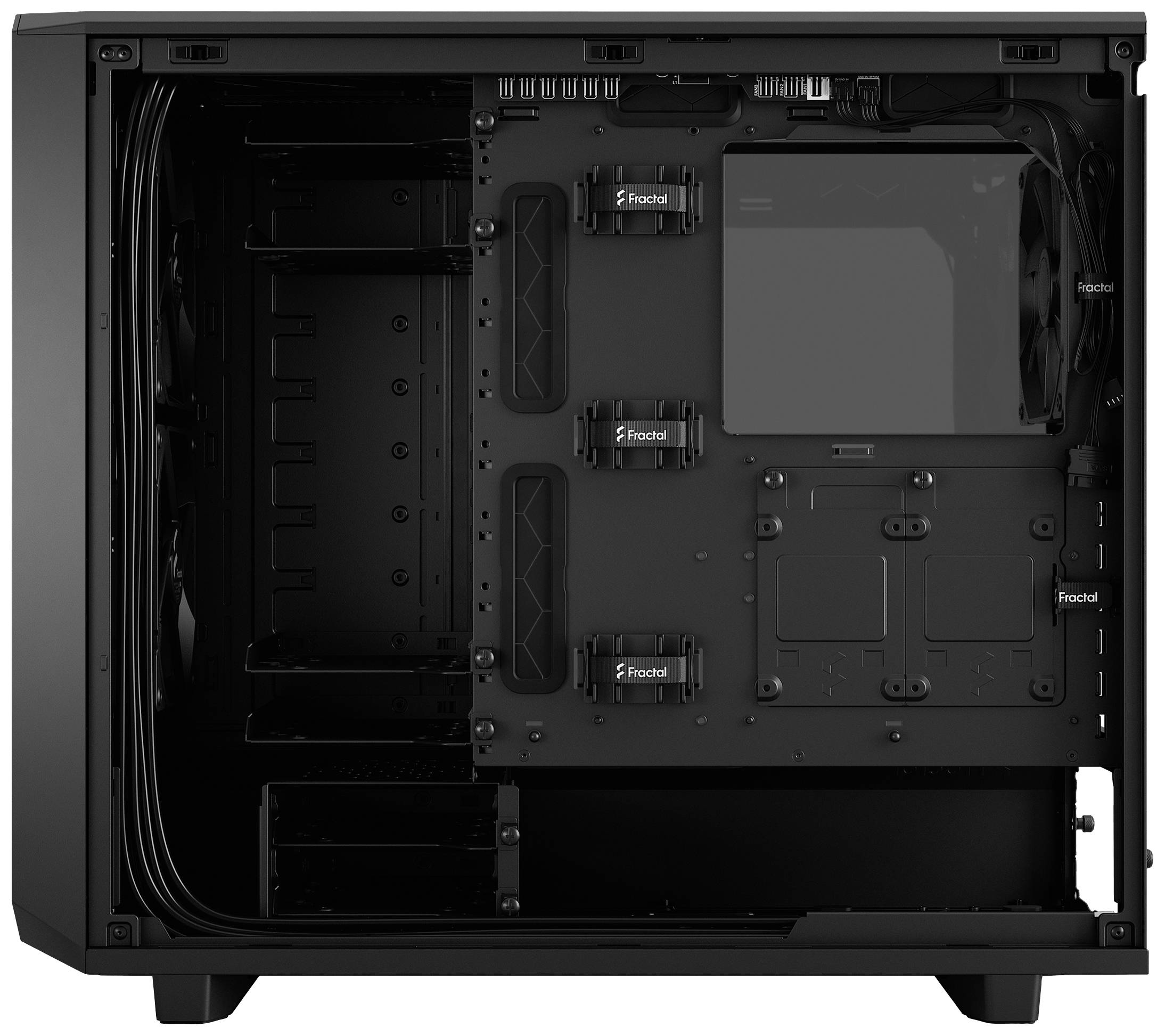

Cable management

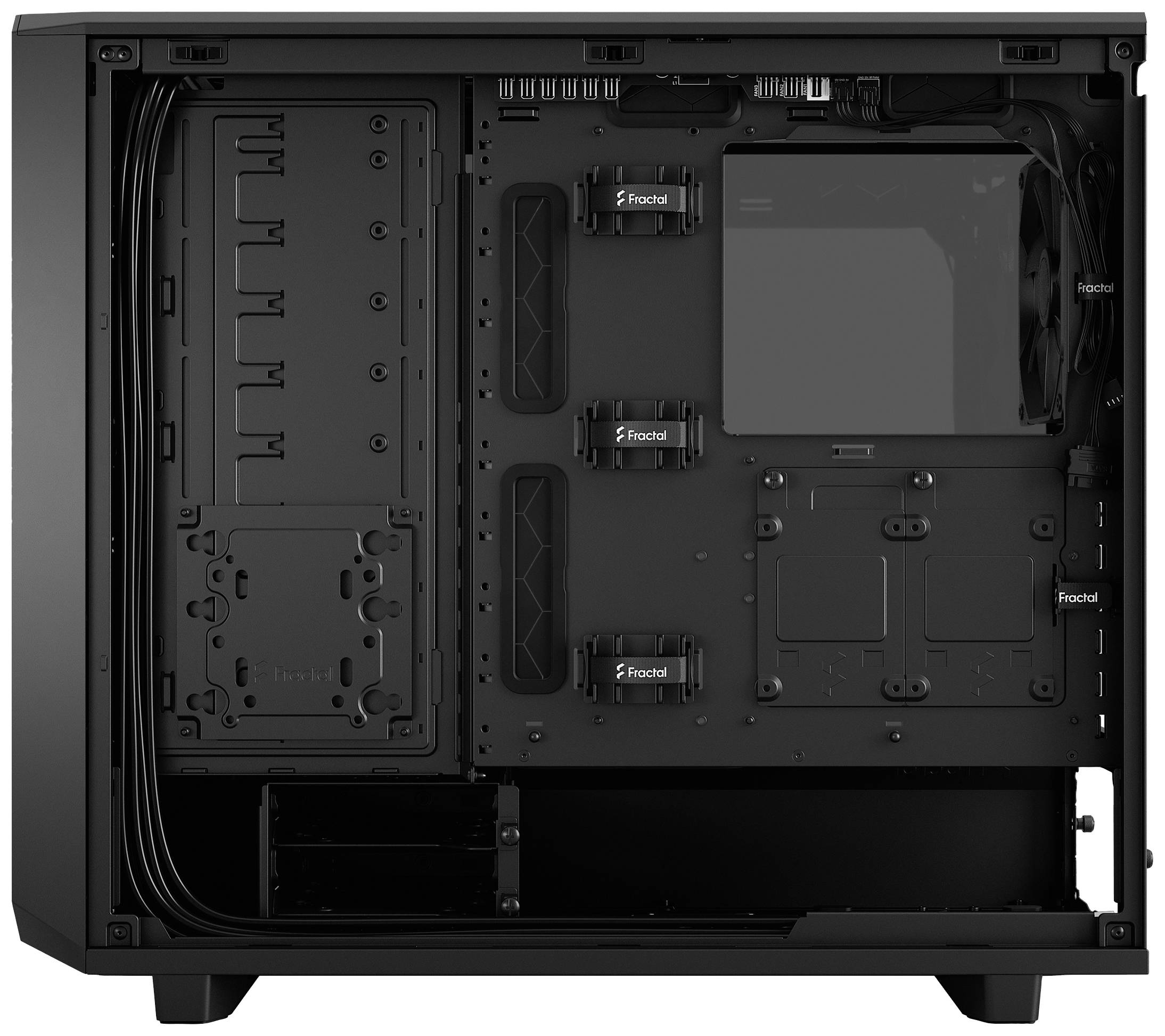

The removable PSU cable cover and integrated cable guides with straps make clean cable management behind the motherboard yet simpler
This text is machine translated.
Optional front filter
- The new front filter made of nylon can be removed for additional airflow.
- The new front panel design with hinges simplifies access to the fans on the front.
- Three Dynamic X2 GP-14 fans are already pre-installed and a total of up to nine fans can be mounted.
Plenty of space for memory
- The change to the storage layout enables the installation of up to 11 HDDs and 4 SSDs. (6x SSD/HDD trays, 2x SSD brackets and 1x multi-bracket included).
- The included multibrackets allow the installation of HDDs, SSDs or pumps in unused fan positions.
- The layout with adjustable rear wall fits easily to any build. Side panels that can be mounted without tools and open at the top side allow easy access to the interior and at the same time reduce the risk of falling out
Extremely flexible
- The interior design allows the installation of custom water cooling systems with large expansion tanks and radiators up to 420 mm in length in the open layout.
- Supported in open layout radiators up to 360 mm long on the front, 420 mm on the top and 280 mm on the bottom.
- Supports radiators up to 360 mm in length on the front, 420 mm on the top and 280 mm on the floor, as well as E-ATX motherboards up to 285 mm in length.
Removable top panel
The top side can be completely removed, in order to make the installation of components and the cable management even simpler.
USB 3.1 Gen 2 Type-C connection
The USB 3.1 Gen 2 Type-C connection at the front offers support for fast charging and transfer rates of up to 10 Gbps.
Nexus+ 2 fan hub
Ultra-flat Nexus+ 2 fan hub, which enables the connection of up to three PWM and six 3-pin fans and simplifies the cable management thanks to intelligent positioning
Versatile multi-bracket
The versatile multi-bracket enables the conversion of unused fan positions to holders for HDDs, SSDs, pumps or expansion tanks
Cable management
The removable PSU cable cover and integrated cable guides with straps make clean cable management behind the motherboard yet simpler
This text is machine translated.
Features
- Tower form factor
- Type PC
- Product color: Black. Supported power supply form factors: ATX. Installed fan (front side): 2 x 140 mm
- Diameter supported front fans: 120.140 mm
- Installed rear fans: 1x 140 mm. Width 240 mm
- Depth: 542 mm
- Height: 474 mm. Package width 542 mm
- Packaging depth 634 mm
- Packaging height 324 mm
