Fractal Design Prisma AL-18 PWM PC fan Black, White
EAN:
Part number:
Item no:

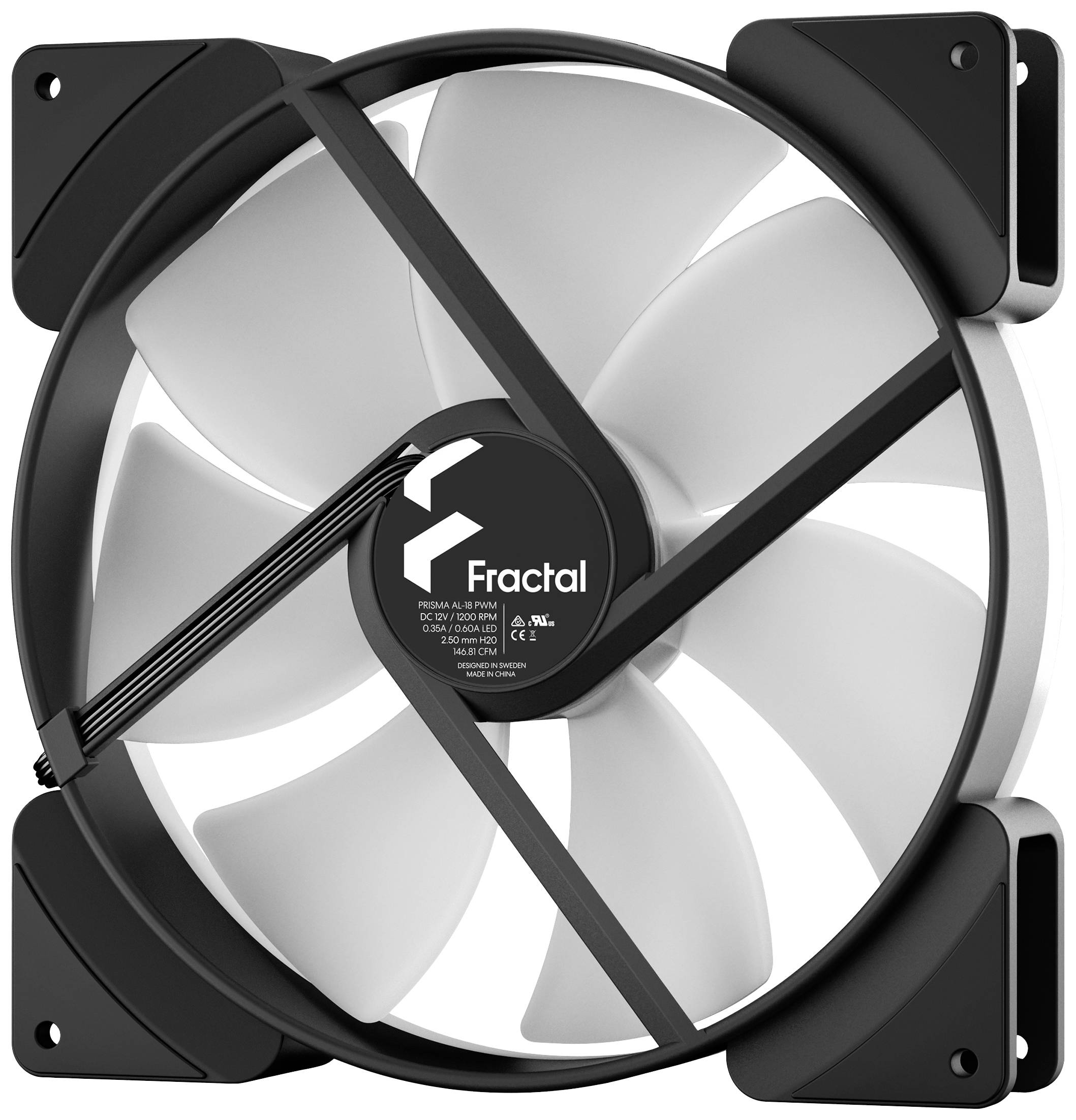

Fractal Design Prisma AL-18 PWM PC fan
Technical specifications
- Product type
PC fan
- Fan size
180 mm
- Noise emission (max.)
37.4 dB
- Noise emission
30.1 dB - 40 dB
- Rotational speed (min.)
300 U/min
- Air discharge
249.56 m³/h
- Rotational speed (max.)
1200 U/min
- Type of bearing
Plain bearing
- Connection
4-pin
- Factory colour
Black
White
- Weight
0.572
- Content
1 pc(s)
- Cable length
1 m
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2901549 Fractal Design Prisma AL-18 PWM PC fan Black, White
Description

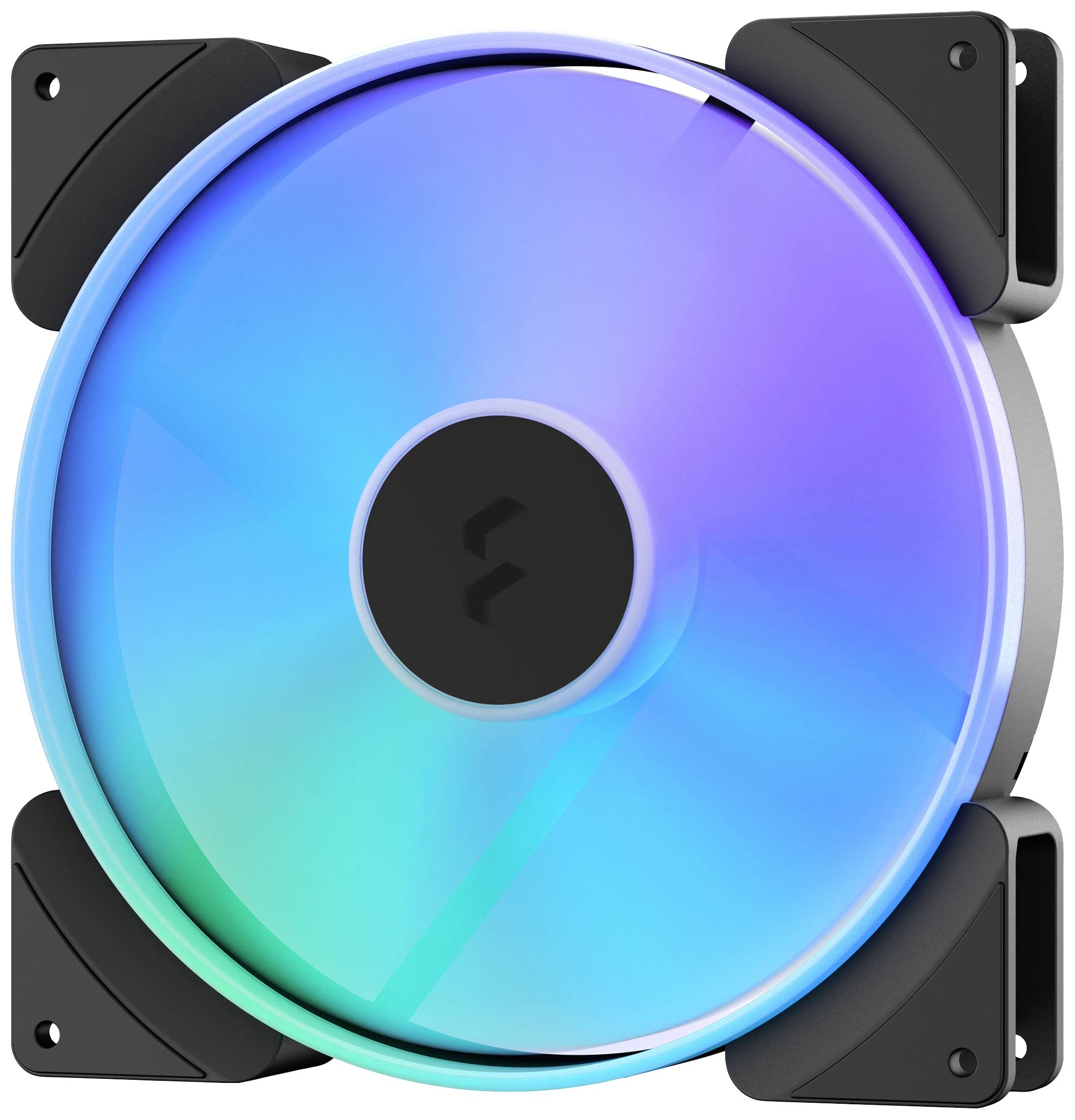

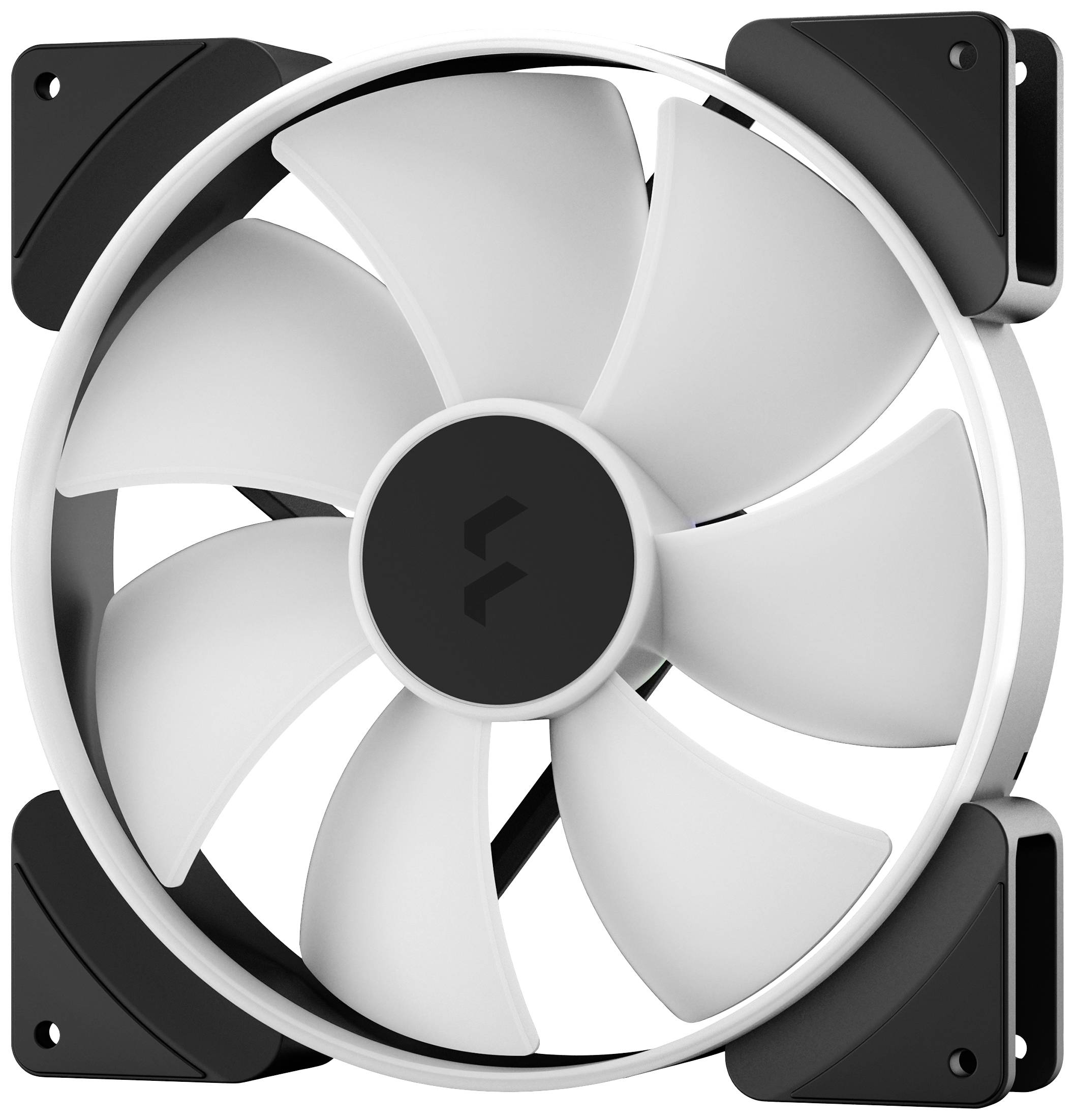

The new Prism AL-18 is a powerful 180 mm x 38 mm ARGB fan, which provides for an impressive air flow. Thanks to massive fan blades, 38 mm thickness and a wide speed range of 300-1200 RPM with PWM-control the AL-18 offers an astonishingly high air throughput in an extremely quiet operation.
PWM precision
- Ideal for radiators, thanks to PWM support with precise adjustment of fan speed between 300 and 1200 RPM
- Trip Wire technology improved efficiency and reduced volume by a special coating that causes micro-turbulence

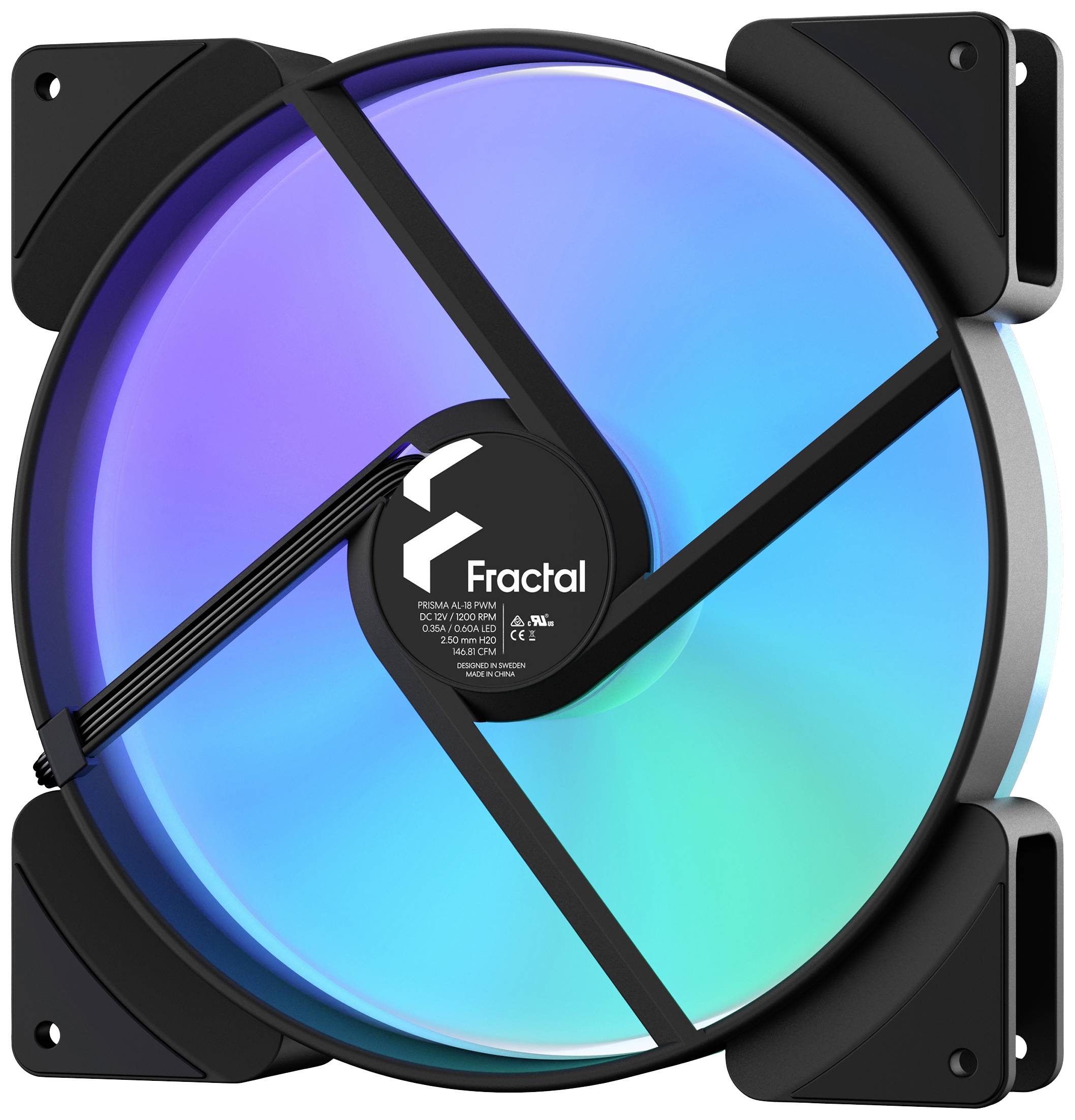

- Aerodynamic struts with embedded cables reduce turbulence
Manually controllable

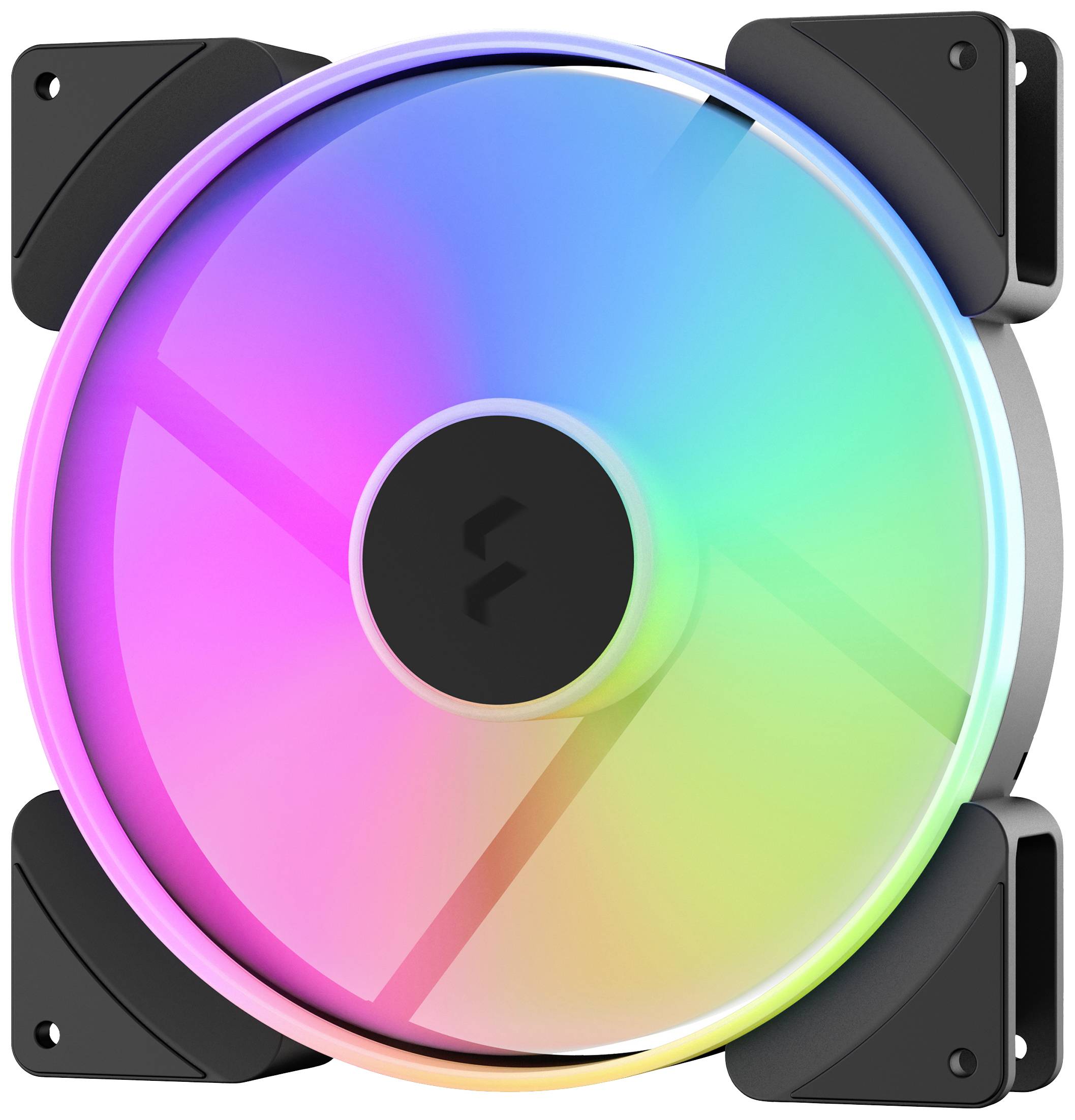

- Adjust R1 RGB controller (available separately) allows manual control of color and effects
- Elegant and discreet cables with black nylon sheath
- Can be mounted at all standard 180 mm fan positions with 165 x 165 mm hole spacing
Maximum compatibility
Asus AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer chroma support
HIGH-QUALITY LLS BEARING
High-quality LLS bearing with a service life of 90,000 hours for long-lasting reliability
QUIET OPERATION

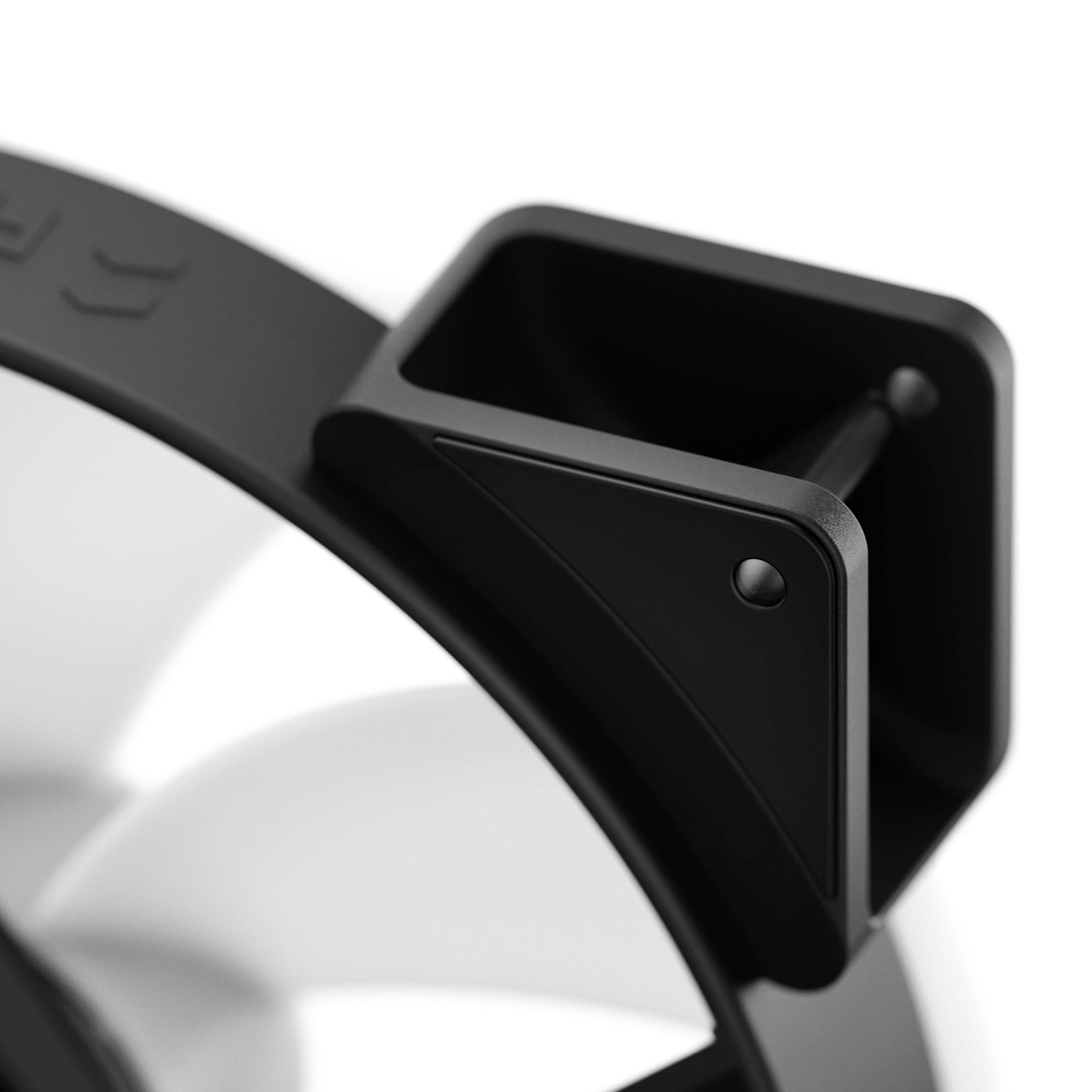

Vibration-absorbing corners made of high-quality rubber make quiet operation possible
SIMPLE TO LINK

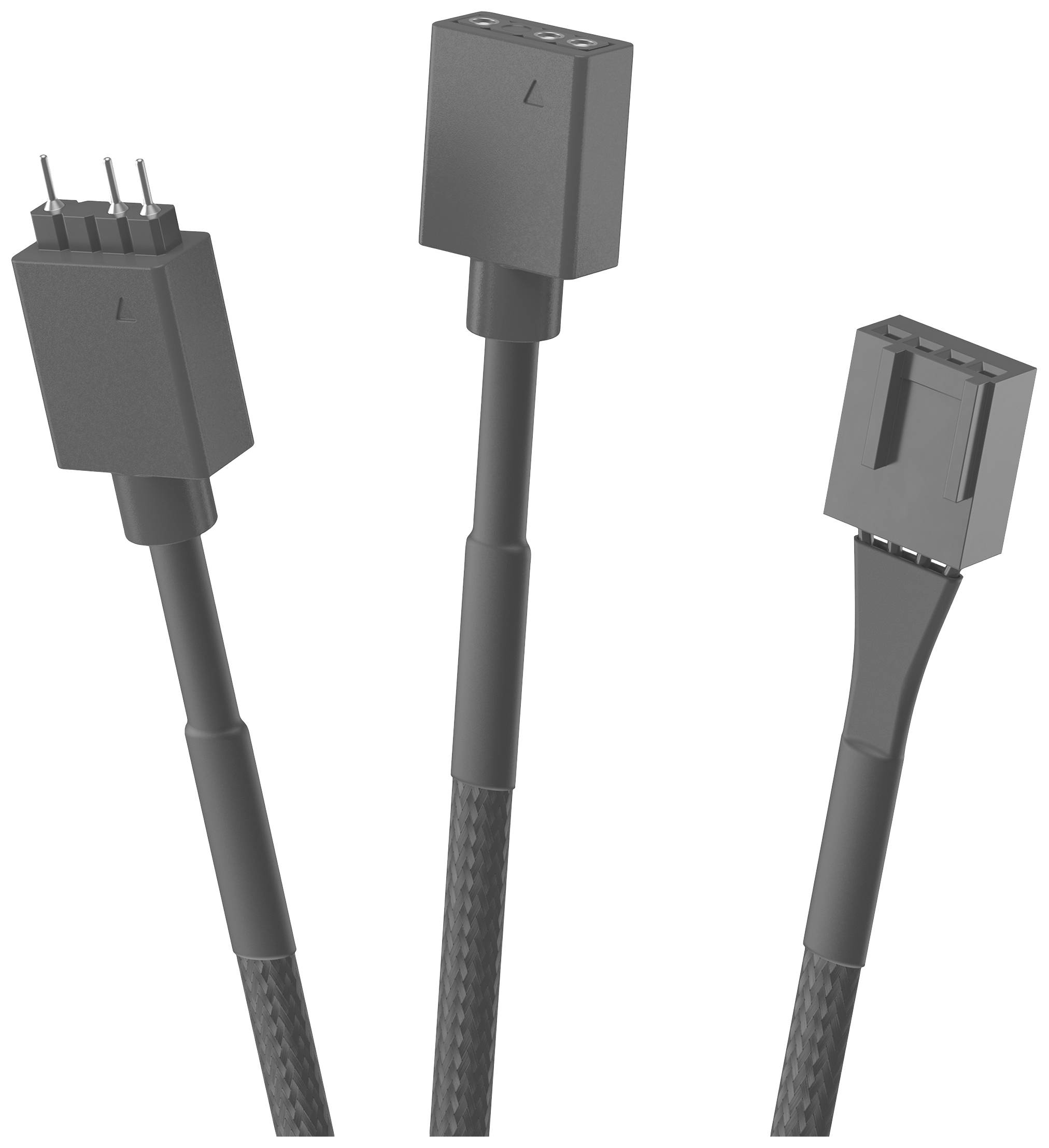

The connectable RGB cables simplify the installation and the connection of several fans
This text is machine translated.
PWM precision
- Ideal for radiators, thanks to PWM support with precise adjustment of fan speed between 300 and 1200 RPM
- Trip Wire technology improved efficiency and reduced volume by a special coating that causes micro-turbulence
- Aerodynamic struts with embedded cables reduce turbulence
Manually controllable
- Adjust R1 RGB controller (available separately) allows manual control of color and effects
- Elegant and discreet cables with black nylon sheath
- Can be mounted at all standard 180 mm fan positions with 165 x 165 mm hole spacing
Maximum compatibility
Asus AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer chroma support
HIGH-QUALITY LLS BEARING
High-quality LLS bearing with a service life of 90,000 hours for long-lasting reliability
QUIET OPERATION
Vibration-absorbing corners made of high-quality rubber make quiet operation possible
SIMPLE TO LINK
The connectable RGB cables simplify the installation and the connection of several fans
This text is machine translated.
Features
- Type: Fan
- Fan diameter 18 cm
- Rotation speed (min.): 300 RPM
- Rotation speed (max.): 1200 RPM
- Noise level (slow speed): 14.9 dB
- Noise level (high speed): 37.4 dB
- Maximum air flow: 146.8 cfm
- Air flow: 249.56 m³/h.
- Minimum air pressure 0.44 mmH2O
- Maximum air pressure 2.5 mmH2O
- Bearing type: Friction bearing. Voltage: 6 - 12 V. Product color: Black
- White
