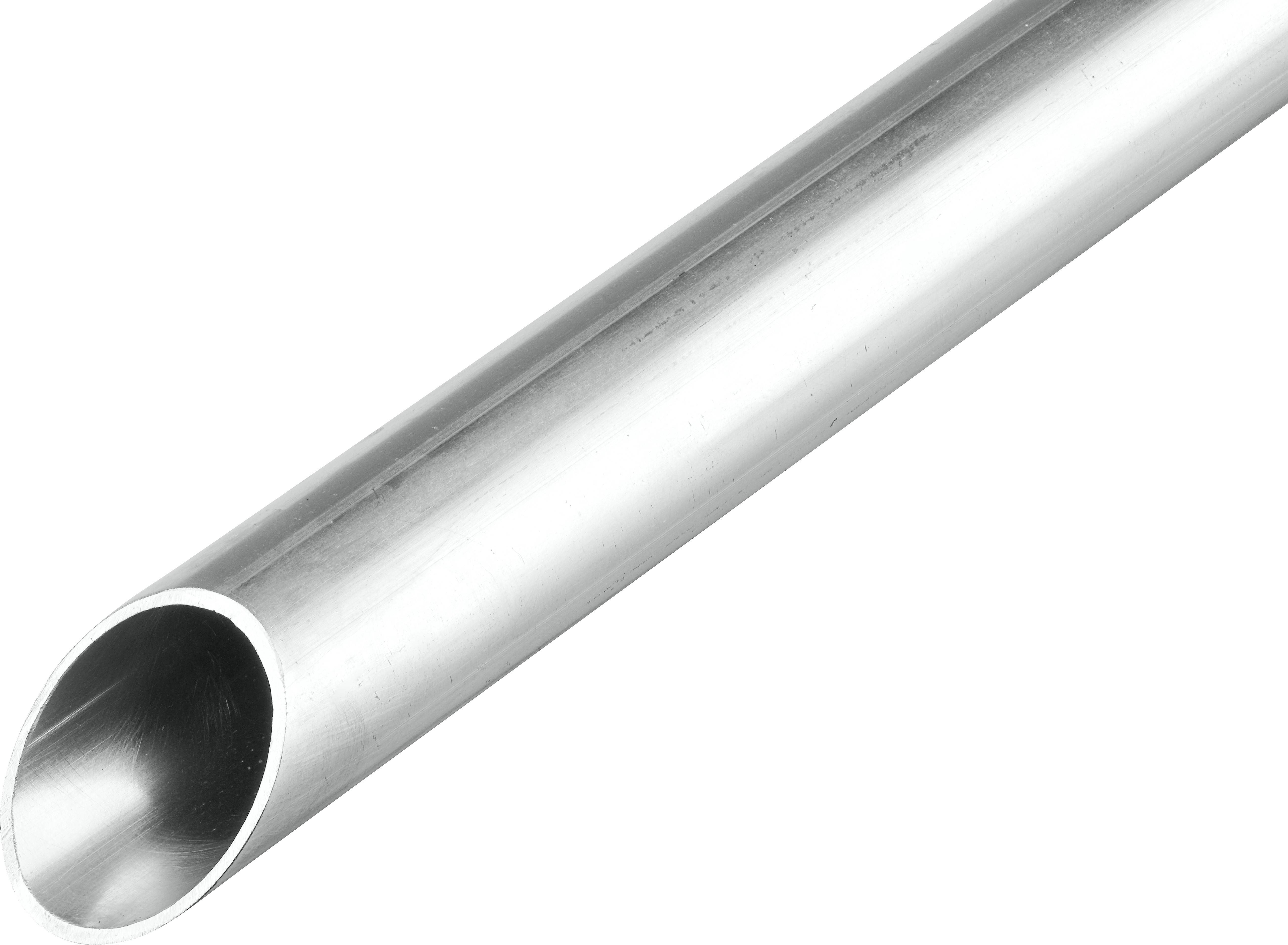

Fränkische Rohrwerke 20910016 Pipe EN16 3 m 3 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Set(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 7.00
€ 21.00
3
1 M = € 6.73
€ 20.18
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 7.00)
€ 21.00
plus VAT.
14-day return policy included
Technical specifications
- Material: Aluminium
- Material quality: Other
- Surface protection: Untreated
- Quality of the surface coating: Uncoated
- Polished surface: No.
- Surface brushed: No.
- Design: Rigid
- Connection 1: Pipe end
- Connection 2: Pipe end
- Flush mounting: Yes
- Surface mounting: Yes
- Suitable for concrete installation: No.
- Machinery and equipment installation: Yes
- Underground installation (bitumen, hot asphalt): Yes
- Underfloor installation (screed): No.
- Outdoor installation: Yes
- Installation on wood: Yes
- Suitable for hollow wall installation: Yes
- Suitable for laying in the ground: No.
- Compressive strength: Heavy (class 4)
- Interior diameter 13.5 mm
- Outer diameter: 16 mm
- Operating temperature -45..250°C
- Product type
Pipe
- Size
EN16
- Outside Ø
16 mm
- Inside diameter
13.5 mm
- Length
3 m
- Content
3 m
- Material
Aluminium
- Compressive strength
1250 N
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407379 Fränkische Rohrwerke 20910016 Pipe EN16 3 m 3 m
User & Safety Instructions
User & Safety Instructions 3407379 Fränkische Rohrwerke 20910016 Pipe EN16 3 m 3 m
Description
Aluminum plug-IT is a heavy, extruded aluminum plug. This aluminum pipe is used for high mechanical requirements and for outdoor installations. The advantages are the high compressive strength and low weight. VDE 0605 DIN EN 61386-21 Minimum pressure resistance 1250N / 5cm
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m tube
