Fränkische Rohrwerke 22110020 Pipe EN20 3 m Grey 3 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: Polyvinyl chloride (PVC)
- Halogen-free: No.
- Flame-resistant version: Yes
- Bending behavior: Rigid
- With sleeve: Yes
- Compressive strength: Light (class 2)
- Impact resistance: Light (class 2)
- Flush mounting: Yes
- Surface mounting: Yes
- Suitable for installation on wood: Yes
- Suitable for hollow wall installation: Yes
- Suitable for concrete installation: No.
- Machines and system installation: No.
- Underfloor installation (screed): Yes
- Outdoor installation: No.
- Suitable for laying in the ground: No.
- Interior diameter 18.3 mm
- Outer diameter: 20 mm
- Operating temperature 5 °C .60 °C
- High-gloss smooth inner layer: No.
- Colour: grey
- RAL number: 7035
- Product type
Pipe
- Size
EN20
- Outside Ø
20 mm
- Inside diameter
18.3 mm
- Length
3 m
- Content
3 m
- Material
Polyvinyl chloride
- Factory colour
Grey
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407190 Fränkische Rohrwerke 22110020 Pipe EN20 3 m Grey 3 m
User & Safety Instructions
User & Safety Instructions 3407190 Fränkische Rohrwerke 22110020 Pipe EN20 3 m Grey 3 m
Description

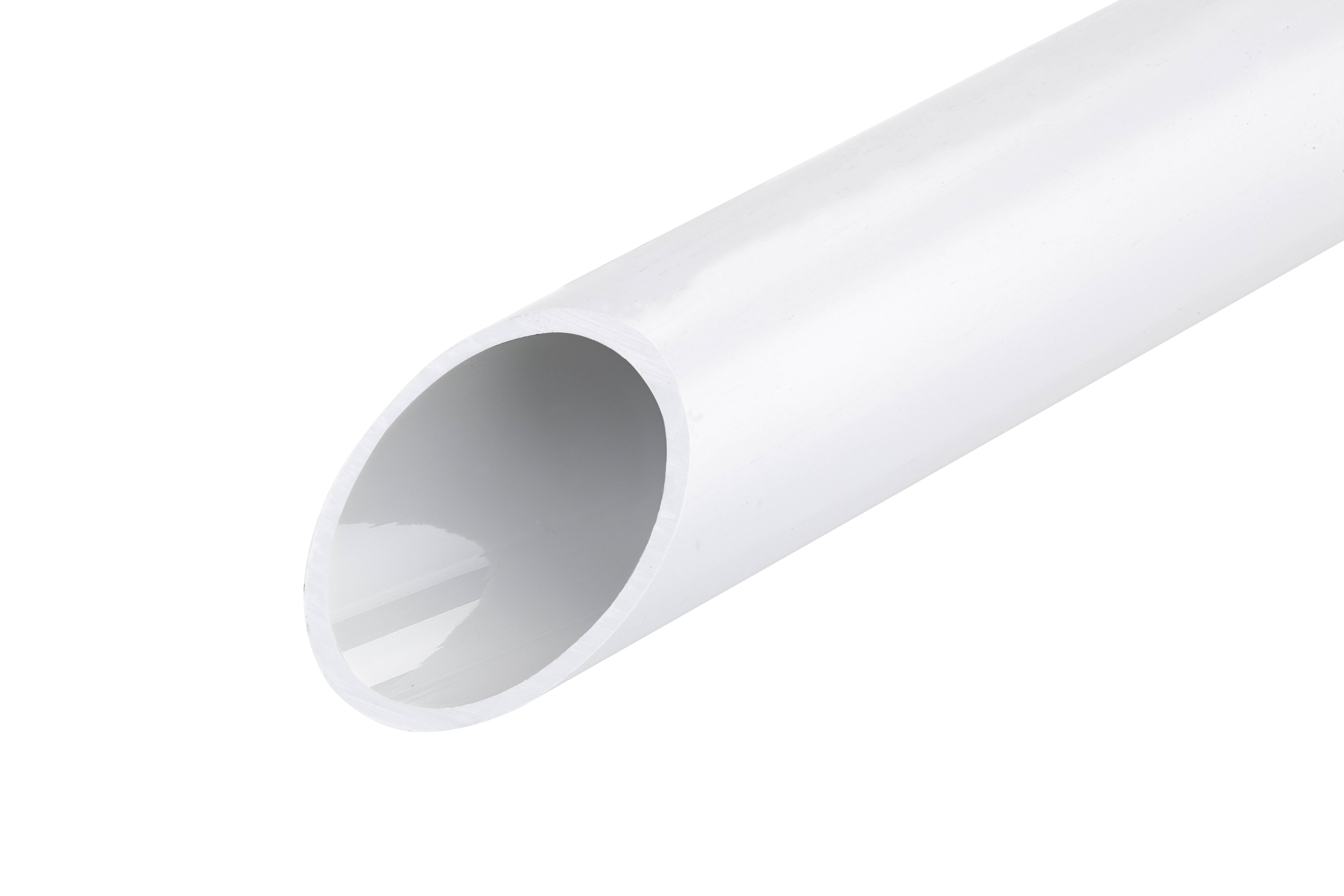

ISOFIX-EL-F is a light plastic tube made of PVC, gray (RAL7035), non-flame spreading, in bars to 3M, with sleeve molded on one side. This plastic rod pipe is used for surface installation, for slight pressure requirements and mechanical strength.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m tube
