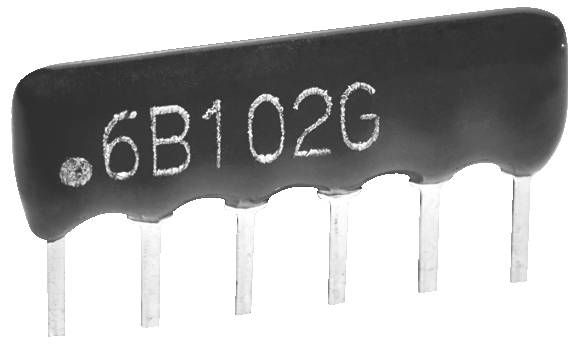

Frei RNLB08G0332B0E Resistor ladder 3.3 kΩ THT 1 pc(s)
Part number:
Item no:
Product type
Resistor ladder
Type
THT
Resistance
3.3 kΩ
Tolerance ±
5 %
CS
2.54 mm
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- Series RNY
- Delivery form: Loose
- Resistance tolerance: ±5 %
- Rated output: 0.2 W
- Max. OPERATING VOLTAGE (DC) 100 V DC
- Max. OPERATING VOLTAGE (AC) 100 V AC
- Temperature coefficient, typ.: 100 ppm/°
- Number of resistors: 4
- Number of pins: 8
- Product type
Resistor ladder
- Type
THT
- Resistance
3.3 kΩ
- Tolerance ±
5 %
- CS
2.54 mm
- Length
20.4 mm
- Width
2.5 mm
- Height
5.1 mm
- Content
1 pc(s)
- Dim
(L x W x H) 20.4 x 2.5 x 5.1 mm
- Type
RNLB08G0332B0E
- Mounting type
PCB mount
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
55 °C
Documents & Downloads
Datasheet
Datasheet 3464634 Frei RNLB08G0332B0E Resistor ladder 3.3 kΩ THT 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464634 Frei RNLB08G0332B0E Resistor ladder 3.3 kΩ THT 1 pc(s)
Description
Thick film resistor networks Y series 1/
This text is machine translated.
This text is machine translated.
Features
- • Series connection
- • High stability
- • Single inLine
