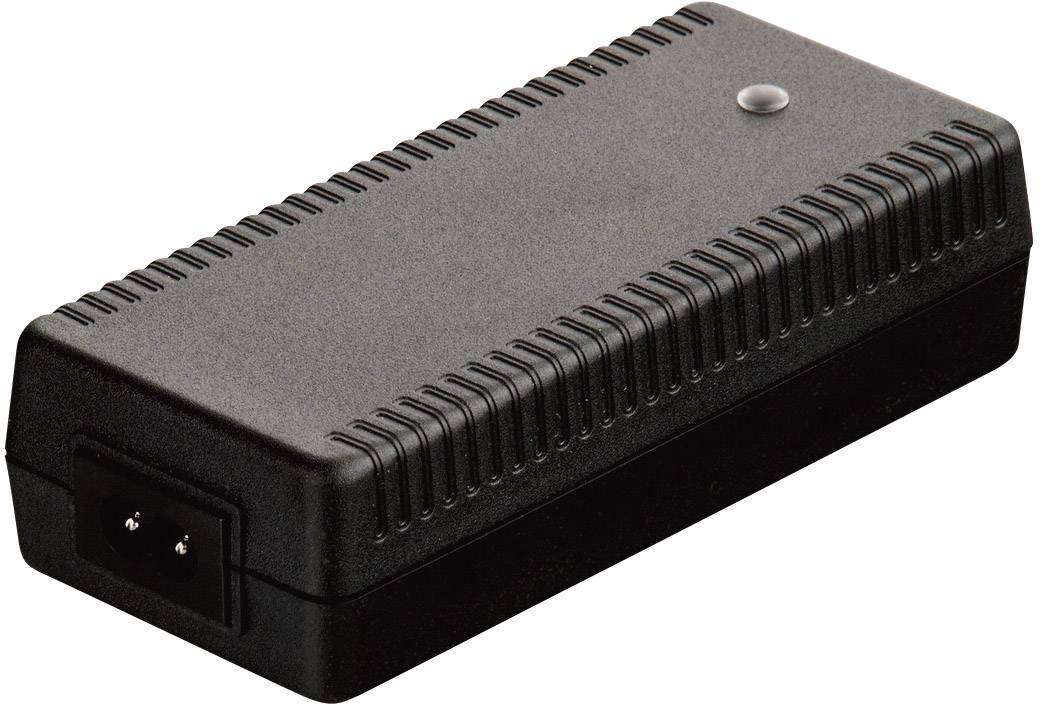

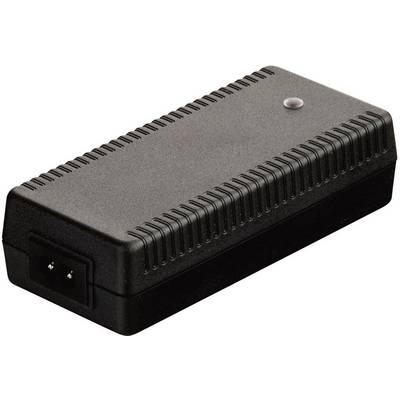

Friwo 1890649 Bench PSU (fixed voltage) 5 V DC 5 A 25 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Total (€ 72.26 / piece)
€
Highlights & Details
Power supply DT 50 Medical
- Medical grade; compliant to EN 60601
- Friwo order no. 1890649
- Output: , 5A, via
- Input: 100 - 240V AC via IEC C8 Socket (IEC 320)
- Technology: Switched Mode
- EuP Step 2
Technical specifications
- Product type
Bench PSU (fixed voltage)
- Used at
Mains socket
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Output
Universal connector for DC plugs
- Output voltage
5 V DC
- Input voltage
115 V AC
230 V AC
- No. of outputs
1 x
- Type
Bench power supply unit
- Inputs
IEC C8 Socket (IEC 320)
- EuP Status
Step 2
- Weight
312 g
25 W
- Type
Switched Mode
- Width
60 mm
- Height
38.1 mm
- Type
FW7405M
- Depth
130 mm
- Output rating
25 W
- Output current (details)
5 A
- Input voltage
100 - 240 V AC
Documents & Downloads
Datasheet
Datasheet 512888 Friwo 1890649 Bench PSU (fixed voltage) 5 V DC 5 A 25 W
Description
Universal power supply for worldwide use. International use through the connection of different power lines.
This text is machine translated.
This text is machine translated.
Features
- Universal power supply for worldwide use
- Emc Meets EN 60601-1-2: 12/2007
- Surrounding temperature: 0 to +40 °C
- 1.83 m connection cable with universal connector for DC plugs.
Scope of delivery
- Power supply with EURO-power cable
- 5.5 x 2.1 x 11.5 mm and 5.5 x 2.5 x 11.5 mm.
