Frolyt E-KR3018 Electrolytic capacitor Radial lead 5 mm 47 µF 40 V (Ø x L) 10 mm x 12.7 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
47 µF
Nominal voltage
40 V
CS
5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.71
10
8% = € 0.06
€ 0.65
25
11% = € 0.08
€ 0.63
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.71 / piece)
€ 0.71
plus VAT.
14-day return policy included
Highlights & Details
Electrolytic capacitor, 47 µF, 40 V (DC), -10/+50 %, radial, RM 5 mm, Ø 10 mm
Our service for you
Technical specifications
- Tolerance -10/+50 %
- ESR (equivalent series resistance) 2.71 Ω
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
5 mm

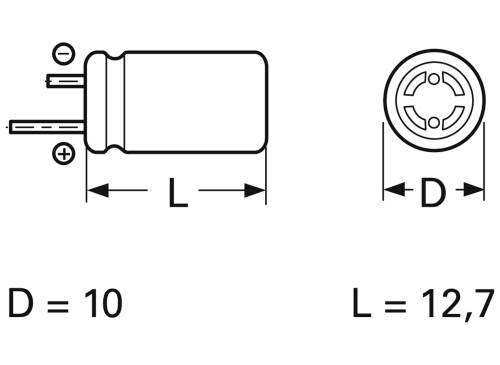

- Dim
(Ø x L) 10 mm x 12.7 mm
- Capacity (elec.)
47 µF
- Nominal voltage
40 V
- (Ø)
10 mm
- Content
1 pc(s)
- Length
12.7 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
E-KR3018
Documents & Downloads
Datasheet
Datasheet 3046368 Frolyt E-KR3018 Electrolytic capacitor Radial lead 5 mm 47 µF 40 V (Ø x L) 10 mm x 12.7 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046368 Frolyt E-KR3018 Electrolytic capacitor Radial lead 5 mm 47 µF 40 V (Ø x L) 10 mm x 12.7 mm 1 pc(s)
Description
Electrolytic capacitor in aluminum housing with insulating coating type FET ECR. With low impedance (Z) and one-sided wire connections For vertical mounting on circuit boards, according to DIN IEC 60384-1 With nominal voltage 40 VDC.
