Frolyt E-KS3092 Electrolytic capacitor Radial lead 5 mm 1000 µF 16 V 20 % (Ø x L) 10 mm x 21 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
1000 µF
Nominal voltage
16 V
CS
5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.67
10
8% = € 0.13
€ 1.54
25
11% = € 0.18
€ 1.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.67 / piece)
€ 1.67
plus VAT.
14-day return policy included
Highlights & Details
Electrolytic capacitor, 1000 µF, 16 V (DC), ±20 %, radial, RM 5 mm, Ø 10 mm
Our service for you
Technical specifications
- ESR (equivalent series resistance) 250 mΩ
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
5 mm
- Dim

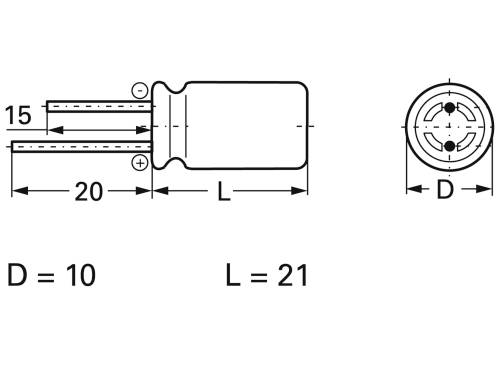

(Ø x L) 10 mm x 21 mm
- Capacity (elec.)
1000 µF
- Nominal voltage
16 V
- Tolerance ±
20 %
- (Ø)
10 mm
- Content
1 pc(s)
- Length
21 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
E-KS3092
Documents & Downloads
Datasheet
Datasheet 3046258 Frolyt E-KS3092 Electrolytic capacitor Radial lead 5 mm 1000 µF 16 V 20 % (Ø x L) 10 mm x 21 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046258 Frolyt E-KS3092 Electrolytic capacitor Radial lead 5 mm 1000 µF 16 V 20 % (Ø x L) 10 mm x 21 mm 1 pc(s)
Description
Electrolytic capacitor in aluminum housing with insulating sheath type Flyt EKS. With one-sided wire connections For vertical mounting in printed circuits, according to DIN IEC 60384-1 With nominal voltage 16 VDC.
