Frolyt E-KS3222 Electrolytic capacitor Radial lead 2.5 mm 10 µF 50 V 20 % (Ø x L) 5.5 mm x 12 mm 1 pc(s)
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
10 µF
Nominal voltage
50 V
CS
2.5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.25
10
8% = € 0.10
€ 1.15
25
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.25 / piece)
€ 1.25
plus VAT.
14-day return policy included
Highlights & Details
Electrolytic capacitor, 10 µF, 50 V (DC), ±20 %, radial, RM 2.5 mm, Ø 5.5 mm
Our service for you
Technical specifications
- ESR (equivalent series resistance) 15.92 Ω
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
2.5 mm
- Dim

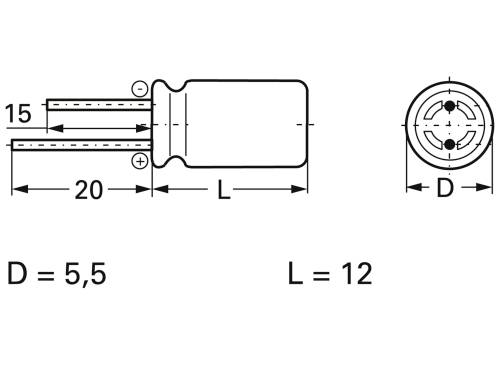

(Ø x L) 5.5 mm x 12 mm
- Capacity (elec.)
10 µF
- Nominal voltage
50 V
- Tolerance ±
20 %
- (Ø)
5.5 mm
- Content
1 pc(s)
- Length
12 mm
- RoHS-compliant
Yes
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Type
E-KS3222
Documents & Downloads
Datasheet
Datasheet 3046277 Frolyt E-KS3222 Electrolytic capacitor Radial lead 2.5 mm 10 µF 50 V 20 % (Ø x L) 5.5 mm x 12 mm 1 pc(s)
Description
Electrolytic capacitor in aluminum housing with insulating sheath type Flyt EKS. With one-sided wire connections For vertical mounting in printed circuits, according to DIN IEC 60384-1 With nominal voltage 50 VDC.
