Frolyt E-KS3565 Electrolytic capacitor Radial lead 7.5 mm 4700 µF 25 V 20 % (Ø x L) 16.5 mm x 36.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
4700 µF
Nominal voltage
25 V
CS
7.5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
14-day return policy included
Highlights & Details
Electrolytic capacitor, 4700 µF, 25 V (DC), ±20 %, radial, RM 7.5 mm, Ø 16.5 mm
Our service for you
Technical specifications
- ESR (equivalent series resistance) 70 mΩ
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
7.5 mm
- Dim

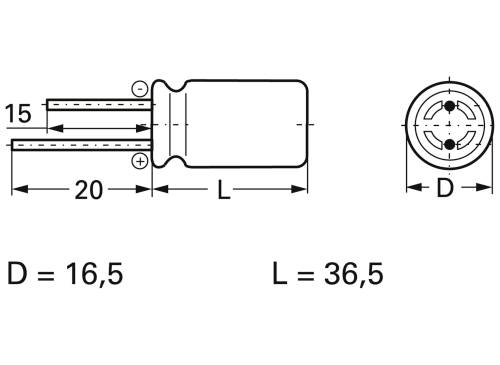

(Ø x L) 16.5 mm x 36.5 mm
- Capacity (elec.)
4700 µF
- Nominal voltage
25 V
- Tolerance ±
20 %
- (Ø)
16.5 mm
- Content
1 pc(s)
- Length
36.5 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
E-KS3565
Documents & Downloads
Datasheet
Datasheet 3046265 Frolyt E-KS3565 Electrolytic capacitor Radial lead 7.5 mm 4700 µF 25 V 20 % (Ø x L) 16.5 mm x 36.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046265 Frolyt E-KS3565 Electrolytic capacitor Radial lead 7.5 mm 4700 µF 25 V 20 % (Ø x L) 16.5 mm x 36.5 mm 1 pc(s)
Description
Electrolytic capacitor in aluminum housing with insulating sheath type Flyt EKS. With one-sided wire connections For vertical mounting in printed circuits, according to DIN IEC 60384-1 With nominal voltage 25 VDC.
