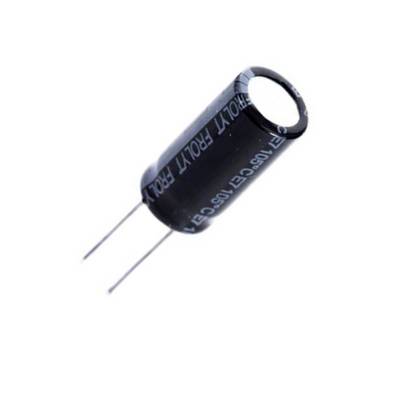

Frolyt E-KSU500 Bipolar capacitor Radial lead 5 mm 220 µF 50 V 20 % (Ø x L) 12.5 mm x 25 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bipolar capacitor
Type
Radial lead
Capacity (elec.)
220 µF
Nominal voltage
50 V
CS
5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Highlights & Details
Bipolar electrolytic capacitor, 220 µF, 50 V (DC), ±20%, radial, RM 5 mm, Ø 12
Our service for you
Technical specifications
- ESR (equivalent series resistance) 1.01 Ω
- Product type
Bipolar capacitor
- Type
Radial lead
- CS
5 mm

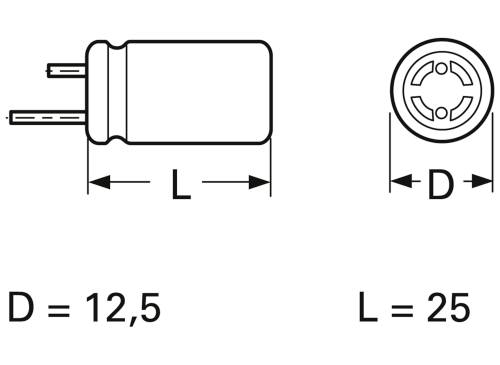

- Dim
(Ø x L) 12.5 mm x 25 mm
- Capacity (elec.)
220 µF
- Nominal voltage
50 V
- Tolerance ±
20 %
- (Ø)
12.5 mm
- Content
1 pc(s)
- Length
25 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
E-KSU500
Documents & Downloads
Datasheet
Datasheet 3046393 Frolyt E-KSU500 Bipolar capacitor Radial lead 5 mm 220 µF 50 V 20 % (Ø x L) 12.5 mm x 25 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046393 Frolyt E-KSU500 Bipolar capacitor Radial lead 5 mm 220 µF 50 V 20 % (Ø x L) 12.5 mm x 25 mm 1 pc(s)
Description
Bipolar electrolytic capacitor, E-KSU500, electrolyte aluminum electrolyte capacitor features * low-voltage electrolytic capacitor * small dimensions * insulated/unpoled * pulse-proof * service life 1000...2500 h/+105 °C.
