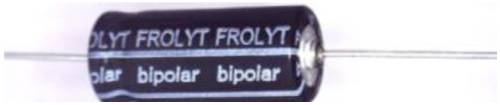

Frolyt K-AGU337 Bipolar capacitor Axial lead 0.47 µF 100 V 20 % (Ø x L) 8.5 mm x 16 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bipolar capacitor
Type
Axial lead
Capacity (elec.)
0.47 µF
Nominal voltage
100 V
Dim
(Ø x L) 8.5 mm x 16 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.92
10
7% = € 0.14
€ 1.78
25
10% = € 0.20
€ 1.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
14-day return policy included
Highlights & Details
Bipolar electrolytic capacitor , 0.47 µF, 100 V (DC), -20/+20 %, Axial, Ø 8.5 mm
Our service for you
Technical specifications
- Ripple current 17 mA
- ESR (equivalent series resistance) 270.9 Ω
- Product type
Bipolar capacitor
- Type
Axial lead
- Dim
(Ø x L) 8.5 mm x 16 mm
- Capacity (elec.)
0.47 µF
- Nominal voltage
100 V
- Tolerance ±
20 %
- (Ø)
8.5 mm
- Content
1 pc(s)
- Length
16 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
K-AGU337
Documents & Downloads
Datasheet
Datasheet 3046350 Frolyt K-AGU337 Bipolar capacitor Axial lead 0.47 µF 100 V 20 % (Ø x L) 8.5 mm x 16 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046350 Frolyt K-AGU337 Bipolar capacitor Axial lead 0.47 µF 100 V 20 % (Ø x L) 8.5 mm x 16 mm 1 pc(s)
Description
Aluminium electrolytic capacitors, K-AGU337, electrolyte aluminum electrolytic capacitors, low voltage, Axial, Miniaturised, insulated, non-polarized, switch-proof, life at least 1,500h to 2,500h at +105°C.
