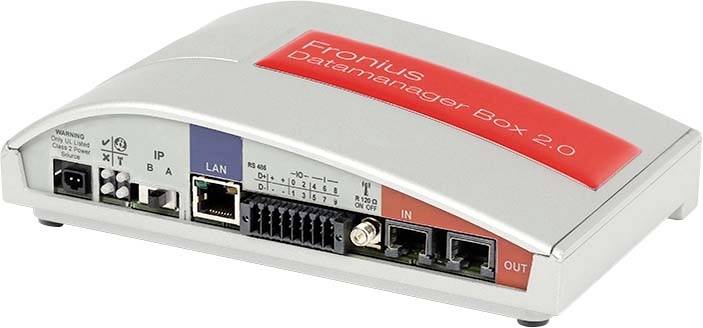

Fronius 4240125 4,240,125 Data manager
EAN:
Part number:
Item no:
Technical specifications
- Product type
Data manager
- Dim
(L x W x H) 190 x 114 x 53 mm
- Width
114 mm
- Height
53 mm
- Length
190 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2755175 Fronius 4240125 4,240,125 Data manager
Description
The data manager can connect inverters directly to the Internet via WLAN. Optimal monitoring of the PV system and configuration of the data manager is made possible by the own website on the integrated web server of the data manager. Technical data: 6 digital inputs (connection to round control receiver), 4 digital inputs/outputs (connection to round control receiver, load management), RS 485 (Modbus RTU SunSpec or meter connection), storage capacity max. 4096 days, interfaces Ethernet (RJ45 socket): LAN, 10/100 Mbit / Modbus TCP SunSpec, Fronius Solar API (JSON), RS-422 (RJ45 socket):Solar.Net IN, /Solar.Net Out, WLAN: Radio standard 802.11 b/g, length 190 mm, width 114 mm, height 53 mm
