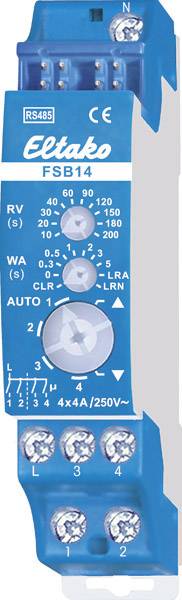

FSB14 Eltako RS485 Blinds actuator DIN rail Switching capacity (max.) 1000 W

Switching actuator shading elements and roller shutters with 2 channels for two 230V motors. 2+2 normally open contacts 4A/250V AC, isolated from the supply voltage 12V. Bidirectional. Stand-by loss only 0.1 watt. Series installation device for mounting on mounting rail. Connection to the Eltako RS485 bus. Cross-wiring bus and power supply with jumper. Contact switching in zero crossing to protect the contacts and motors. A motor is connected to 1, 2 and N, a second motor may be connected to 3, 4 and N. If both relays of the FSB14 are switched on, 0.4 watts are required. If the supply voltage fails, it is switched off in a defined way. The buttons can be programd either as a direction button or as a universal button: Local control with universal button: With each pulse, the switch position changes in the order, stop, stop, stop. Local control with direction button: The switching position is activated in a targeted manner with a key pulse at the top. The switching position is activated selectively by means of a key pulse at the bottom. Another key pulse in the same direction interrupts the sequence immediately. However, with a key pulse in the other direction, it is stopped and switched to the opposite direction after a pause of 500ms. Central control dynamically without priority: With a control signal of a button taught as central control button without priority, the switching position is activated selectively to the top or bottom. Without priority because this function can be overridden by other control signals. Central control dynamically with priority: With a control signal of at least 2 seconds of a button taught as central control button with priority, the switching position is activated selectively up and down. With priority because these control signals cannot be overmodulated by other control signals until the central command is canceled by a key pulse up or down by the central control button. A control signal, e.g. a FSM61 programd as a central control button with priority, is used to selectively activate the switching position up or down and the priority. With priority because these control signals cannot be overmodulated by other control signals until the central command is canceled by the end of the control signal. Shading scene control: With a control signal of a button programd as scene button with double rocker or automatically by an additional taught-in wireless outdoor brightness sensor FAH60, up to 4 previously stored starting times can be called up. When controlled via the GFVS software, travel commands for up and down can be started with the exact travel time specification. Since the actuator reports back exactly the time traveled after each activity, even when the motion is triggered by a button, the position of the shading is always displayed correctly in the GFVS software. When the end positions are reached at the top and bottom, the position is automatically synchronized. The LED below the upper rotary switch accompanies the programming process according to the operating instructions and indicates control commands during operation by short flashing.

This text is machine translated.
