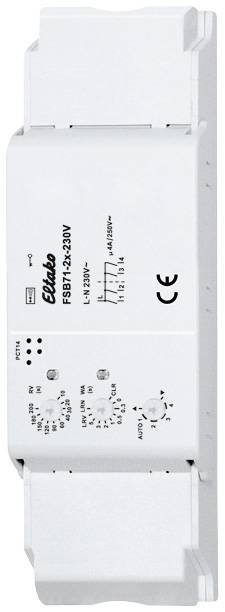

FSB71-2x-230V Eltako Wireless Blinds actuator Shading element Suspended ceiling Switching capacity (max.) 1000 W

Switch actuator shading elements and roller shutters with 2 channels for two 230V motors. 2+2 normally open contact 4A/250V AC, not isolated. Encrypted radio, bi-directional radio and repeater function can be connected. Standby loss of only 0.8 watt. Installed in the 230 V mains connection cable, e.g. in intermediate ceilings and lamps. 166mm long, 46mm wide and 31mm deep. With cable strain relief. Contact switching in zero crossing for protection of contacts and motors One engine is connected to 1, 2 and N, and a second engine may be connected to 3, 4 and N. When the supply voltage fails, a defined shutdown is performed. The buttons can be taught in either as direction switches or as universal buttons: Local control with universal button: With each pulse the switching position changes in the sequence up, stop, down, stop. Local control with direction switch: A touch button on the top activates the switching position on a targeted basis. However, a lower key pulse is used to activate the switch position from targeted position. Another pulse from one of the two buttons interrupts the sequence immediately. Central control system dynamically without priority: With a control signal of a button programmed as a central control button without priority, the switch position Up or Down is specifically activated. Without priority because this function can be overdriven by other control signals. Central control system dynamically with priority: With a control signal of at least 2 seconds of a button programmed as central control button with priority, the up and down switching position is specifically activated. Priority because these control signals cannot be overdriven by other control signals until the central command is canceled by a up or down key pulse from the central control button. With a control signal, e.g. a FSM61 programmed as central control button with priority, the up or down switching position and the priority are specifically activated. Priority because these control signals cannot be overdriven by other control signals until the central command is canceled by the end of the control signal. Shading scene control: With a control signal of a button with dual rocker which has been programmed as the scene button, or automatically with an additional remote/external brightness sensor that has been programmed in, up to 4 previously stored down times can be accessed. For control via the GFVS software, drive commands for up and down can be started with the exact travel time information. Since the actuator reports back exactly the time traveled after each activity, even when driving triggered by a button, the position of the shading is always displayed correctly in the GFVS software. When the end positions at the top and bottom are reached, the position is automatically synchronized. Function rotary switch bottom The LED under the upper rotary switch accompanies the programming process according to operating instructions and indicates control commands during operation by a short blinking.
