FSP Fortron FSP220-50FGBBI Industrial PC PSU 220 W 80 PLUS Bronze
EAN:
Part number:
Item no:
Datasheet (PDF)
12 Piece(s)
Sales and shipping:
Number
Total (€ 55.45 / piece)
€
Highlights & Details

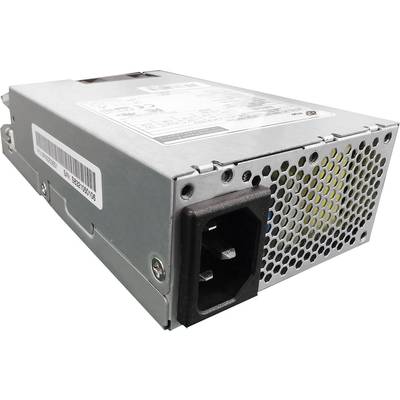

Fortron FSP220-50FGBBI 220 W FlexATX power supply
- 80 Plus® Bronze certification
- Low residual ripple
- Overvoltage protection
- Short-circuit protection at all outputs
- Internal fan 40 mm
- 100% burn-in under high ambient temperature (50°C)
- Vacuum impregnated transformer
- MTBF:100,000 hours at 25℃
Technical specifications
- PSU output power
220 W
- 3.3V DC
8 A
- 5 V DC
12 A
- +12 V/DC (1)
14 A
- -12V / DC
0.3 A
- +5V / DC SB
2.5 A
- 20+4-pin.
1
- 4-pin 12 V
1
- 4-pin floppy
1
- 4-pin Molex
3
- 5-pin SATA
1
- 6-pin PCIe
1
- Dim
(W x H x D) 81.5 x 40.3 x 150 mm
- Depth
150 mm
- Height
40.3 mm
- Width
81.5 mm
- Power rating
0 - 500 W
- Output rating < 500 W
220 W
- Certification
80 PLUS Bronze
- Product type
Industrial PC PSU
Documents & Downloads
Datasheet
Datasheet 2109526 FSP Fortron FSP220-50FGBBI Industrial PC PSU 220 W 80 PLUS Bronze
Datasheet 2109526 FSP Fortron FSP220-50FGBBI Industrial PC PSU 220 W 80 PLUS Bronze
User & Safety Instructions
User & Safety Instructions 2109526 FSP Fortron FSP220-50FGBBI Industrial PC PSU 220 W 80 PLUS Bronze
Description
The FSP220-50FGBBI from FSP Fortron Source is a switched-mode power supply on an industrial level. The power supply offers a total power of up to 220 watts and has a unique active power factor correction filter (Power Factor Correction) with its high-load electrical components, which makes it perfect for use in an industrial environment. This power supply is the best choice for your workstation, server or other automation application. It also meets the latest safety and EMC standards, which allow you to use this power supply worldwide.
