FSP FSP Dagger Pro 650W black PPA6504801 PC power supply unit 650 W SFX
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
650 W
Form factor
SFX
Factory colour
Black
Dim
(W x H x D) 100 x 63.5 x 125 mm
Highlights & Details
FSP FSP Dagger Pro 650W black PPA6504801 PC power supply unit
- Power supply unit output 650 W
- PCI-Express (6+2-Pin) 2x
- Cable management
Technical specifications
- 80 Plus Certification 80 PLUS Gold
- Fan diameter 9.2 cm
- Number of fans: 1 fans
- Product type
PC power supply unit
- PSU output power
650 W
- Form factor
SFX
- Factory colour
Black
- Dim
(W x H x D) 100 x 63.5 x 125 mm
- Depth
125 mm
- Height
63.5 mm
- Width
100 mm
- -12V / DC
0.3 A
- +12 V/DC (1)
54 A
- 5 V DC
22 A
- +5V / DC SB
2.5 A
- 4-pin Molex
2
- 6-pin PCIe
2
- 5-pin SATA
5
- Power rating
501 - 750 W
- Cooling
Active
- Max. operating noise
40 dB
- 3.3V DC
20 A
- Power supply (details)
100-240 V
- Nominal load efficiency
90 %
- Silent mode
yes
- Maximum input current (@110V)
10 A
- Maximum input current (@220V)
5 A
- CPU power cable length
85 cm
- EPS power connector (4+4 pin)
yes
- Mean time between failures (MTBF)
200000 h
- On/off switch
yes
- Floppy drive power connector
1
- CPU power connector (4+4 pin)
yes
- Combined power (+3.3V)
120 W
- Combined power (+12V)
648 W
- Combined power (+5V)
120 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
12.5 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818487 FSP FSP Dagger Pro 650W black PPA6504801 PC power supply unit 650 W SFX
Description
Small but powerful
The DAGGER PRO series is compatible with most small form factor mini ITX and micro ATX PCs. It is suitable Ideal for home computer systems, but is also a great alternative for Mini-PC enthusiasts.

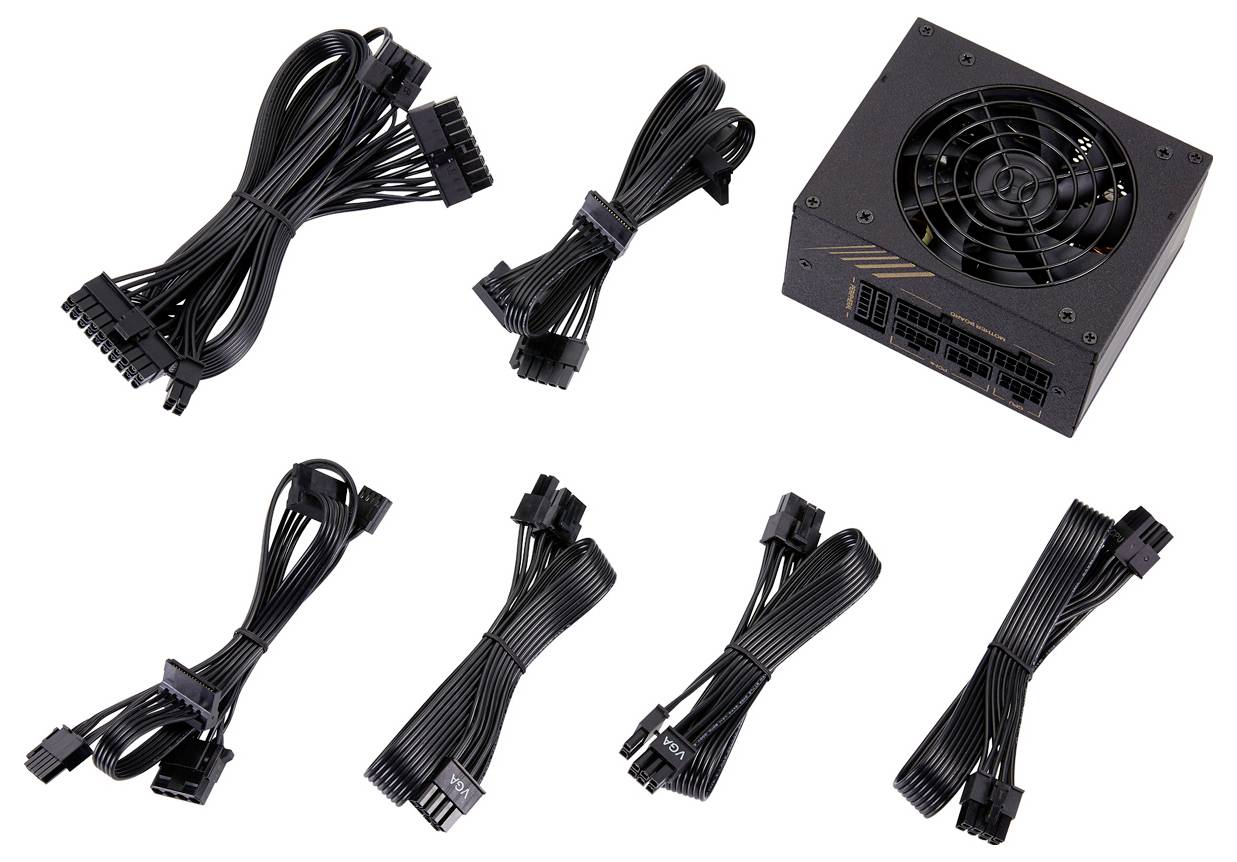

Advanced cable management and ribbon cable
The fully modular design and the ribbon cable simplify the installation. An ideal solution for space-constrained applications that optimize overall airflow efficiency and cable routing.
92-mm fan, optimized for noiseless operation
Dagger PRO offers an advanced, semi-passive design that rotates at a load of over 20% to work quietly in maximum operation and reduce noise levels.
80 Plus® Gold certification
Powerful single +12-V rail for your VGA-card
Graphics cards are especially power hungry and need a stable power supply. The compact DAGGER PRO series has a design with a single +12-V rail that supplies the graphics cards individually full power and prevents overloads.
Supports high-end motherboards
For gaming fans, the DAGGER PRO 650W offers two CPU power connections to support high-end motherboards and to ensure a stable CPU power supply.
Japanese Electrolytic Capacitors
The Dagger PRO series uses Japanese electrolytic capacitors to ensure a longer service life and protect your power supply from sudden voltage fluctuations.
This text is machine translated.
The DAGGER PRO series is compatible with most small form factor mini ITX and micro ATX PCs. It is suitable Ideal for home computer systems, but is also a great alternative for Mini-PC enthusiasts.
Advanced cable management and ribbon cable
The fully modular design and the ribbon cable simplify the installation. An ideal solution for space-constrained applications that optimize overall airflow efficiency and cable routing.
92-mm fan, optimized for noiseless operation
Dagger PRO offers an advanced, semi-passive design that rotates at a load of over 20% to work quietly in maximum operation and reduce noise levels.
80 Plus® Gold certification
Powerful single +12-V rail for your VGA-card
Graphics cards are especially power hungry and need a stable power supply. The compact DAGGER PRO series has a design with a single +12-V rail that supplies the graphics cards individually full power and prevents overloads.
Supports high-end motherboards
For gaming fans, the DAGGER PRO 650W offers two CPU power connections to support high-end motherboards and to ensure a stable CPU power supply.
Japanese Electrolytic Capacitors
The Dagger PRO series uses Japanese electrolytic capacitors to ensure a longer service life and protect your power supply from sudden voltage fluctuations.
This text is machine translated.
Features
- Complies with the requirements of SFX12V V3.3
- Efficiency ≧ 90% at typical load
- Contains Multiple Intelligence Ability (MIA) IC chipset
- Semi-passive design for silent operation
- Silent and long-lasting 92-mm ball-bearing fan
- Black ribbon cable
- Powerful design with single +12-V- rails
- Japanese Electrolytic Capacitors
- Comprehensive protection: OCP, OVP, SCP, OPP, OTP
