Name: FSP FSP Twins Pro 900W black PPA9000600 PC power supply unit 900 W
Brand: FSP
SKU: 3818491

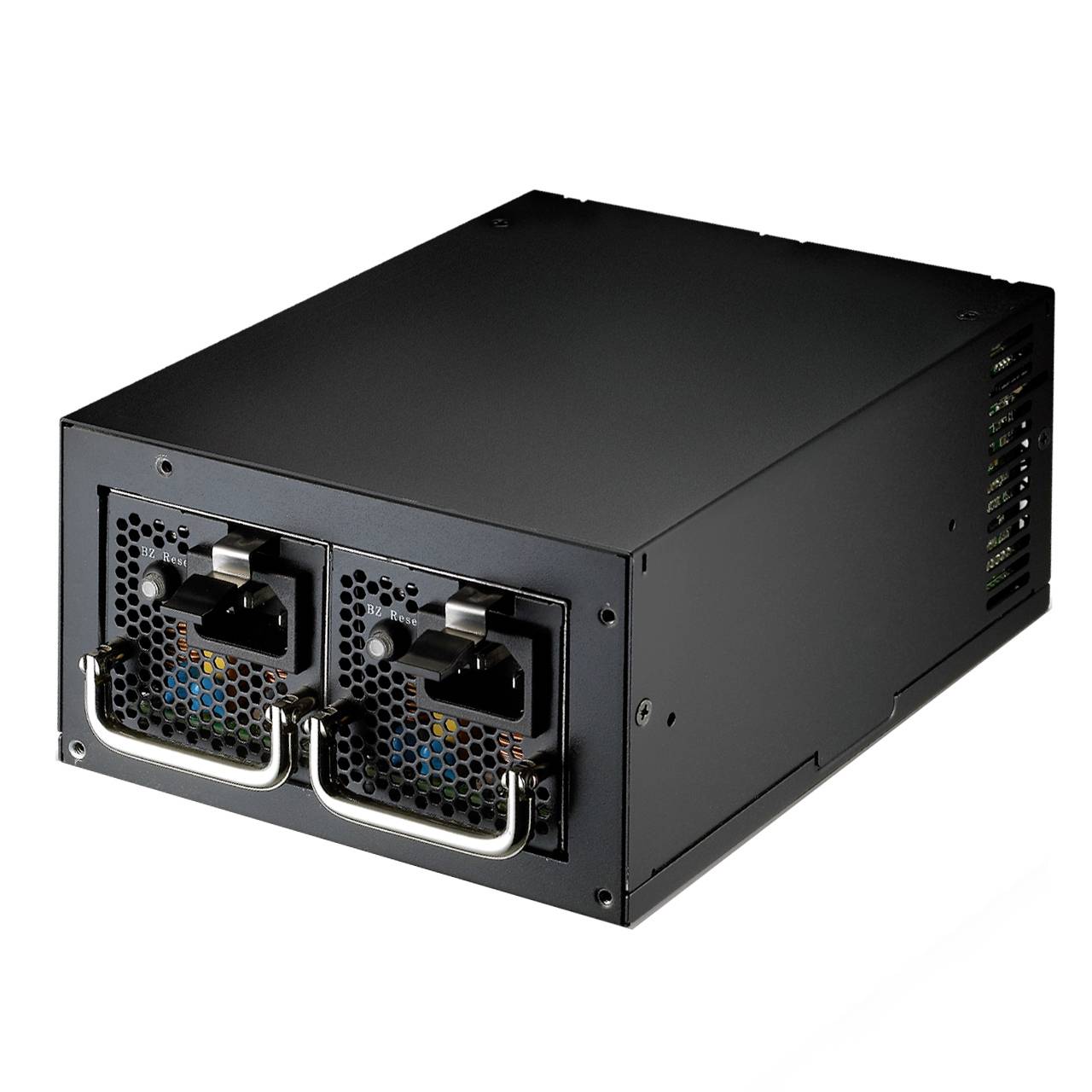

Black dual-hot-swap server power supply unit with two rear cooling modules and handles, shown on a white background.

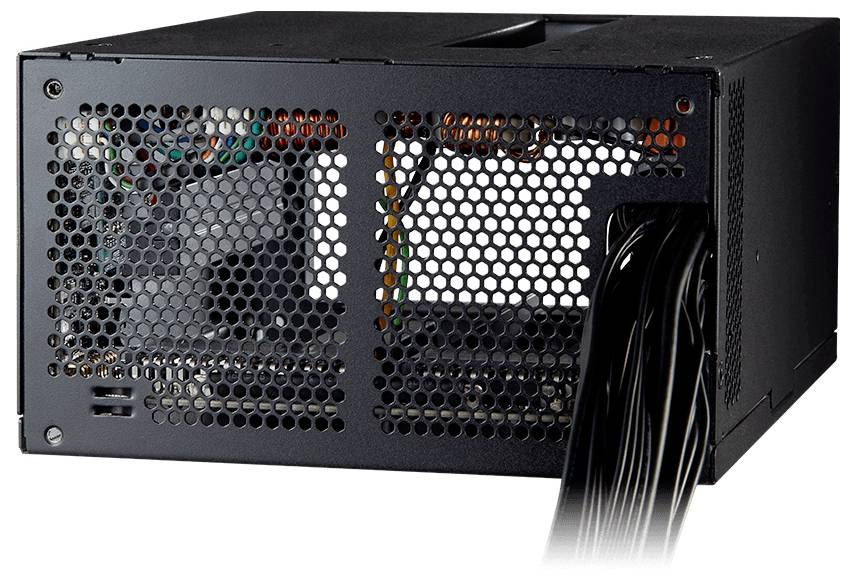

Black computer power supply unit with hexagonal metal grille, rear fan vent, and bundled cables extending out the side<br>

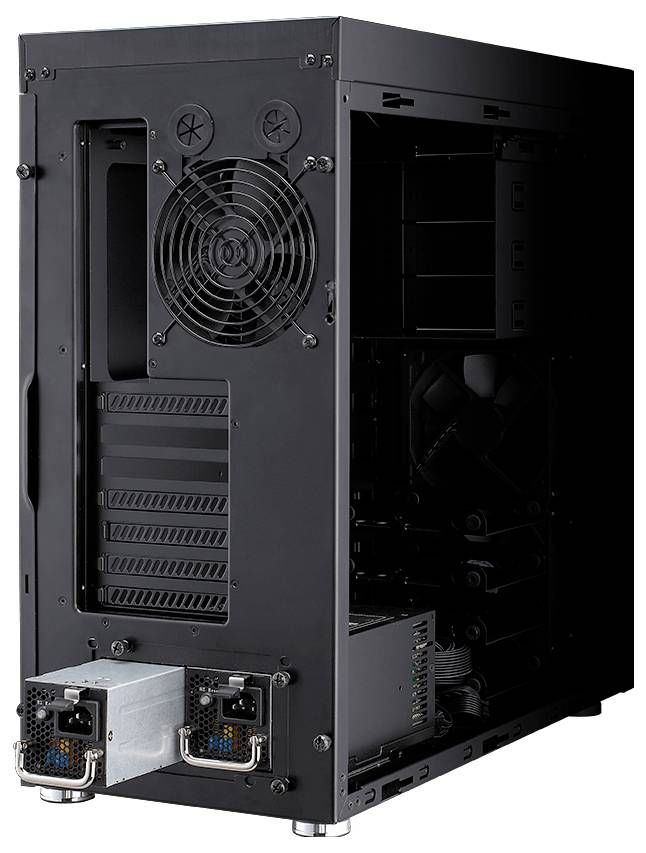

Black desktop computer tower case shown open/partially assembled, with rear fan, expansion slots, and dual power supply units visible.

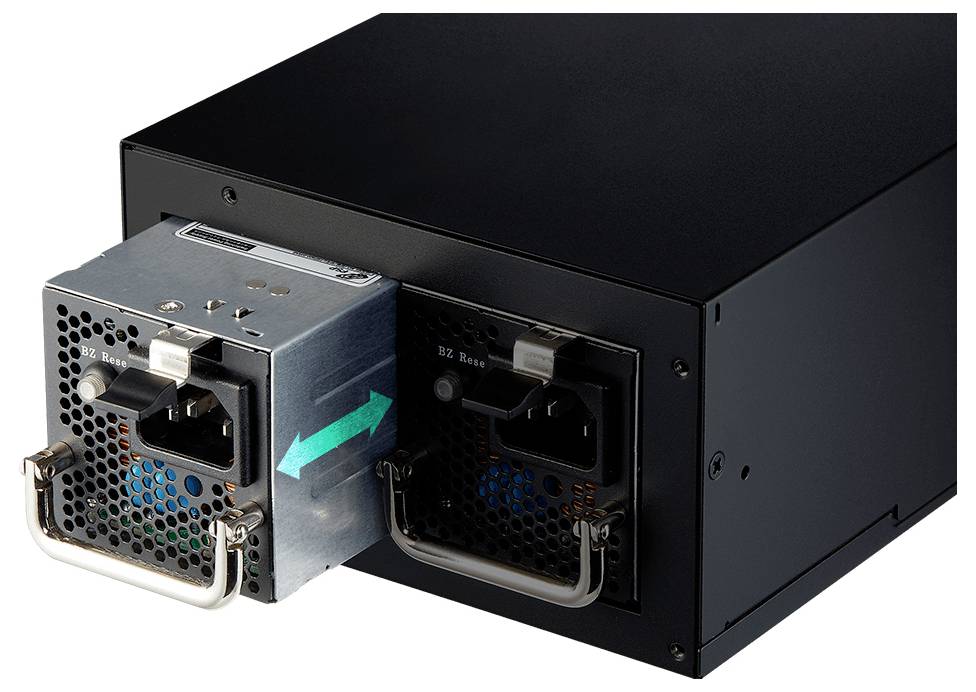

Close-up of a black electronics enclosure with a removable metal power module being inserted into the front panel bay.

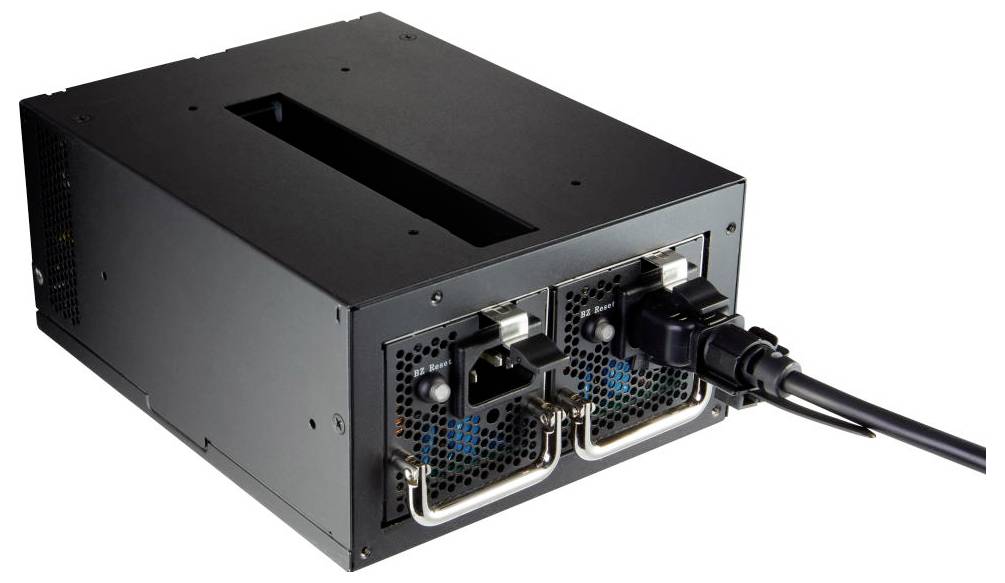

Black metal power supply unit with cooling vents and two plugged-in cables on the rear panel.

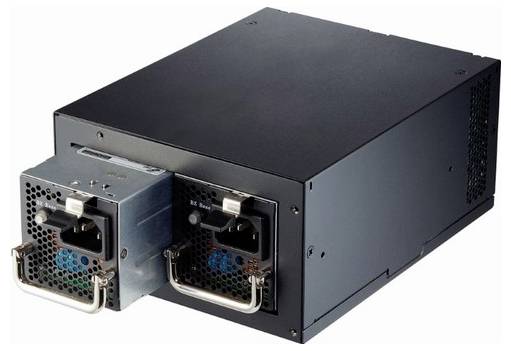

Black modular power supply unit with two front hot-swap power modules and cooling vents on a white background.

1/6

Product type

PC power supply unit

PSU output power

900 W

Factory colour

Black

Dim

(W x H x D) 150 x 86 x 190 mm

Depth

190 mm

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

FSP FSP Twins Pro 900W black PPA9000600 PC power supply unit

Power supply unit output 900 W
PCI-Express (6+2-Pin) 4x
Cable management

Technical specifications

80 Plus Certification 80 PLUS Gold
Power Supply Unit (PSU) Form factor PS/2
Fan diameter 4 cm
Number of fans: 2 fans

Product type: PC power supply unit

PSU output power: 900 W

Factory colour: Black

Dim: (W x H x D) 150 x 86 x 190 mm

Depth: 190 mm

Height: 86 mm

Width: 150 mm

-12V / DC: 0.5 A

+12 V/DC (1): 75 A

5 V DC: 20 A

+5V / DC SB: 3 A

4-pin Molex: 2

6-pin PCIe: 4

5-pin SATA: 6

Power rating: 751 W -

3.3V DC: 20 A

Power supply (details): 100-240 V

Nominal load efficiency: 90 %

CPU power connector (4+4 pin): yes

Combined power (+3.3V): 130 W

Combined power (+5V): 130 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3818491 FSP FSP Twins Pro 900W black PPA9000600 PC power supply unit 900 W

Description

Redundant design and hot-swappable modules

Thanks to its modular system design, the Twin Pro works efficiently and quietly, since the current load is distributed over two individual modules, which can also be exchanged during operation, if necessary. If one module fails, the second module takes over the full current load until the faulty module is replaced. Each of the two power supplies can be replaced or replaced while the system is running without any system downtime. This guarantees smooth operation without interruptions.

Efficient cable management

A simple cable routing helps to dissipate heat and thus, extends the life of the components installed. In addition, it saves space in the housing and ensures a clean aesthetics, especially in customer-specific systems.

Power cable lock

The Twins Pro series have a so-called mains cable locking, which the mains cable is fixed at the power unit by means of holding device. This ensures a stable power supply without interrupting the system.

An intelligent monitor software

The Twins PRO series can be connected to a USB plug and synchronized with the FSP Guardian software to monitor power consumption, power output, efficiency and other internal recordings in real time. FSP Guardian software can warn users when temperatures reach critical values. In addition, the user is supplied with all current information in real time.

Ideal for home, mail or web-server systems

The Twins-series is a redundant power supply of the size ATX PS2. It has no front-end brackets, WAS makes it an economical power supply for a home cloud server, mail server or a web-server for small to medium-sized companies (SME).

This text is machine translated.
