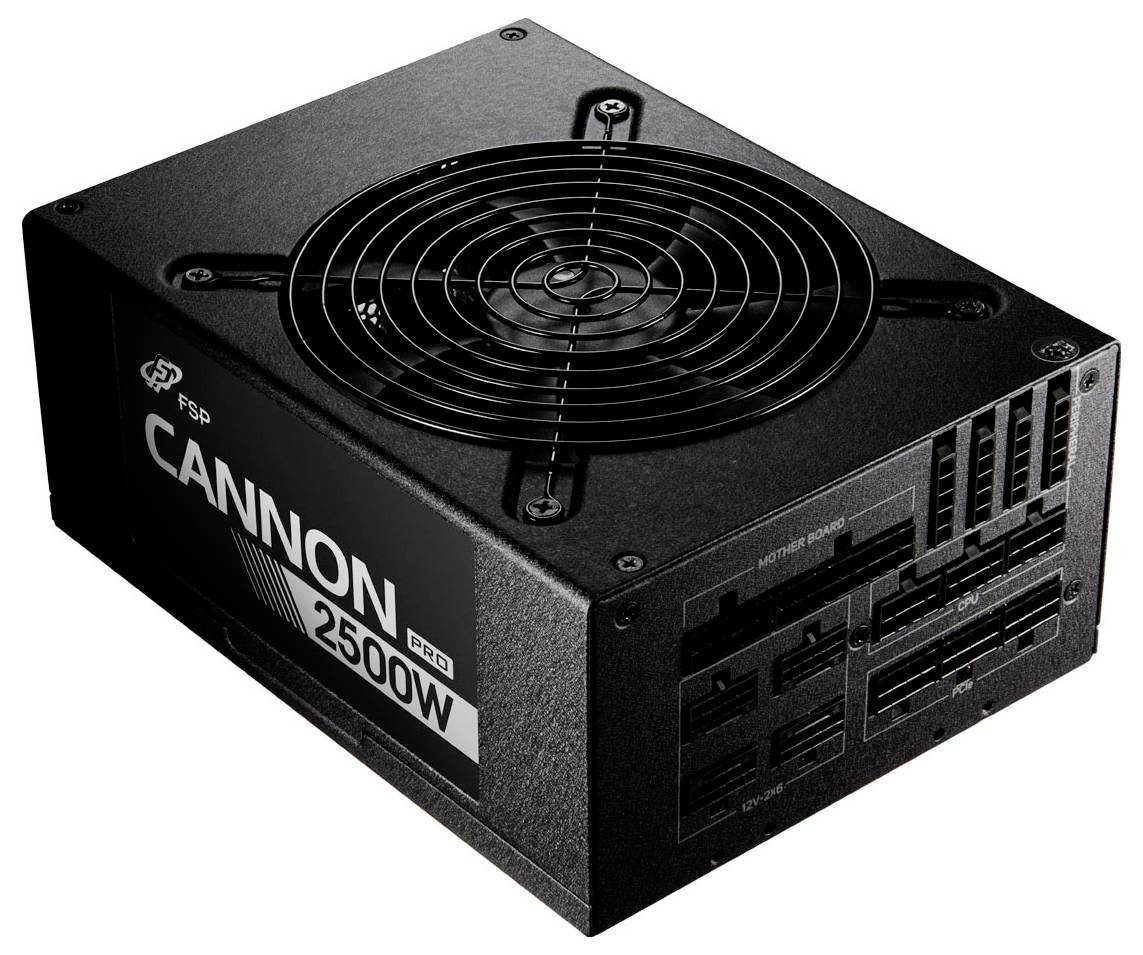

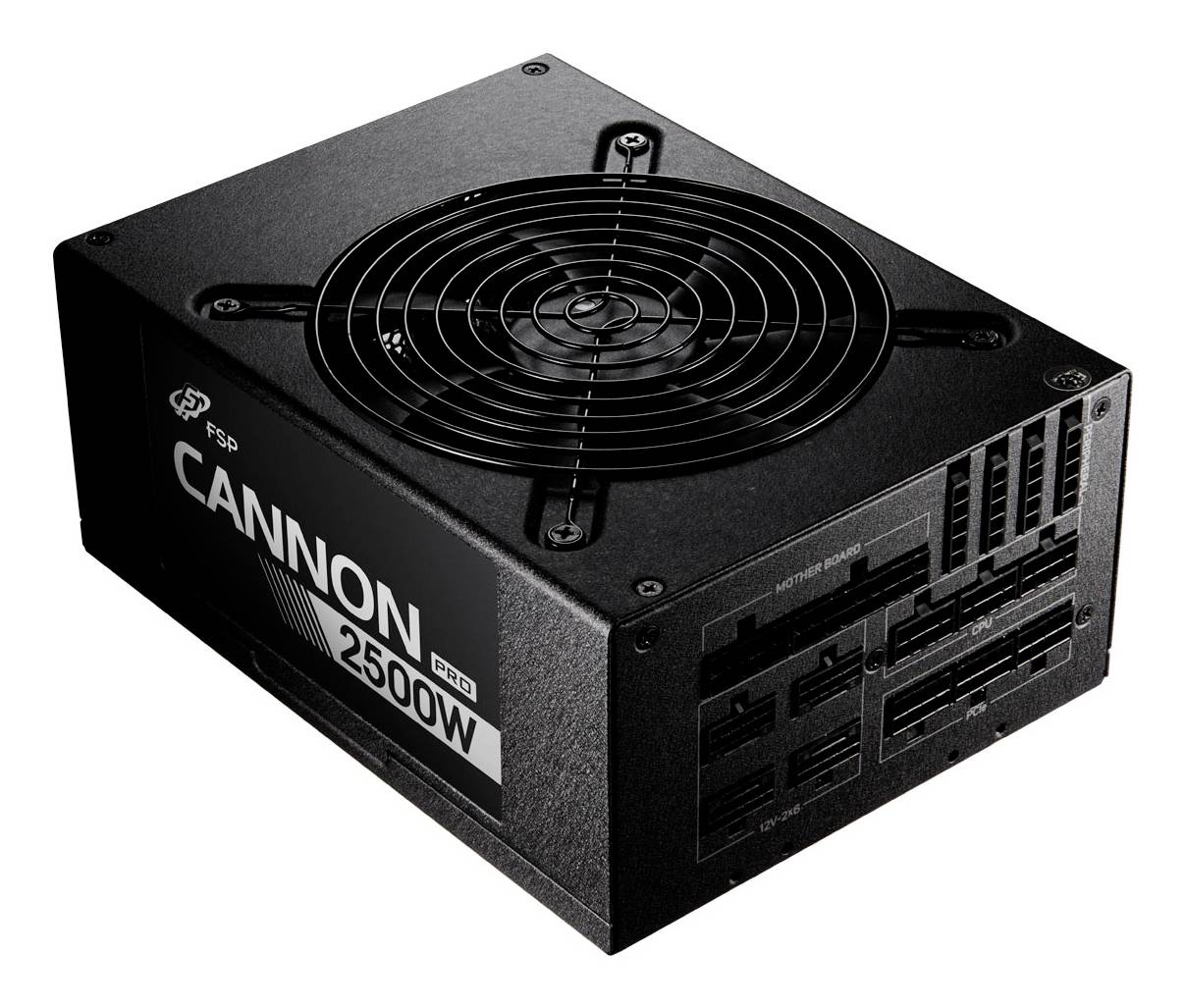

FSP PC- Netzteil Fortron Cannon Pro 2500 250 PC power supply unit 2500 W ATX
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
2500 W
Form factor
ATX
Factory colour
Black
Dim
(W x H x D) 150 x 86 x 200 mm
Highlights & Details
FSP PC- Netzteil Fortron Cannon Pro 2500 250 PC power supply unit
- Power supply unit output 2500 W
- PCI-Express (6+2-Pin) 3x
- Cable management
Technical specifications
- 80 Plus certification: 80 PLUS Platinum
- Fan diameter 13.5 cm
- Number of fans: 1 fans
- Product type
PC power supply unit
- PSU output power
2500 W
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 86 x 200 mm
- Depth
200 mm
- Height
86 mm
- Width
150 mm
- -12V / DC
0.3 A
- +12 V/DC (1)
208.3 A
- 5 V DC
25 A
- +5V / DC SB
4 A
- 4-pin Molex
4
- 6-pin PCIe
3
- 5-pin SATA
8
- Power rating
751 W -
- 3.3V DC
25 A
- Power supply (details)
200 - 240 V
- UKCA
yes
2
- Efficiency
94 %
- On/off switch
yes
- ATX power connector (20+4 pin)
yes
- PCI Express power connectors (8-pin)
8
- CPU power connector (4+4 pin)
yes
- Power factor
0.9
- Combined power (+3.3V)
125 W
- Combined power (+12V)
2499.6 W
- Combined power (+5V)
125 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
20 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3737034 FSP PC- Netzteil Fortron Cannon Pro 2500 250 PC power supply unit 2500 W ATX
Description
The future is now: ATX 3.1 & PCIe Gen 5.1 ready
In accordance with the latest ATX 3.1 & PCIe Gen 5.1 regulation this series supports 2 times the total power and 3 times the GPU performance, in order to offer top performance with modern hardware or future upgrades.
High efficiency with Platinum-certification
Certified by the world's leading organizations: 80 PLUS® 230V EU Platinum certification for lower power loss, lower heat generation and quieter operation.
Ready to build your own AI PC station
4 x PCIe 12V-2x6 and 3x PCIe 8-pin connectors
It supports four 12V 2x6 ports and three 6+2-pin ports, providing the power you need for high-end gaming, rendering, and multi-GPU configurations.
Fully modular cable design
Easy PSU installation: Use only the cables you really need for optimum air flow and a tidy system.
+5V & 3.3V DC-to-DC circuit design
The combination of +3.3V- and +5V-DC-module with a +12V-SR circuit offers high efficiency, voltage stability and high system compatibility, especially in the cross-regulation mode (asymmetrical load).
Japanese 105 ℃ bulk capacitor
The capacitor inside serves to support operation under extremely harsh environmental conditions such as high temperatures and voltage peaks. It stabilizes the performance for high reliability that your system can rely on.
High performance yet energy saving
A high power conversion of up to 94% and an efficiency of 70% at 2% load, with a consumption of less than 0.5W in the standby mode, ensure an energy-efficient, economical and environment-friendly system.
The high-quality FDB-fan
Developed with optimized cooling solution and an advanced 135 mm fan with hydrodynamic plain bearings for cooler components and quieter operation.
Industrial design: Conformal coating for demanding computer environments
Provides stable power in demanding high-performance computing environments that require 24 hours of daily operation without interruption.
Protection on strength level
Our comprehensive circuit protects your valuable components from damage.
This text is machine translated.
Features
- Efficiency ≧ 94 % at typical load
- 80 PLUS® 230V EU Platinum certified
- Offers 4 native PCIe 12V-2x6 connectors and cables
- Japanese 420V 105 °C bulk capacitor
- Silent, long-lasting 135 mm fan
- Fully modular cabling design
- Coating, which protects against moisture, dust and stains
- Complete protection: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
