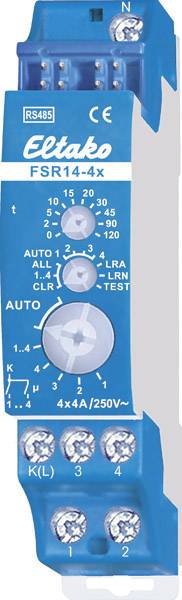

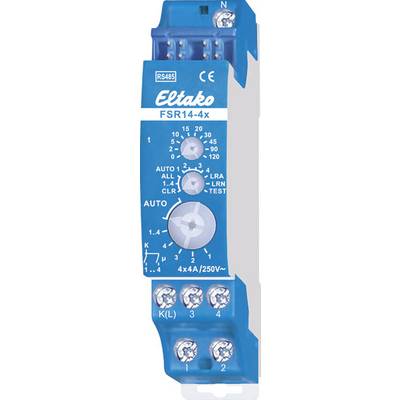

FSR14-4x Eltako RS485 Actuator 4-channel DIN rail Switching capacity (max.) 1000 W
EAN:
Part number:
Item no:
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
14-day return policy included
Technical specifications
- Product type
Actuator
- Series
Eltako
- Dim
(W x H x D) 105.0000 x 95.0000 x 65.0000 mm
- Max. switching capacity
1000 W
IP20
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Mounting type
DIN rail
1000 W
- Data transfer (Smart Home)
RS485
- Channels
4
- Width
105.0000 mm
- Height
95.0000 mm
- Depth
65.0000 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
0.1250 kg
- Switching current (max.)
4 A
- Factory colour
Multicolour
DRA (DIN-rail adapter)
16 A
0.1 W
1000 W
12-12 V
FALSE
TRUE
FALSE
1000 W
TRUE
4
1
4 A
None
FALSE
TRUE
FALSE
FALSE
IP20
FALSE
TRUE
FALSE
TRUE
TRUE
200 W
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162172 FSR14-4x Eltako RS485 Actuator 4-channel DIN rail Switching capacity (max.) 1000 W
Description
Surge current relay with 4 channels, 1 NO contact each 4A/250V AC, Glühlampen 1000W, isolated from the supply voltage, with DX technology. Bidirectional. Stand-by loss only 0.1 watt. Connection to the Eltako RS485 bus. Cross-wiring bus and power supply with jumper. To do this, simply connect the N conductor to the clamp (N) and L to K(L). This results in an additional standby loss of only 0.1 watt. If all 4 relays of the FSR14-4x are switched on, 0.7 watts are required. If the supply voltage fails, it is switched off in a defined way. The channels can be taught in independantly of each other as A SINGLE AND/or SINGLE channel. Scene control: With one of the four control signals of a button programd as scene button with double rocker, several channels of one or more FSR14-4x can be switched on or off for each scene. Central commands on the PC are sent with the building radio visualization and control software GFVS. To do this, teach in one or more FSR14-4x on the PC. The rotary switches are used to teach in the buttons and, if necessary, to test the 4 channels. The LED below the upper rotary switch accompanies the programming process according to the operating instructions and indicates control commands during operation by short flashing.
