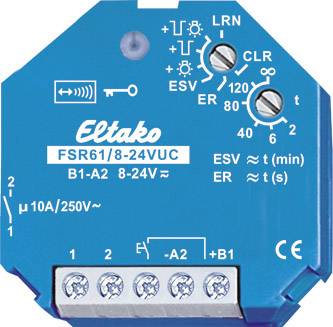

FSR61/8-24V UC Eltako Wireless Actuator Flush mount Switching capacity (max.) 2000 W Max. range (open field) 30 m
EAN:
Part number:
Item no:
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
14-day return policy included
Technical specifications
- Product type
Actuator
- Series
Eltako
- Dim
(W x H x D) 45 x 45 x 33 mm
- Max. switching capacity
2000 W
IP20
- Power supply (LOV)
via PSU (optional)
via DIN rail PSU
- Operating voltage
12 V
24 V
- Mounting type
Flush mount
2000 W
- Data transfer (Smart Home)
Wireless
- Frequency
868 MHz
30 m
- Width
45 mm
- Height
45 mm
- Depth
33 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
0.06
- Factory colour
Blue
Flush mounted (plaster)
Blue
TRUE
Other
12 - 24 V AC/DC
0.8 W
1
TRUE
TRUE
FALSE
FALSE
Thermoplastic
Plastic
Other
32
868 MHz
TRUE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
Matt
IP20
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162340 FSR61/8-24V UC Eltako Wireless Actuator Flush mount Switching capacity (max.) 2000 W Max. range (open field) 30 m
Description
Radio actuator surge current relay. 1 normally open contact potential-free 10A/250V AC, incandescent lamps 2000 Watt, off-delay with switch-off warning and button-continuous light can be switched on. Encrypted radio, bi-directional radio and repeater function can be activated. Stand-by loss only 0.3-0.8 watts. For panel mounting. 45mm long, 45mm wide, 33mm deep. If the supply voltage fails, the switching state is retained. With recurring supply voltage is switched off in a defined way. After installation, wait for the automatic short synchronization before connecting the switched consumer to the mains. In addition to the radio control input via an internal antenna, this radio actuator can also be locally controlled with a conventional control button that may be installed in front of it. A glow lamp current is not permitted. Encrypted sensors can be taught in. Bidirectional radio and/or a repeater function can be switched on. Each change in status and received central control message frames are then confirmed with a radio message frame. This radio telegram can be taught in to other actuators such as FSR61NP-230V, the GFVS software and in universal displays.
