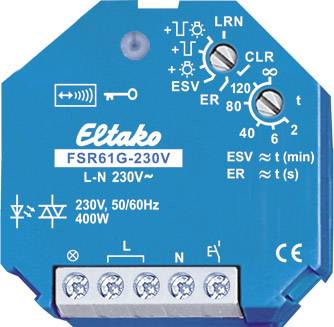

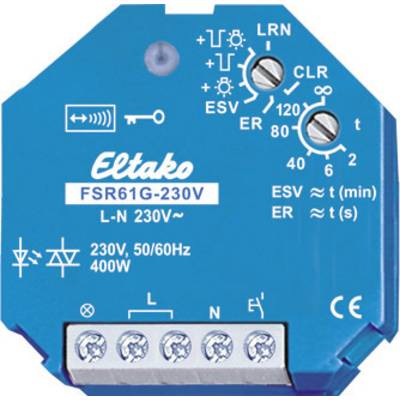

FSR61G-230V Eltako Wireless Switch 1-channel Flush mount Switching capacity (max.) 400 W Max. range (open field) 30 m

Noiseless Solid-State-Relay not potential-free, 400 Watt, off-delay with switch-off warning and button-continuous light can be switched on. Encrypted radio, bi-directional radio and repeater function can be activated. Stand-by loss only 0.8 watts. For panel mounting. 45mm long, 45mm wide, 33mm deep. From production week 35/16 with automatic electronic over-temperature shutdown. If the load is less than 1W, a BLE must be connected in parallel to the load. In addition to the radio control input via an internal antenna, this radio actuator can also be locally controlled with a conventional 230V control button that may be installed in front of it. A glow lamp current is not permitted. Encrypted sensors can be taught in. Bidirectional radio and/or a repeater function can be switched on. Each change in status and received central control message frames are then confirmed with a radio message frame. This radio telegram can be taught in to other actuators such as FSR61NP-230V, the GFVS software and in universal displays. Scene control: With one of the four control signals of a button programd as scene button with double rocker, several FSR61 can be switched on or off to a scene. With the upper rotary switch, up to 35 radio buttons are assigned in the LRN position, of which one or more central control buttons. In addition, wireless window door contacts with the function normally open or normally closed contact with open window, wireless outdoor brightness sensors FAH and wireless motion detector FSH. The LED accompanies the teach-in process according to the operating instructions and indicates radio control commands during operation by briefly flashing.
