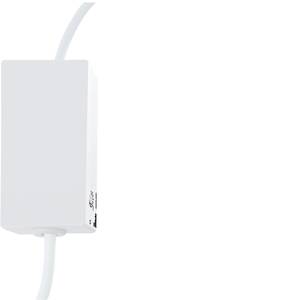

FSR70S-230V-rw Eltako Actuator Surge protection switch

1 NO potential-free 10A/250V AC, 230V LED lamps up to 400W, bulbs 2000 W, ESL up to 200W. Standby loss of only 0.8 watt. Installed into the 230 V mains connection of standing and night lamp. 100mm long, 50mm wide and 31mm high. This radio actuator as a surge relay has the latest hybrid technology developed by us: The wear-free reception and evaluation electronics have been combined with a bi-stable relay switching at zero point. This means that even when switched on, there is no coil power loss or heat up. With the rotary switch on the side, up to 35 radio buttons are assigned in the LRN position, one or more central control buttons. Furthermore, a radio-motion brightness sensor FBH and / or an outdoor radio brightness sensor FAH for a presence simulation. Afterwards, the desired function of this surge switch relay is selected: ES = surge current switch: With registered FBH the switch is switched on during motion with additional taught-in FAH at dusk and when no movement is detected the contact opens for 4 minutes with a delay. A wireless switch can be used to activate or deactivate the wireless switching module Deactivation of a presence simulation can be additionally taught in. ER = Switching relay: When the FAH is taught in, the contact is switched on at dusk and when it is light, the contact opens for 4 minutes is delayed. AS = Presence Simulation: The AS starts with a random pause time between 20 and 40 minutes, following a random switch-on time between 30 and 120 minutes. If the rotary switch is turned to AS or when the mains voltage is switched on in the AS position, the light switches on for 5 seconds after 1 second. With programmed FAH, the AS only starts from twilight. After the FAH has detected brightness, the AS ends after 4 minutes. The LED on the side accompanies the teach-in procedure according to the operating instructions and indicates radio control commands during operation by a short blink.
