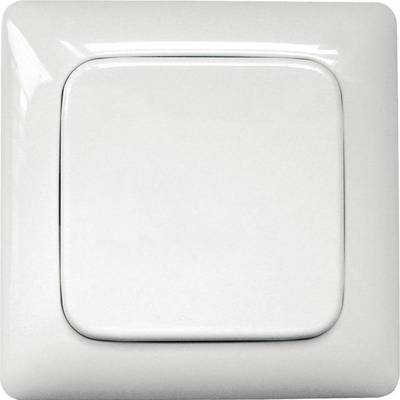

FT55R Eltako Wireless Remote control 4-channel Surface-mount Max. range (open field) 30 m

Wireless 4-channel button 55x55mm for Busch Reflex and Duro frames. Generates the energy for radio telegrams even at the push of a button, therefore without connection cable and no standby loss. With rocker and double rocker. The delivery includes a rocker, a double rocker, a mounting frame, a holding plate (all the same color), the radio module and an adhesive foil. Wireless buttons with a rocker switch can send two signal signals that can be evaluated: Press rocker on top and press rocker on the bottom. Two-rocker wireless switches can send four signal evaluable signals: Press two rockers up and down. The holding plate can be screwed to a level surface or glued to the wall, on glass or on furniture with the accompanying adhesive film. The sleeves in the box are used for screw fastening via a 55mm switch box. The double rocker is snapped onto the radio module at the factory. If this is to be replaced by the large rocker, then pull off the rocker halves forwards and do not bend toward the center. Then snap the large rocker in such a way that their markings 0 and I on the back correspond to the radio module. When gluing on, first glue on the retaining plate set with frame and mounting frame - with the catches on top and bottom. Then clip the radio module set with rocker - marking 0 on the rear side always at the top - into place. Before screwing on, loosen the frame and mounting frame from the retaining plate. To do this, press the catches of the retaining plate outwards. Then screw on the retaining plate - with the catches at the top and bottom -, snap the frame onto the mounting frame and clip the radio module set with rocker - marking 0 on the rear side always on top. For screw fixing, we recommend sheet-metal countersunk screws 2.9x25mm, DIN 7982 C. With plugs 5x25mm as well as on 55mm switch boxes. The radio module contained in the radio button can be programd in encrypted form in all the actuators of the series 61 and 71, as well as in the FAM14 according to the operating instructions. For this purpose, the wireless key encryption rocker FTVW is required. Cipherable actuators carry the key pictogram.
