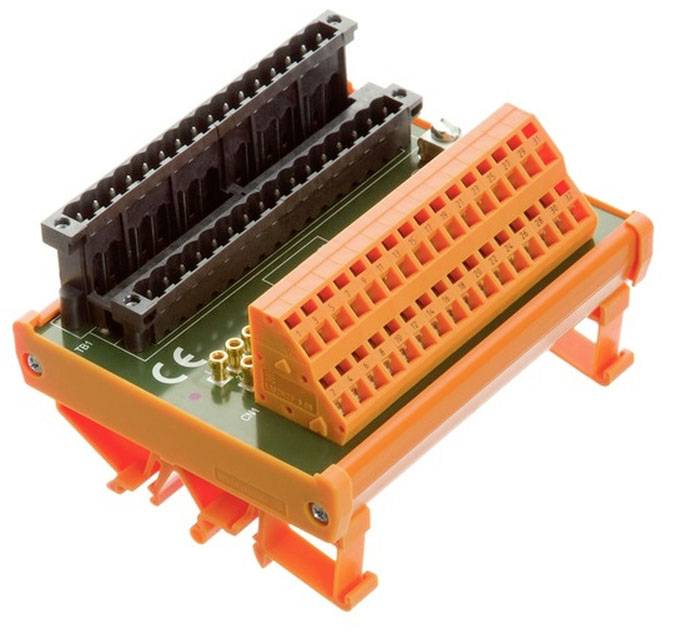

FTA-C300-16AO-TP-Z Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
32
Connection
Pull spring
AWG
24 - 14
Stripping length (max.)
7.5 mm
Technical specifications
- Number of poles (control side): 32-pin socket
- Overvoltage category: III
- Pollution degree: 2
- clamping range, min.: 0.13 mm²
- Separation per channel: No
- Switch: No
- Fuse by channel: No
- Supply voltage LED status: No
- Voltage supply fuse: No
- Operating voltage: 24 V DC ± 10%
- Maximum current per channel: 1 A
- Wiring system: 1-wire
- Product type
Transfer module
- Total no. of pins
32
- Connection
Pull spring
24 - 14
- Stripping length (max.)
7.5 mm
- Dim
(L x W x H) 105 x 86 x 66 mm
- Connector (field)
Screws
- Connector (control)
Pin strip
- Weight
150 g
- Content
1 pc(s)
- Number of pins
32
- Width
86 mm
- Height
66 mm
- Length
105 mm
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- UKCA
yes
