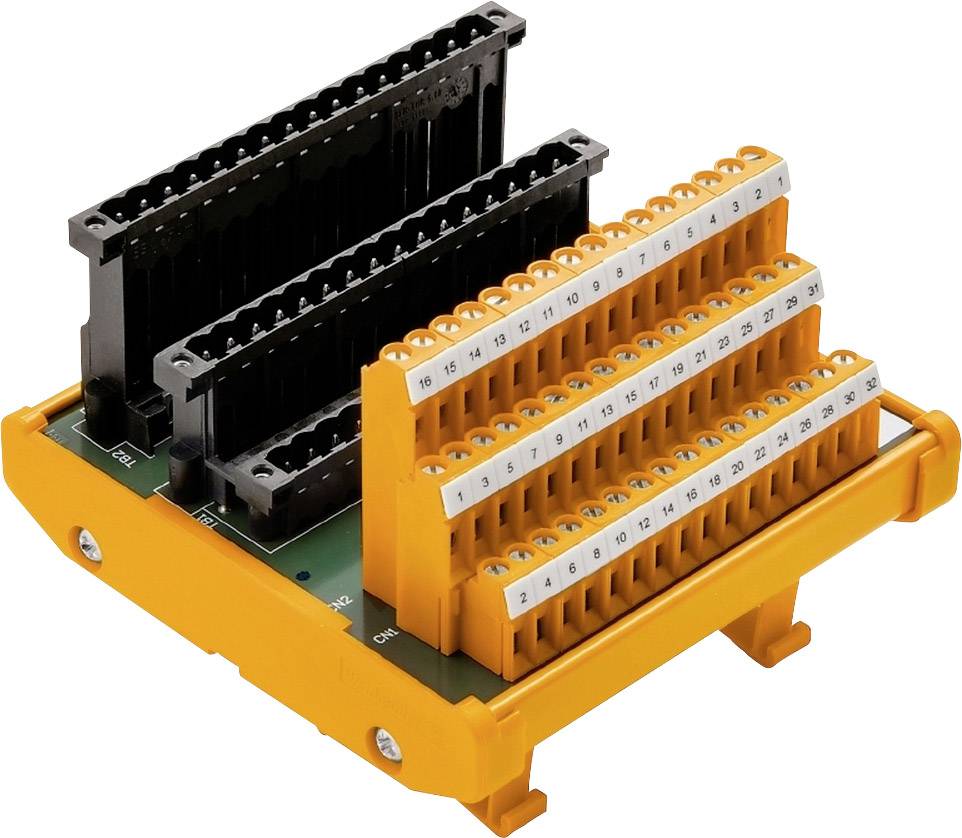

FTA-C300-16DAI-SH-S Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
48
Connection
Screws
AWG
26 - 12
Stripping length (max.)
6 mm
Technical specifications
- Number of poles (control side): 48-pin socket
- Overvoltage category: II
- Pollution degree: 2
- clamping range, min.: 0.13 mm²
- Separation per channel: No
- Switch: No
- Fuse by channel: No
- Supply voltage LED status: No
- Voltage supply fuse: No
- Operating voltage: 24 V DC ± 10%
- Maximum current per channel: 1.5 A
- Wiring system: 1-wire
- Product type
Transfer module
- Total no. of pins
48
- Connection
Screws
26 - 12
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 105 x 109 x 85 mm
- Connector (field)
Screws
- Connector (control)
Pin strip
- Weight
328 g
- Content
1 pc(s)
- Number of pins
48
- Width
109 mm
- Height
85 mm
- Length
105 mm
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (max.)
6 mm²
- UKCA
yes
