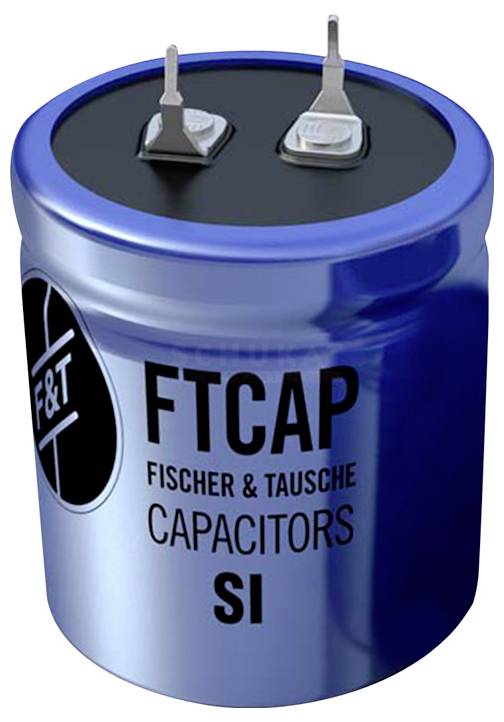

FTCAP Electrolytic capacitor Radial lead 10 mm 680 µF 450 V 20 % (Ø x H) 35 mm x 50.0 mm 1 pc(s)
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
680 µF
Nominal voltage
450 V
CS
10 mm
Datasheet (PDF)
Highlights & Details
FTCAP electrolytic capacitor 680UF 450V 35x50mm
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series SIH
- Design_1: Radial
- Applications: Hi-Fi, computer, industrial, tube amplifier
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: Snap-in
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: All internal contacts welded
- Product with Hohem CV
- High reliability
- Ultra compact
- Pitch_1:10 mm
- Climate category IEC 40/105/56
- Capacity 680 µF
- Capacity_1: 680
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.07
- Apparent resistance 0.131 Ohm
- Nominal voltage DC 450 V
- Lifetime_1: 5,000 h
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
10 mm
- Dim
(Ø x H) 35 mm x 50.0 mm
- Capacity (elec.)
680 µF
- Nominal voltage
450 V
- Tolerance ±
20 %
- Height
50.0 mm
- (Ø)
35 mm
- Content
1 pc(s)
- Material
Aluminium
- Width
35 mm
- Length
50.0 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
SIH68145035050
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-40 °C
- Certification marks
IEC 60384-4
Documents & Downloads
Datasheet
Datasheet 3462918 FTCAP Electrolytic capacitor Radial lead 10 mm 680 µF 450 V 20 % (Ø x H) 35 mm x 50.0 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3462918 FTCAP Electrolytic capacitor Radial lead 10 mm 680 µF 450 V 20 % (Ø x H) 35 mm x 50.0 mm 1 pc(s)
Description
FT Elko Series SIH
