FTCAP GMB15304035054 / 1013054 Electrolytic capacitor Screw-type 15000 µF 40 V (Ø x L) 35 mm x 54 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Screw-type
Capacity (elec.)
15000 µF
Nominal voltage
40 V
Dim
(Ø x L) 35 mm x 54 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 20.16
3
5% = € 1.00
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Electrolytic capacitor, 15000 µF, 40 V (DC), -10/+30 %, cup, Ø 35 mm
Our service for you
Technical specifications
- Tolerance -10/+30 %
- Product type
Electrolytic capacitor
- Type
Screw-type
- Dim
(Ø x L) 35 mm x 54 mm
- Capacity (elec.)
15000 µF
- Nominal voltage
40 V
- (Ø)
35 mm
- Content
1 pc(s)
- Length
54 mm
- RoHS-compliant
Yes
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Type
GMB15304035054 / 1013054
Documents & Downloads
Datasheet
Datasheet 3046204 FTCAP GMB15304035054 / 1013054 Electrolytic capacitor Screw-type 15000 µF 40 V (Ø x L) 35 mm x 54 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046204 FTCAP GMB15304035054 / 1013054 Electrolytic capacitor Screw-type 15000 µF 40 V (Ø x L) 35 mm x 54 mm 1 pc(s)
Description

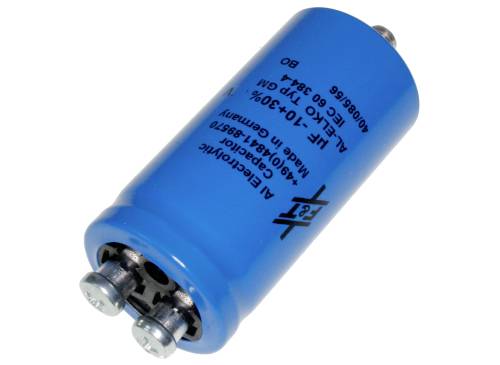

Electrolytic capacitor in aluminum housing type FTCAP GMB. With ground threaded bolts and M 5 thread connections With nominal voltage 40 VDC. Note: Due to the internal design, the cup is not potential-free. Therefore, it is absolutely necessary to use insulating material when mounting on conductive surfaces.
