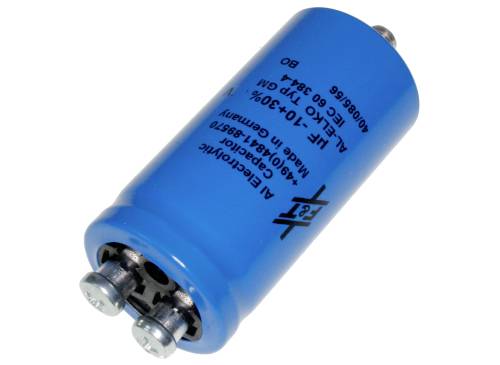

FTCAP GMB15310050100 / 1013072 Electrolytic capacitor Screw-type 15000 µF 100 V (Ø x L) 50 mm x 100 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Screw-type
Capacity (elec.)
15000 µF
Nominal voltage
100 V
Dim
(Ø x L) 50 mm x 100 mm
Datasheet (PDF)
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Electrolytic capacitor, 15000 µF, 100 V (DC), -10/+30 %, cup, Ø 50 mm
Our service for you
Technical specifications
- Tolerance -10/+30 %
- Ripple current 9.2 A
- ESR (equivalent series resistance) 11 mΩ
- Product type
Electrolytic capacitor
- Type
Screw-type
- Dim
(Ø x L) 50 mm x 100 mm
- Capacity (elec.)
15000 µF
- Nominal voltage
100 V
- (Ø)
50 mm
- Content
1 pc(s)
- Length
100 mm
- RoHS-compliant
Yes
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Type
GMB15310050100 / 1013072
Documents & Downloads
Datasheet
Datasheet 3046216 FTCAP GMB15310050100 / 1013072 Electrolytic capacitor Screw-type 15000 µF 100 V (Ø x L) 50 mm x 100 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046216 FTCAP GMB15310050100 / 1013072 Electrolytic capacitor Screw-type 15000 µF 100 V (Ø x L) 50 mm x 100 mm 1 pc(s)
Description
Electrolytic capacitor in aluminum housing type FTCAP GMB. With ground threaded bolts and M 5 thread connections With nominal voltage 100 VDC. Note: Due to the internal design, the cup is not potential-free. Therefore, it is absolutely necessary to use insulating material when mounting on conductive surfaces.
