FTCAP LFB22204025036 / 1014274 Electrolytic capacitor Solder tags 2200 µF 40 V (Ø x L) 25 mm x 36 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Solder tags
Capacity (elec.)
2200 µF
Nominal voltage
40 V
Dim
(Ø x L) 25 mm x 36 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Highlights & Details
Electrolytic capacitor, 2200 µF, 40 V (DC), -10/+30 %, cup, Ø 25 mm
Our service for you
Technical specifications
- Tolerance -10/+30 %
- Ripple current 2.2 A
- ESR (equivalent series resistance) 60 mΩ
- Product type
Electrolytic capacitor
- Type
Solder tags
- Dim
(Ø x L) 25 mm x 36 mm
- Capacity (elec.)
2200 µF
- Nominal voltage
40 V
- (Ø)
25 mm
- Content
1 pc(s)
- Length
36 mm
- RoHS-compliant
Yes
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Type
LFB22204025036 / 1014274
Documents & Downloads
Datasheet
Datasheet 3046225 FTCAP LFB22204025036 / 1014274 Electrolytic capacitor Solder tags 2200 µF 40 V (Ø x L) 25 mm x 36 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046225 FTCAP LFB22204025036 / 1014274 Electrolytic capacitor Solder tags 2200 µF 40 V (Ø x L) 25 mm x 36 mm 1 pc(s)
Description

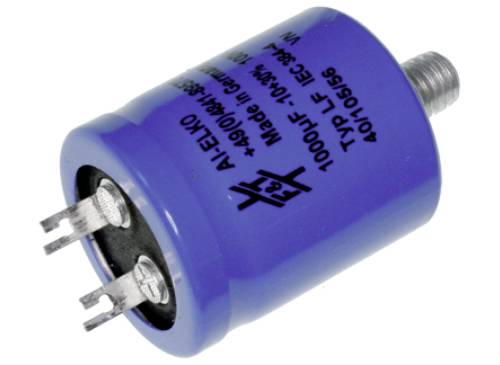

Electrolytic capacitor in aluminum housing type FTCAP LFB. Poled, with base threaded bolts and solder tag connections With nominal voltage 40 VDC. Note: Due to the internal design, the cup is not potential-free. Therefore, it is absolutely necessary to use insulating material when mounting on conductive surfaces.
