Buy FTD14 Eltako RS485 Bus telegram duplicator Rack

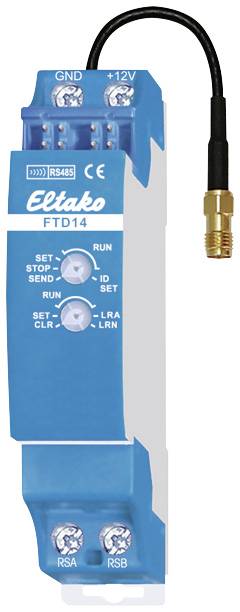

A blue Eltako FTD14 radio transceiver with connection cable, switches and LEDs. Manages and controls radio signals in buildings.

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

42 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 77.30 / piece)

€ 77.30

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Bus system wireless bus

Product type: Bus telegram duplicator

Series: Eltako

: IP20

Mounting type: Rack

Data transfer (Smart Home): RS485

Hub: Not required, optional for remote access

: n.rel.

: DRA (DIN-rail adapter)

: 60

: 60

: FALSE

: TRUE

: FALSE

: TRUE

: 1

: Other

: FALSE

: FALSE

: IP20

: FALSE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2637564 FTD14 Eltako RS485 Bus telegram duplicator Rack

User & Safety Instructions

User & Safety Instructions 2637564 FTD14 Eltako RS485 Bus telegram duplicator Rack

Description

Telegram duplicator for the Eltako-RS485 bus with exchangeable antenna. Standby loss of only 0.5 watt. Connection to the Eltako RS485 bus. Cross-wiring bus and power supply with jumper. Operation in conjunction with FAM14 or FTS14KS. The telegrams of trained IDs are duplicated and sent directly to the Eltako building radio with a new output ID. These radio telegrams can specifically be taught in decentralized actuators. Altogether 120 storage spaces are available. The upper rotary switch is used for the targeted transmission of a radio message frame in accordance with the operating instructions. In normal operation it is set to RUN. The lower rotary switch is used for programming and deleting IDs according to the operating instructions. In normal operation it is set to RUN. The red LED under the upper rotary switch accompanies the programming process. The green LED below the lower rotary switch lights up briefly when a radio telegram is transmitted.

This text is machine translated.
