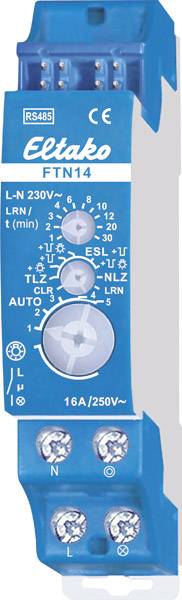

FTN14 Eltako RS485 Actuator DIN rail Switching capacity (max.) 2000 W

Staircase light delayed shut-off switch, 1 NO non-potential-free 16A/250V AC, incandescent lamps up to 2000W, off-delay with off-warning and button continuous light can be switched on. Also for energy saving lamps ESL up to 200 Watt. Bidirectional. Stand-by loss only 0.2 watt. Series installation device for mounting on mounting rail. Connection to the Eltako RS485 bus. Cross-wiring bus and power supply with jumper. Switching voltage 230V Contact switching in zero crossing to protect the contacts and consumers. If the supply voltage fails, the switching state is retained. When the supply voltage is repeated, the time sequence begins, at which the end is switched off. In addition to the bus control input, this staircase light delayed-action switch can also be locally controlled with a conventional 230V control button. Glow lamp current up to 5mA, depending on the ignition voltage of the glow lamps. The upper rotary switch LRN is required for programming. Afterwards, the off-delay is set here for 1 to 30 minutes. With the middle rotary switch, one or more central control buttons are taught-in in the LRN radio button and/or radio Bewegungs­Helligkeitssensoren FBH position. Then the desired function of this staircase light delayed-action switch is selected: NLS = delayed-action switch with adjustable on-delay. The LED below the upper rotary switch accompanies the programming process according to the operating instructions and indicates control commands during operation by short flashing.
