FTS14KS Eltako Interface module DIN rail

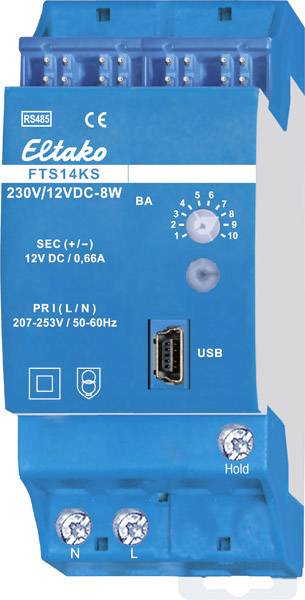

FTS14 communication interface for the Eltako-RS485 bus with integrated switching power supply 12V DC/8W. Stand-by loss only 0.6 Watt. Supply voltage 230V. The delivery includes 2 terminating resistors for attachment with imprint ?, 1/2 TE, 3 jumpers 1 TE (of which 1 replacement), 2 jumpers 1/2 TE (of which 1 replacement) and a jumper assembly tool SMW14. Cross-wiring bus and power supply with jumper. The enclosed second terminating resistor must be attached to the last actuator. Mini-USB for connecting a PC for creating a device list, for configuring the actuators with the help of the PC tool PCT14 and for data backup. A legalization code for downloading the PCT14 from the Eltako homepage is enclosed with the FTS14KS. All FTS14EM and, if necessary, FGW14 gateways are connected to the Hold terminal when they connect a PC to the RS232 bus. The operating mode rotary switch BA can be used to set 10 different operating modes according to the operating instructions. The LED below lights up green when the PC tool PCT14 has a connection her­gestellt. When reading or writing data, the green LED flickers. The green LED goes out when the PC tool PCT14 has been disconnected. At a load greater than 50% of the rated power of 8W, a half-division ventilation distance with the spacer DS14 is required on the left-hand side.
