fuba DAA 850 A SAT antenna 85 cm Reflective material: Aluminium Anthracite
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Total (€ 147.05 / piece)
€
Highlights & Details
Fuba 85 cm SAT-reflector anthracite

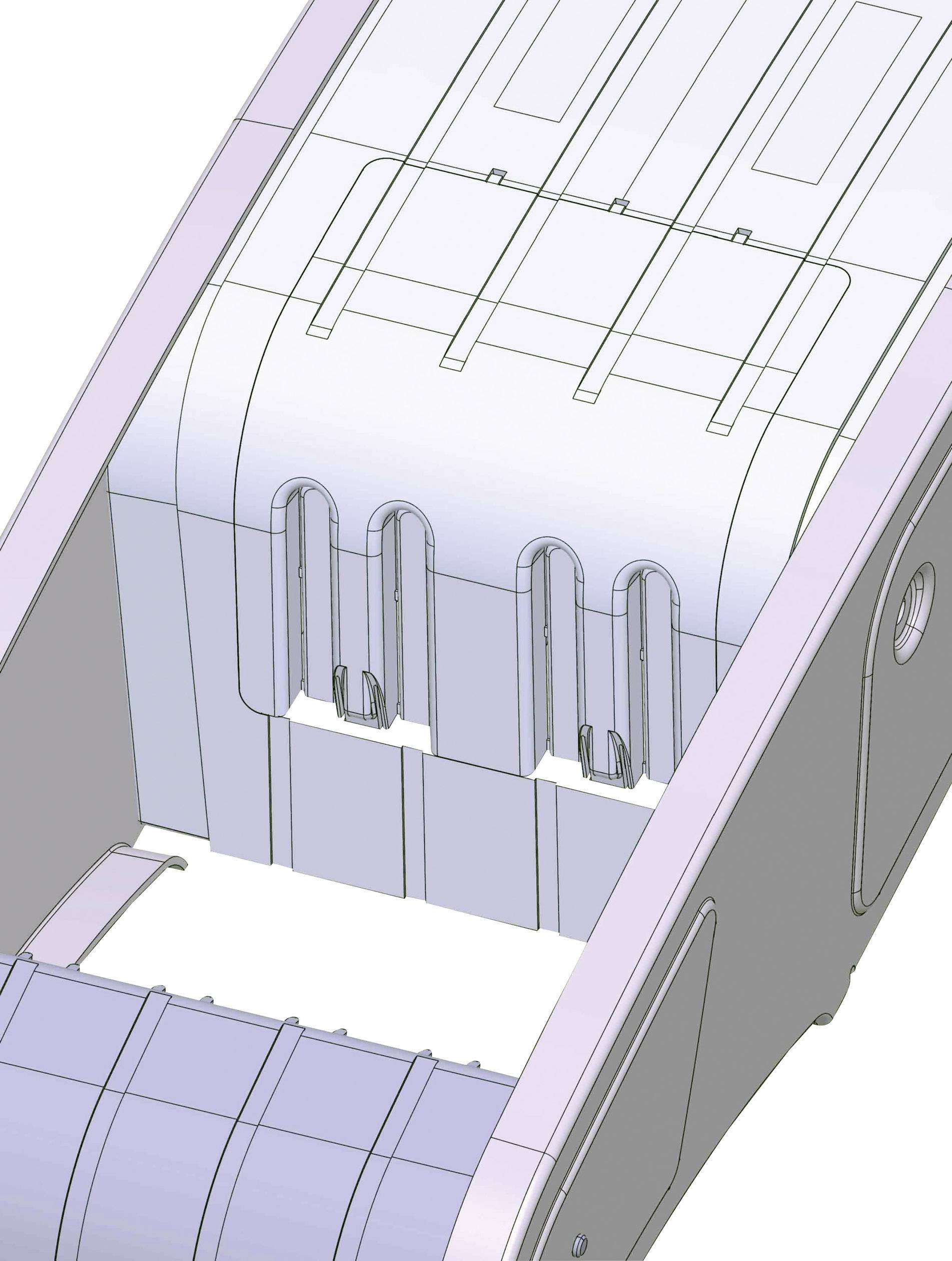

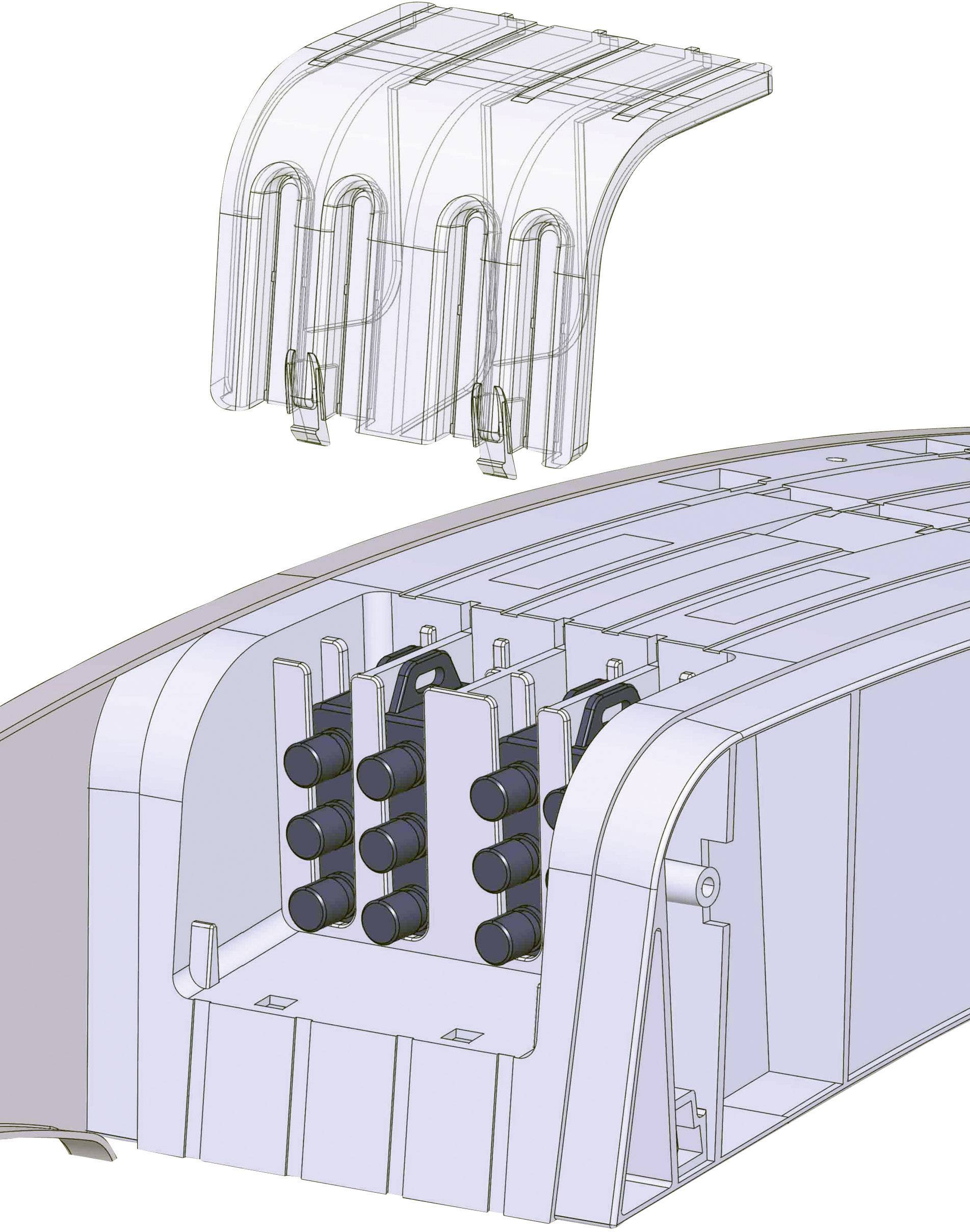

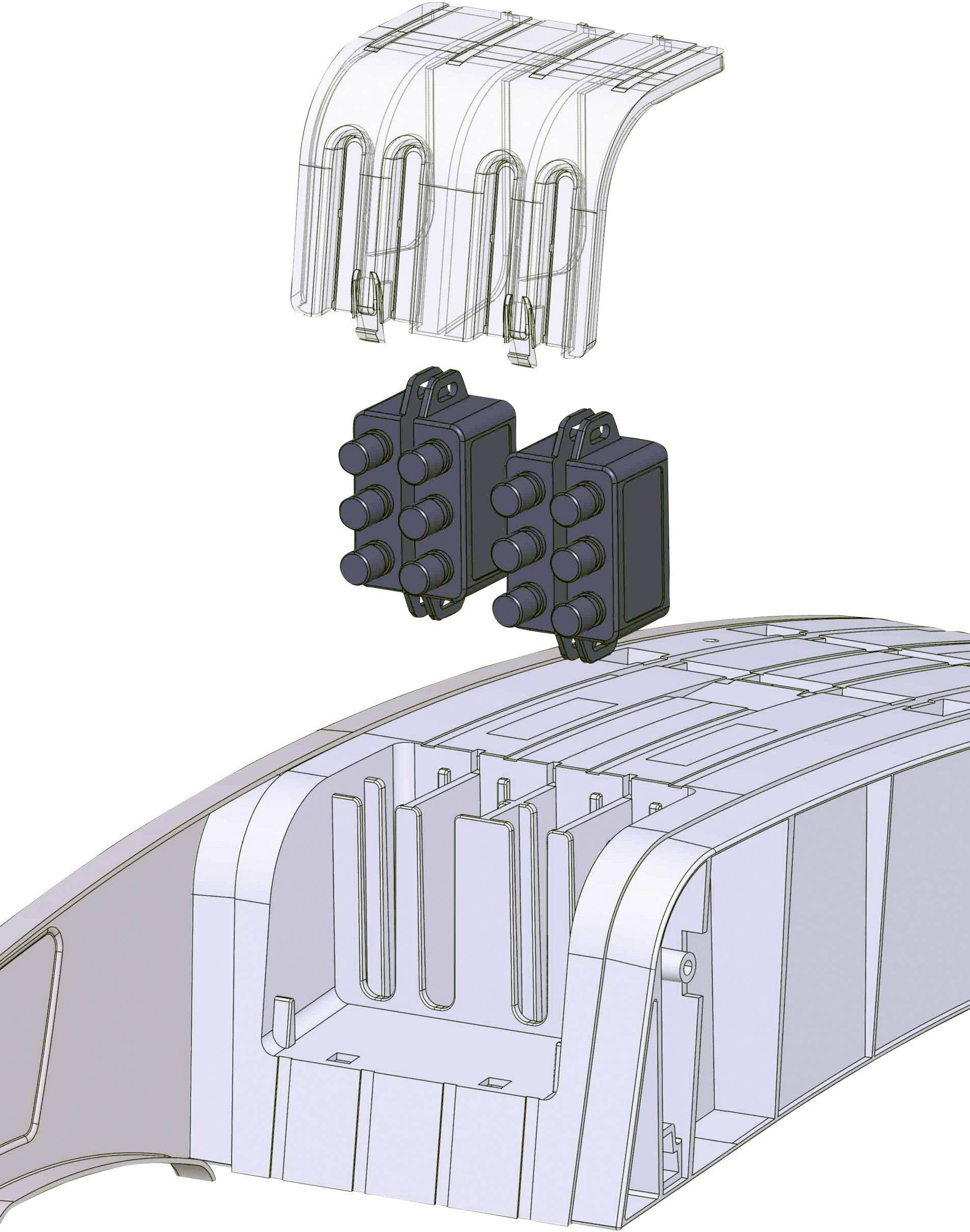

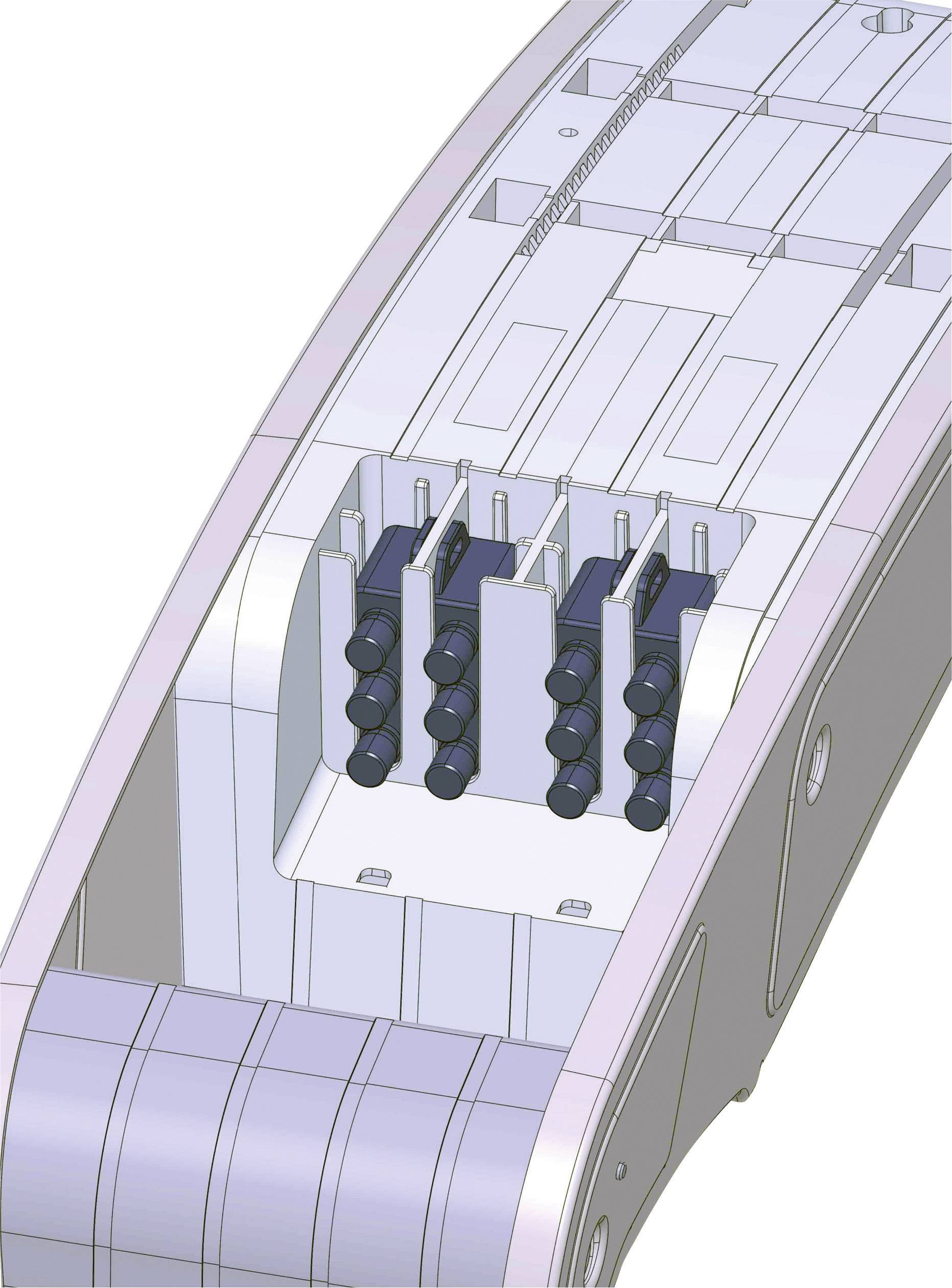

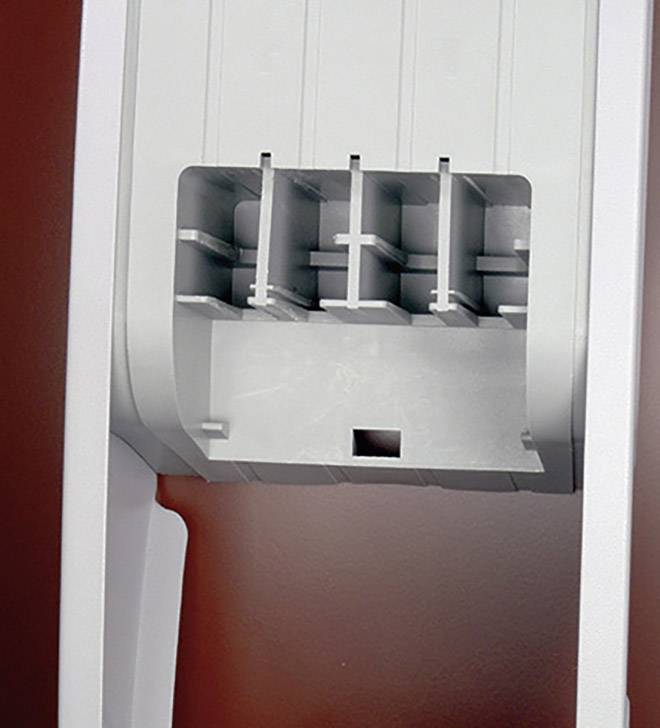

- DiSEqC-switch compartment
Technical specifications
- Peak width at half-height at 12.75 GHz<, 2.2°
- Cross polarization coupling> ,27 dB
- Offset-angle21.5 °
- Wind load at max. 20 m/s: 21.3 kg
- Wind load at max. 40 m/s: 85.4 kg
- Wind load at max. 60 m/s: 192.1 kg
- Elevation setup: 0° - 90° (0° - 42° at mast installation)
- Product type
SAT antenna
- Dish diameter
85 cm
- Reflective material
Aluminium
- LNB feed size
40 mm
- Pole mount (min.)
26 mm
- Pole mount (max.)
75 mm
- Gain
39.50 dB
- Factory colour
Anthracite
Documents & Downloads
Datasheet
Datasheet 941586 fuba DAA 850 A SAT antenna 85 cm Reflective material: Aluminium Anthracite
User & Safety Instructions
User & Safety Instructions 941586 fuba DAA 850 A SAT antenna 85 cm Reflective material: Aluminium Anthracite
Information
Information 941586 fuba DAA 850 A SAT antenna 85 cm Reflective material: Aluminium Anthracite
Description
High-end aluminium satellite antenna with 10 year guarantee on mechanical parts and reception power. The antennas are pre-assembled. Due to the high stability, year-round, disturbance-free satellite reception is guaranteed.
Features
- Aluminium reflector material: aluminium
- LNB-holder: aluminium pressure die-cast
- Antenna back: galvanized steel with plastic compounds
- Screw sets: stainless steel
- Colour of the back part: gray, regardless of the reflector colour
- Proofed against wind load and resistance to weathering
- All parts are made of extremely corrosion-resistant and high-strength material.
- High quality and disturbance-free satellite reception for many years.
Scope of delivery
- Fuba dish assembled
- Fixings
- User manual.
Hints
Delivery without LNB!
