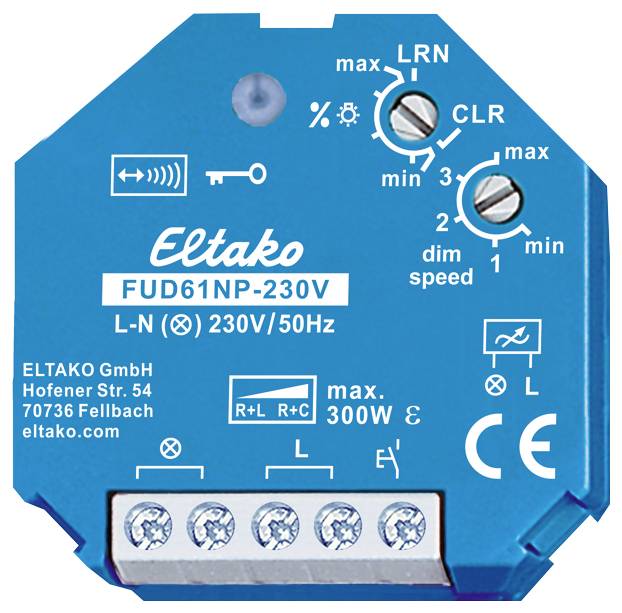

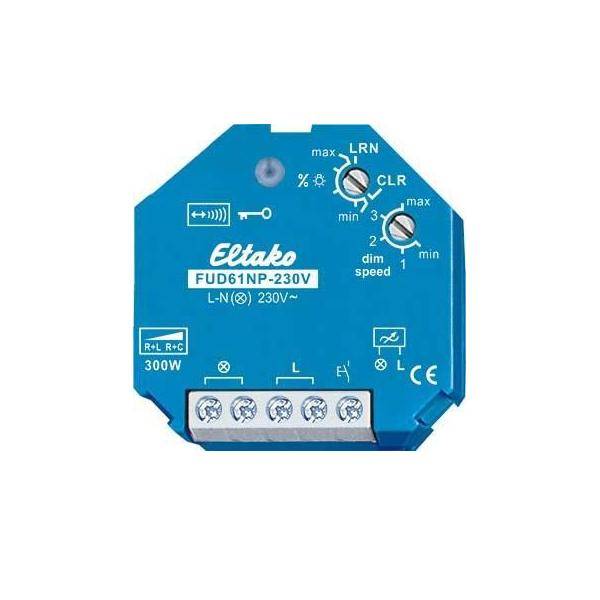

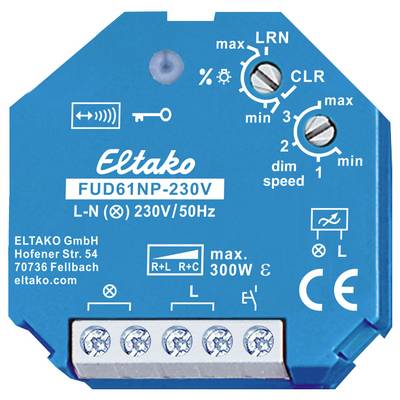

FUD61NP-230V Eltako Wireless Actuator Dimmer Flush mount

Without N-connection, Power MOSFET to 300W. Standby loss of only 0.7 watt. Adjustable minimum brightness and dimming speed. With kid's room and snooze circuit. Light scenes can be trained. Encrypted radio, bi-directional radio and repeater function can be connected. For panel mounting. 45 mm long, 45 mm wide, 33 mm deep. Universal dimming switch for R, L and C loads up to 300W, depending on the ventilation conditions. Automatic detection of the load start R+L or R+C. Without an N-connection and thus suitable for mounting directly behind the light switch, even if there is no N-cable available. Not suitable for 230V-LED-lamps and energy-saving lamps ESL, please use the dimmer FUD61NPN with N-connection. Supply, switching and control voltage locally 230V. Minimum load only 40 W Switching at zero point with soft on and soft off for saving lamp. The adjusted brightness level is saved when turning it off (MEMORY) In the event of a power failure, the switch position is saved and, if necessary, switched on when the supply voltage is restored. Automatic electronic overload protection and overheating shut-off. Using the %lamp rotary switch, you can set the minimum brightness (fully dimmed). Up to 35 radio buttons are assigned in the LRN position, one or more central control buttons. The dimming speed can be adjusted with the DIM-speed rotary switch. Simultaneously, the duration of soft-on and soft-off is changed. In addition to the radio control input via an internal antenna, this universal dimmer switch can also be controlled locally with a conventional 230V control button that may be installed before. Encrypted sensors can be taught in. Bidirectional radio and/or a repeater function can be switched on. Each status change as well as received central control telegrams are then confirmed with a radio telegram. This radio telegram can be taught in other actors like FSR61NP-230V, the GFVS software and in universal displays. The GFVS software also shows the current dimming value in %. The wireless switches can be taught in either as direction button or as universal button: Switch on and dim on one side as the direction button and switch off and dim off on the other side. Double-clicking on the power-on page triggers the automatic dimming up to full brightness at dim-speed speed. The snooze function is activated by a double click on the switch-off side. The children's room service is performed on the switch-on side. The direction reversal is done as universal button by briefly letting go of the button. Short control commands switch on/off. Lighting zone control, switching for children's rooms and snooze according to operating instructions. The LED accompanies the programming process according to the operating instructions and indicates radio control commands during operation by a short flash.
