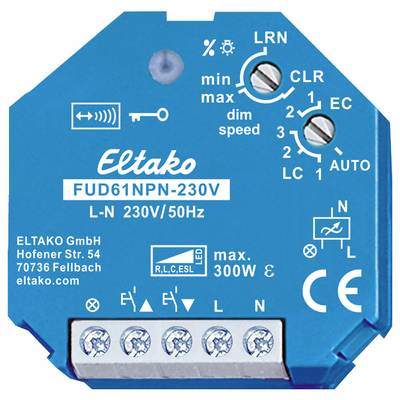

FUD61NPN-230V Eltako Wireless Actuator Dimmer Flush mount

Universal dimming switch, Power MOSFET to 300W. Automatic lamp detection. Standby loss of only 0.7 watt. Adjustable minimum brightness or dimming speed. With switching between children's room, snooze and light alarm Additionally with lighting scene control. Encrypted radio, bi-directional radio and repeater function can be connected. For panel mounting. 45 mm long, 45 mm wide, 33 mm deep. Universal dimming switch for lamps up to 300W, depending on the ventilation conditions. Dimmable 230V-LED-lamps and dimmable energy saving lamps ESL is additionally dependent on the lamp electronics and the dimming type. Switching at zero point with soft on and soft off for saving lamp. Supply, switching and control voltage locally 230V. No minimum load required. The adjusted brightness level is saved when turning it off (MEMORY) In the event of a power failure, the switch position and the brightness level are saved and, if necessary, switched on when the supply voltage is restored. Automatic electronic overload protection and overheating shut-off. Encrypted sensors can be taught in. Bidirectional radio and/or a repeater function can be switched on. Each status change as well as received central control telegrams are then confirmed with a radio telegram. This radio telegram can be taught in other actors like FSR61NP-230V, the GFVS software and in universal displays. The GFVS software also shows the current dimming value in %. With the upper %lamp/dim speed rotary switch you can either set the minimum brightness (fully dimmed) or the dimming speed. The lower rotary switch determines during operation whether the automatic lamp detection should work or special Comfort positions: AUTO allows the dimming of all lamp types. LC1 is a Comfort position for dimmable 230 V LED lamps, which cannot be dimmed far enough on AUTO (phase section) due to the design and therefore have to be forced to phase control. LC2 and LC3 are comfort positions for dimmable 230V LED lamps such as LC1, but with other dimming curves. EC1 is a Comfort-position for energy-saving lamps, which need to be switched on with an increased voltage due to the design, so that they can also be dimmed up safely again. EC2 is a comfort position for energy-saving lamps, which cannot be switched on again due to its construction characteristics. Therefore, Memory is turned off in this position. Inductive (wound) transformers must not be used in positions LC1, LC2, LC3, EC1 and EC2. Furthermore, the maximum number of dimmable LED lamps may be lower than IN THE AUTO setting due to their design. The buttons can be taught in either as direction switches or as universal switches: Switch-on and dim-up as direction buttons on one side and switch-off and dim-off on the other side. Double-clicking on the power-on page triggers the automatic dimming up to full brightness at dim-speed speed. The snooze function is activated by a double click on the switch-off side. The children's room service is performed on the switch-on side. The direction reversal is done as universal button by briefly letting go of the button. Light scene control, light switching, children's bedroom circuit and snooze circuit in accordance with operating instructions. The LED accompanies the programming process according to the operating instructions and indicates radio control commands during operation by a short flash.

This text is machine translated.
