Fukushima Futaba MPC70 0R33 K HV resistor 0.33 Ω Radial lead MPC70 2 W 10 % 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
HV resistor
Resistance
0.33 Ω
Power rating
2 W
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Fukushima Futaba metal tape resistor 2W 10% R33
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series MPC
- Delivery form: Loose
- Diameter, connection wire 0.6 mm
- Solder-ability 350 °C / 3 s.
- Resistance tolerance: ±10 %
- Rated output: 2 W
- Packaging type
Bulk
- Product type
HV resistor
- Type
Radial lead
- Type
MPC70
- Resistance
0.33 Ω
- Power rating
2 W
- Tolerance ±
10 %
- Temperature coefficient
350 ppm/°C
- Length
13.0 mm
- Width
4.0 mm
- Height
8.0 mm
- (Ø)
0.6 mm
- CS
9 mm
- Insulation resistance
10 MΩ
- Content
1 pc(s)
- Dim
(Ø x H) 0.6 mm x 8.0 mm
- RoHS-compliant
Yes
- Type
MPC70 0R33 K
- Mounting type
PCB mount
- Operating temperature (max.)
200 °C
- Operating temperature (min.)
-25 °C
- Certification marks
JIS C5202
Documents & Downloads
Datasheet
Datasheet 3463648 Fukushima Futaba MPC70 0R33 K HV resistor 0.33 Ω Radial lead MPC70 2 W 10 % 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3463648 Fukushima Futaba MPC70 0R33 K HV resistor 0.33 Ω Radial lead MPC70 2 W 10 % 1 pc(s) Bulk
Description

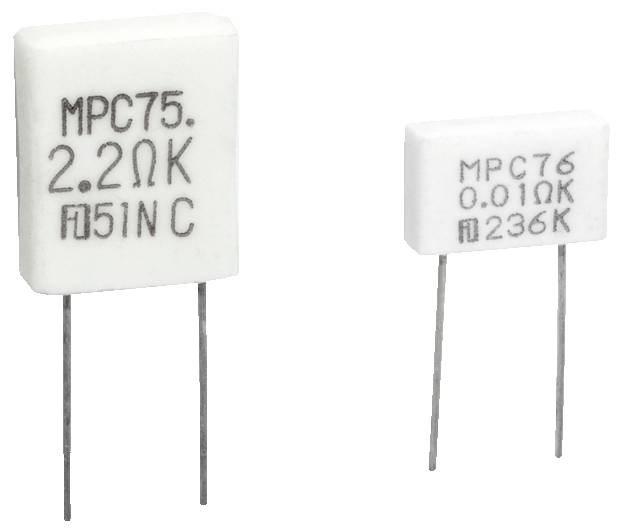

Metal strip and performance resistors
This text is machine translated.
This text is machine translated.
Features
- Metal strap-Resistance
- Resistance element from meanders-shaped punched metal tape (special alloy from Ni/Cr/Fe/Cu)
- Very low inductive resistance
- Even distribution of the temperature via the resistance element
- Hermetically sealed ceramic housing
- Empty spaces filled with ceramic powder using special cement
- Almost even heat dissipation over the entire body
- MPC74_: Pulse-proof
