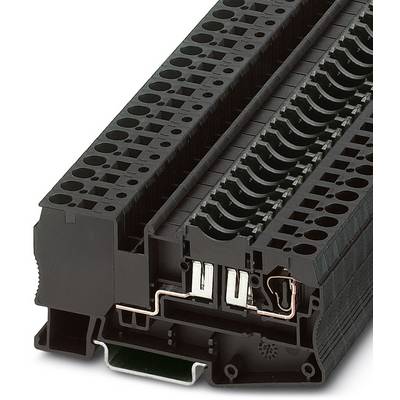

Fuse modular terminal block ST 4-FSI/C 3036372 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fuse serial terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 6.64 / piece)
€ 331.93
plus VAT.
14-day return policy included
Highlights & Details
Fuse modular terminal block ST 4-FSI/C
- ST 4-FSI/C
Technical specifications
- Packaging type
Piece
- Product type
Fuse serial terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
28
- AWG max.
10
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Black
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
400 V
- Stripping length (max.)
10 mm
- Manufacturer part #
3036372
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ST 4-FSI/C
- Dim
(L x W x H) 86.5 x 8.2 x 43.5 mm
- Width
8.2 mm
- Height
43.5 mm
- Length
86.5 mm
- Contamination level
3
- Flammability rating
V0
- Connector colour
Black
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565642 Fuse modular terminal block ST 4-FSI/C 3036372 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565642 Fuse modular terminal block ST 4-FSI/C 3036372 Phoenix Contact
Description
Fuse modular terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm²- 6 mm², AWG: 28 - 10, Nominal current: 30 A, Nominal voltage: 400 V, Width: 8.2 mm, Fuse type: C, Fuse type: Flat, Mounting type: NS 35/7,5, NS 35/15, Color: black
