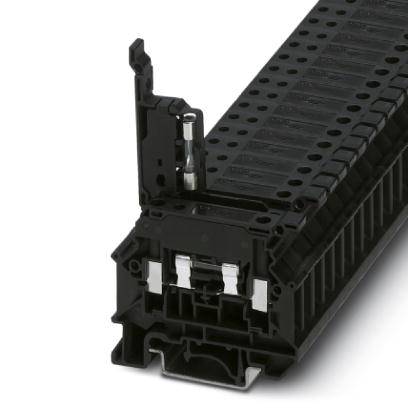

Fuse modular terminal block UK 5-HESI N 3000539 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fuse serial terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 7.98 / piece)
€ 399.16
plus VAT.
14-day return policy included
Highlights & Details
Fuse modular terminal block UK 5-HESI N
- UK 5-HESI N
Technical specifications
- Packaging type
Piece
- Product type
Fuse serial terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
8.2 mm
- No. of rows
1
- Pins per row
1
- Number of pins
2
- Factory colour
Black
- Nominal current
6.3 A
- Nominal current - rounded value
6.3 A
- Nominal voltage
500 V
- Stripping length (max.)
8 mm
- Manufacturer part #
3000539
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UK 5-HESI N
- Dim
(L x W x H) 58 x 8.2 x 50 mm
- Width
8.2 mm
- Height
50 mm
- Length
58 mm
- Flammability rating
V0
- Connector colour
Black
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 715531 Fuse modular terminal block UK 5-HESI N 3000539 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 715531 Fuse modular terminal block UK 5-HESI N 3000539 Phoenix Contact
Description
Fuse modular terminal block, Number of positions: 1, Connection method: Screw connection, Cross section: 0.2 mm²- 6 mm², AWG: 24 - 10, Nominal current: 6.3 A, Nominal voltage: 500 V, Width: 8.2 mm, Fuse type: G / 5 x 20, Fuse type: Glass, Mounting type: NS 35/7,5, NS 35/15, NS 32, Color: black
