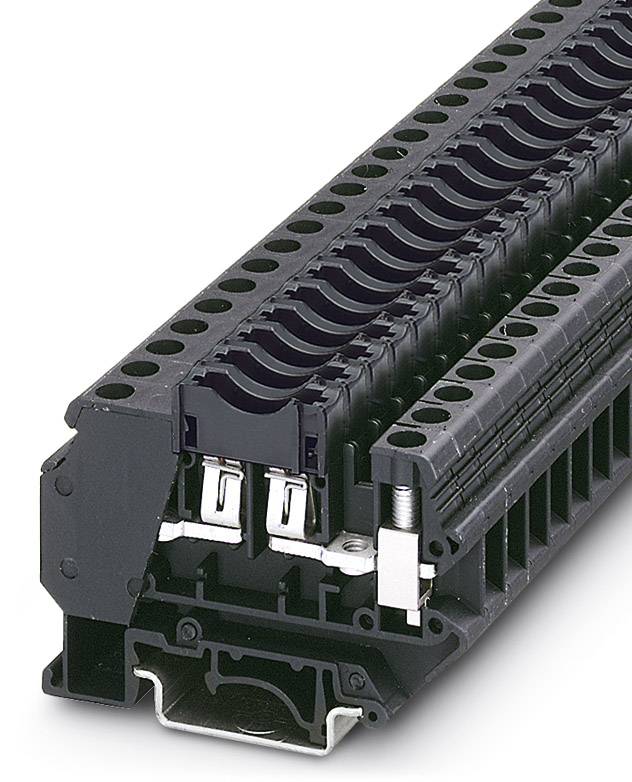

Fuse modular terminal block UK 6-FSI/C-LED12 3001925 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Fuse serial terminal
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
30 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 15.55 / piece)
€ 777.31
plus VAT.
14-day return policy included
Fuse modular terminal block UK 6-FSI/C-LED12
Technical specifications
- Product type
Fuse serial terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Black
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
250 V
- Stripping length (max.)
10 mm
- Manufacturer part #
3001925
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UK 6-FSI/C-LED12
- Dim
(W x H) 8.2 mm x 52 mm
- Width
8.2 mm
- Height
52 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 586195 Fuse modular terminal block UK 6-FSI/C-LED12 3001925 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 586195 Fuse modular terminal block UK 6-FSI/C-LED12 3001925 Phoenix Contact
Description
Flat-type fuse terminal block, cross section: 0.2 - 6 mm², AWG: 26 - 8, width: 8.2 mm, color: black, with light indicator, voltage light indicator: 12 V DC, current light indicator: 2 mA
