Fusion splicer FS-S60-Kit Trend Networks FiberMASTER S60 Thermo
EAN:
Part number:
Item no:
Number
Total (€ 6,474.79 / piece)
€ 6,474.79
plus VAT.
14-day return policy included
Highlights & Details
FiberMaster S60 Thermo-Kit splicebox
- 6 motors/3 axles
- Spill time up to 6 seconds
- Heating time approx. 18 seconds
- 5 inches LCD touch display
- 40 standard/60 user-defined spliceprograms
- Measured value storage for up to 10,000 results
- Can be used for MM/SM/DS/NZDS/EDF fibers
- Thermal glass fiber insulation stripper for single or ribbon fibers for non-destructive thermal stripping
- 2x 250um and 2x 900um cartridge holder
- Shrink-Splint protection 100x 40mm and 100x 60mm
- 1 Year Sapphire Service Contract
Technical specifications
- Product type
Fusion splicer
- Display
LCD
- Splicing mode
Automatic
- Burns per electrode
3000
- Dim
(L x W x H) 190 x 130 x 135 mm
- Weight
1.9 kg
- Width
130 mm
- Height
135 mm
- Length
190 mm
- Splicing time
8 s
- Type
FiberMASTER S60 Thermo
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729206 Fusion splicer FS-S60-Kit Trend Networks FiberMASTER S60 Thermo
Description
FiberMASTER S60 thermal kit includes core fiber splice FiberMASTER S60 - 6 engines/3 axes R301-S60K for the manufacture of reliable, long-term fiber links including 1 year sapphire service contract for the complete protection of the fiber splice unit, Thermal fiber insulation stripper for single or flat-band fibers in a robust hand format especially for the non-destructive thermal stripping of single and ribbon cables with up to 12 fibers incl. 2x 250um and 2x 900um magnetic holder R301-HOLDERKIT, shrink splice-protection 40MM R301-Shrink-40MM 100 pieces and 60mm R301-Shrink-60mm 100 pieces. All items of the S60 Thermo-Kit can be ordered separately.
This text is machine translated.
This text is machine translated.

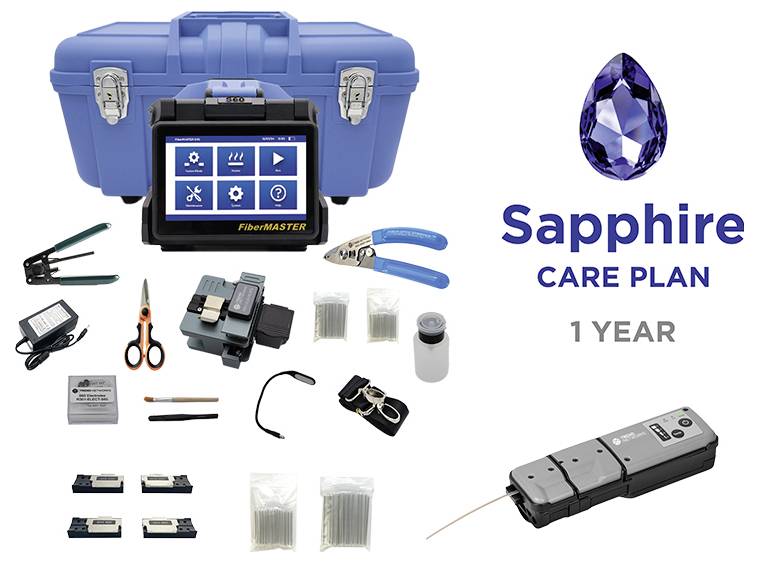

Scope of delivery
- 1 x R301-S60K Fibermaster S60
- 1 x R301-HOLDERKIT Fiber holder - Kit 2 x 250 μm 2 x 900 μm
- 1 x R301-SHRINK-40MM 40mm 40mm 40mm heat-shrink fiber protective sleeves
- 1 x R301-Shrink-60MM 60MM shrink lens resistant sleeves
- 1 x R301-STRIP-Thermal insulation stripper
- 1 x SCP-S60-1Y 1 Year Sapphire Service Agreement
