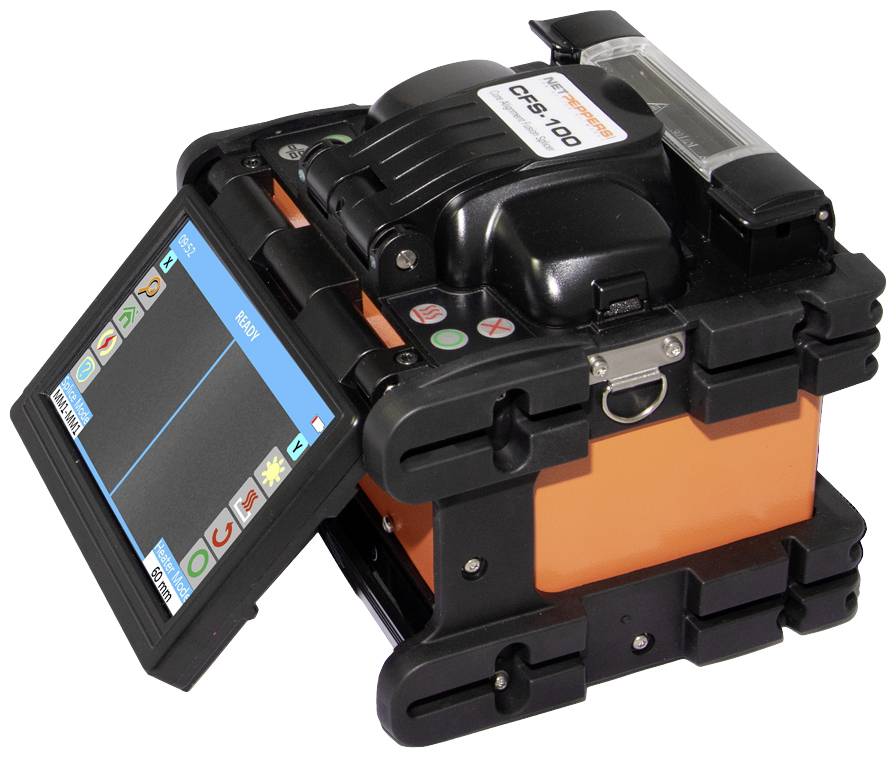

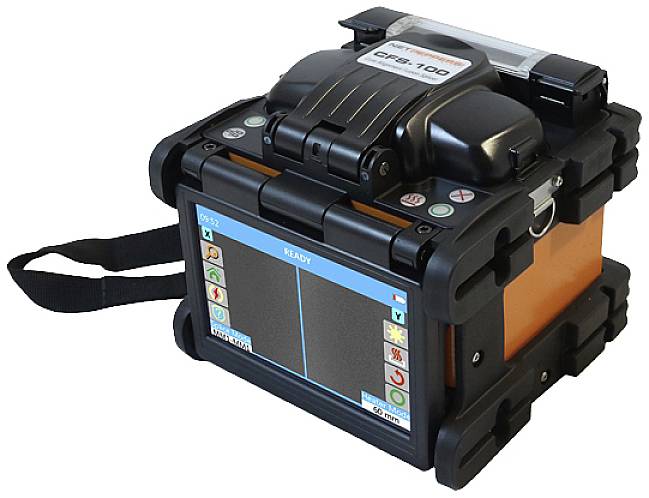

Fusion splicer NP-CFS100 NetPeppers CFS100
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3,701.68 / piece)
€ 3,701.68
plus VAT.
Highlights & Details
NetPeppers core-centered splicing device for professional splicing of all common fiber types
- Splices all conventional fiber types such as multimode, singlemode fibers, pigtails, patch cables or SOCsAutomatic 3-axis alignment system with core centeringAutomatic detection of the inserted fiber type and independant configuration of all important parametersFiber load detection before the splicing process with recognition of the axial offset, fiber break angle and mold testFast splice time of average less than 9 and heat time of heat shrink furnace less than 25 secondsOptical evaluation of the finished splice based on form and attenuation assessmentFoldable display for comfortable use of the device from two working positionsHeat-shrink furnace for splice protectors up to 60 mmAutomatic arc adjustment, temperature and air pressure compensationLED lighting of the splice location, connection of an external work light possible
Technical specifications
- Product type
Fusion splicer
- Display
LCD
- Splicing mode
Automatic
Manual
- Burns per electrode
5000
- Dim
(L x W x H) 147 x 138 x 135 mm
- Weight
1.850 g
25 s
- Features
Touchscreen
- Width
138 mm
- Height
135 mm
- Length
147 mm
- Splicing time
9 s
- Type
CFS100
Documents & Downloads
Datasheet
Datasheet 2533329 Fusion splicer NP-CFS100 NetPeppers CFS100
User & Safety Instructions
User & Safety Instructions 2533329 Fusion splicer NP-CFS100 NetPeppers CFS100
Description

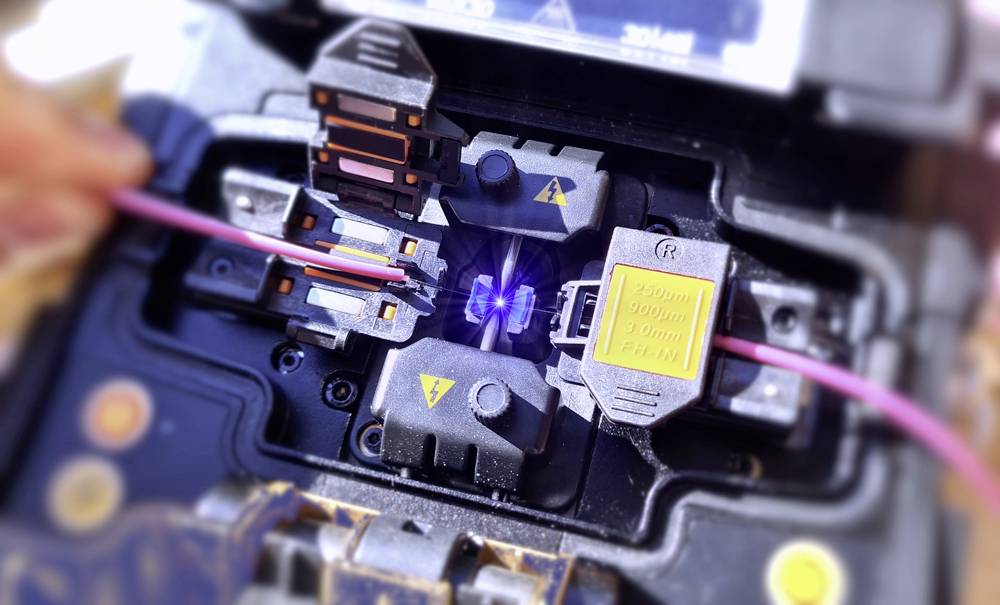

The CFS-100 is a core-centered, 3-axis controlled fusion splicing device that is the perfect companion for splicing small and large projects. The lightweight and flexible precision splicing device allows G.651 fibers to be spliced with attenuation below 0.01 dB and G.652 fibers below 0.02 dB attenuation (typical). Equipped with removable universal fiber holders, SOC holder and internal thermometer as well as barometer, the CFS-100 can be used everywhere. Fast five second start time and an average of nine seconds splicing time as well as the automatic heating oven for heat-shrink protective sleeves accelerate the workflow and lead to more splicing per time.
This text is machine translated.
This text is machine translated.
Features
- State-of-the-art splice technology at workThanks to the core centering and its extensive automatic functions, the CFS-100 is not only highly precise, but also very easy to use.Compatibility that is second to noneWhether multimode, singlemode fibers, pigtails, patch cables or SOCs: The CFS-100 splices all common fiber types.Workflow at splice locationSplicing doesn't have to be uncomfortable. Set up your splicing area according to your requirements. Thanks to the folding display, you can operate the device from the front and back.
Scope of delivery

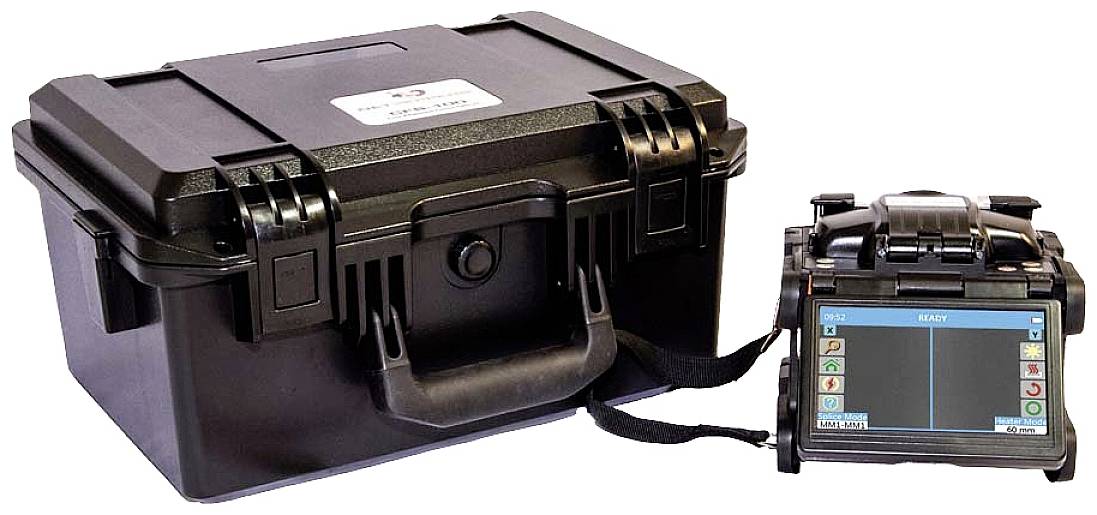

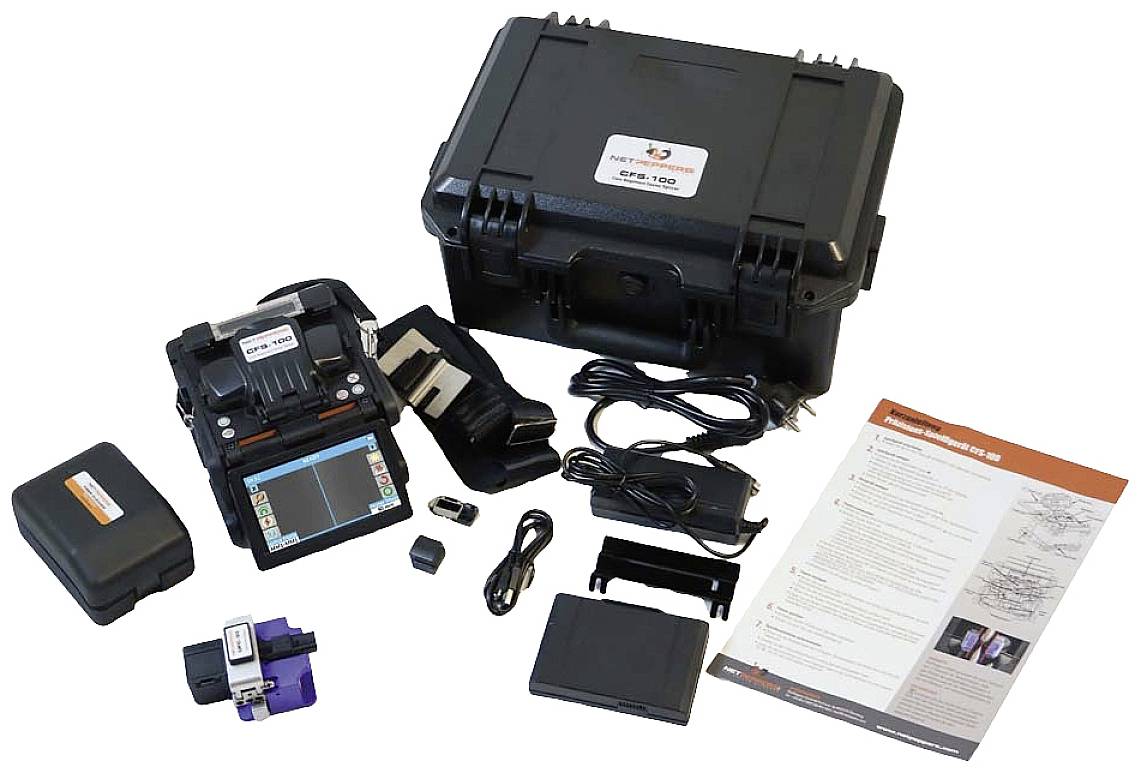

- CFS-100 Splice machinePair of electrodes (pre-installed)Pair of universal fiber holders (4 in 1)SOC-fiber holder1 SOC Shrink furnace adapterLi-ion batteryFiber Cleaver OFC-30Heat-sink for heat-shrink furnace Power adapter including cold device cable1 Micro-USB cable (for data transfer)Hard caseCarrying strap Hard shell caseQuick guideManualCalibration certificateAssembly tool
Hints
IMPORTANT! Please observe the general safety regulations when working with glass fibers
