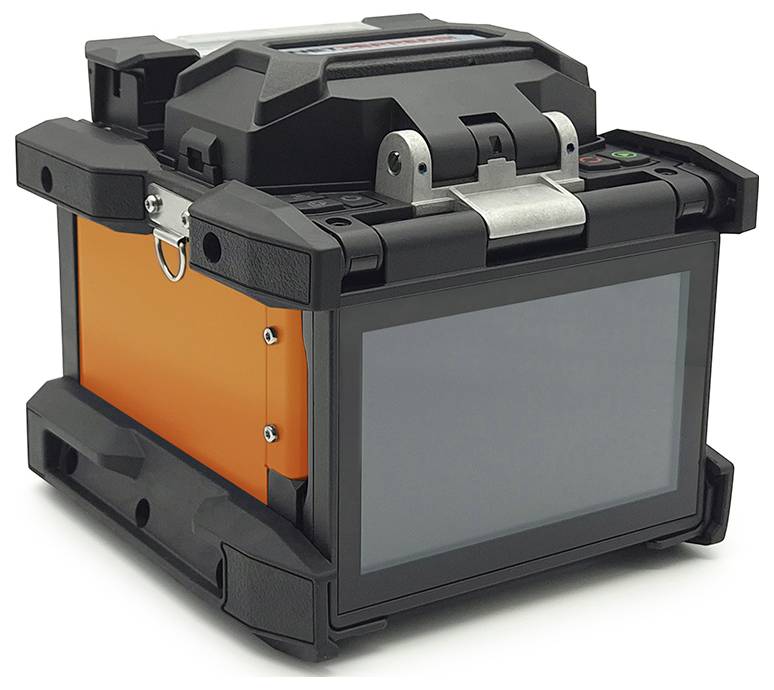

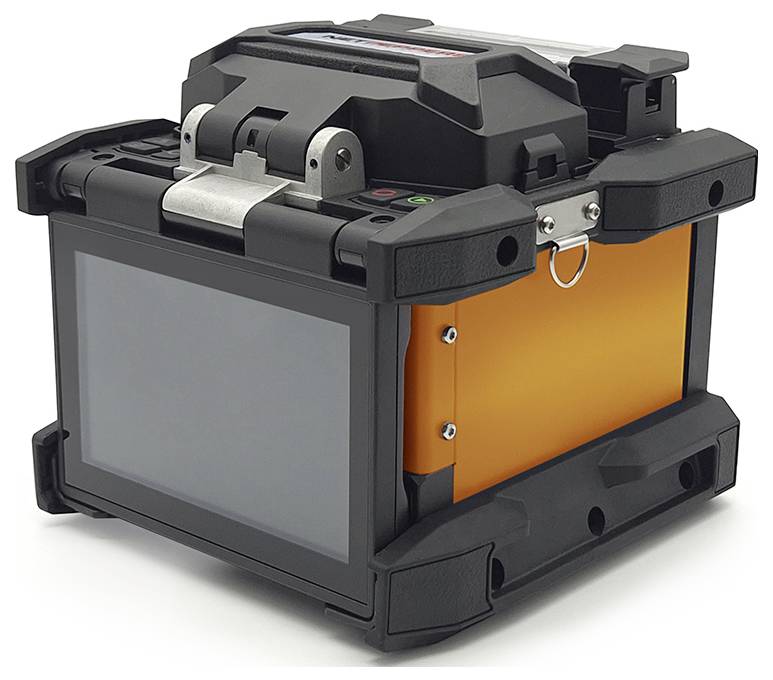

Fusion splicer NP-CFS200 NetPeppers NetPeppers CFS200
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 4,147.06 / piece)
€ 4,147.06
plus VAT.
Highlights & Details
NetPeppers CFS200 Fusion splicebox
- Splits all conventional fiber types such as multimode, singlemode fibers, pigtails or patch cables

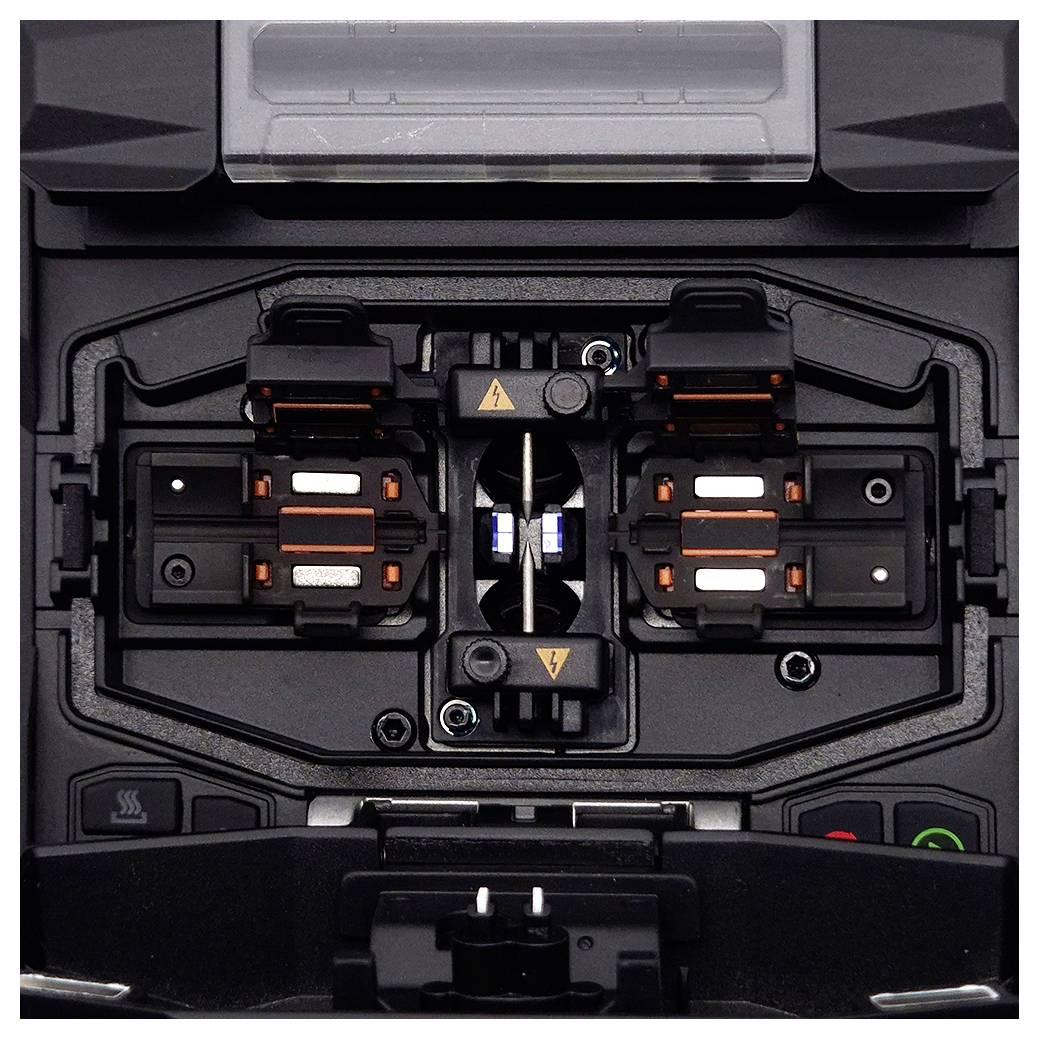

- Automatic 3-axis alignment system with core centering and 6 motors
- Automatic detection of inserted fiber type and independent configuration of all important parameters
- Fast splicing time of an average less than 5s and heating time of the heat-shrink oven below 18s
- Automatic arc adjustment, temperature and air pressure compensation

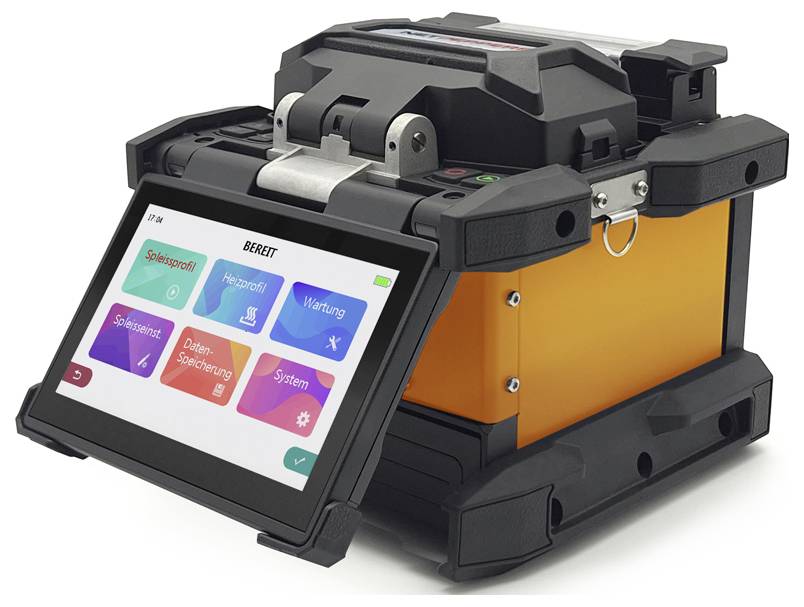

- Folding display for comfortable operation of the device from two working positions

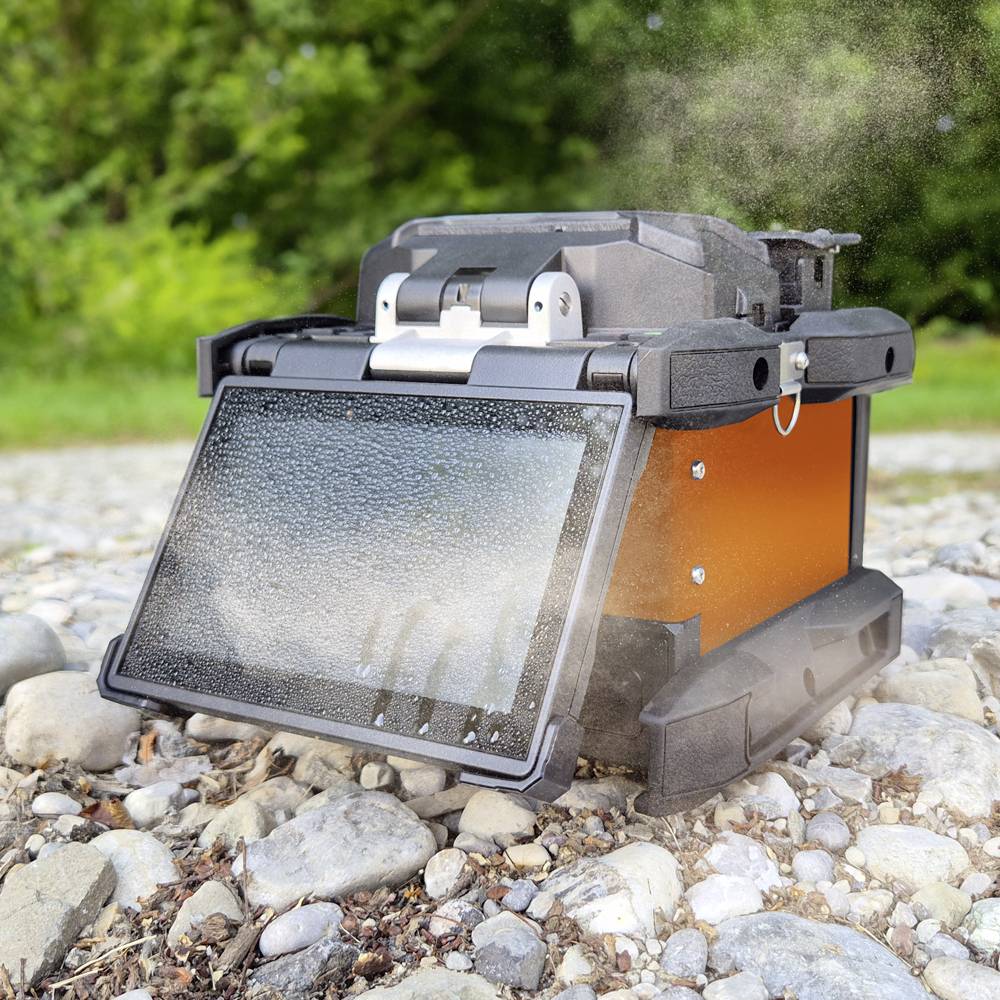

- Protection class IP52, protected against falling from 76 cm height (6 pages)
- Prepared for NP-Connect APP (available optionally)
- 720-fold Zoom and high-quality Optics
- Large 5000 mAh rechargeable battery for over a day of running time
Technical specifications
- Li-Ion rechargeable battery 5000 mAh
- Product type
Fusion splicer
- Display
LCD
- Burns per electrode
5000
- Splicing time
5 s
- Type
NetPeppers CFS200
Documents & Downloads
Datasheet
Datasheet 3451984 Fusion splicer NP-CFS200 NetPeppers NetPeppers CFS200
Information
Test Summary Report 3451984 Fusion splicer NP-CFS200 NetPeppers NetPeppers CFS200
Security datasheet
Security datasheet 3451984 Fusion splicer NP-CFS200 NetPeppers NetPeppers CFS200
Description

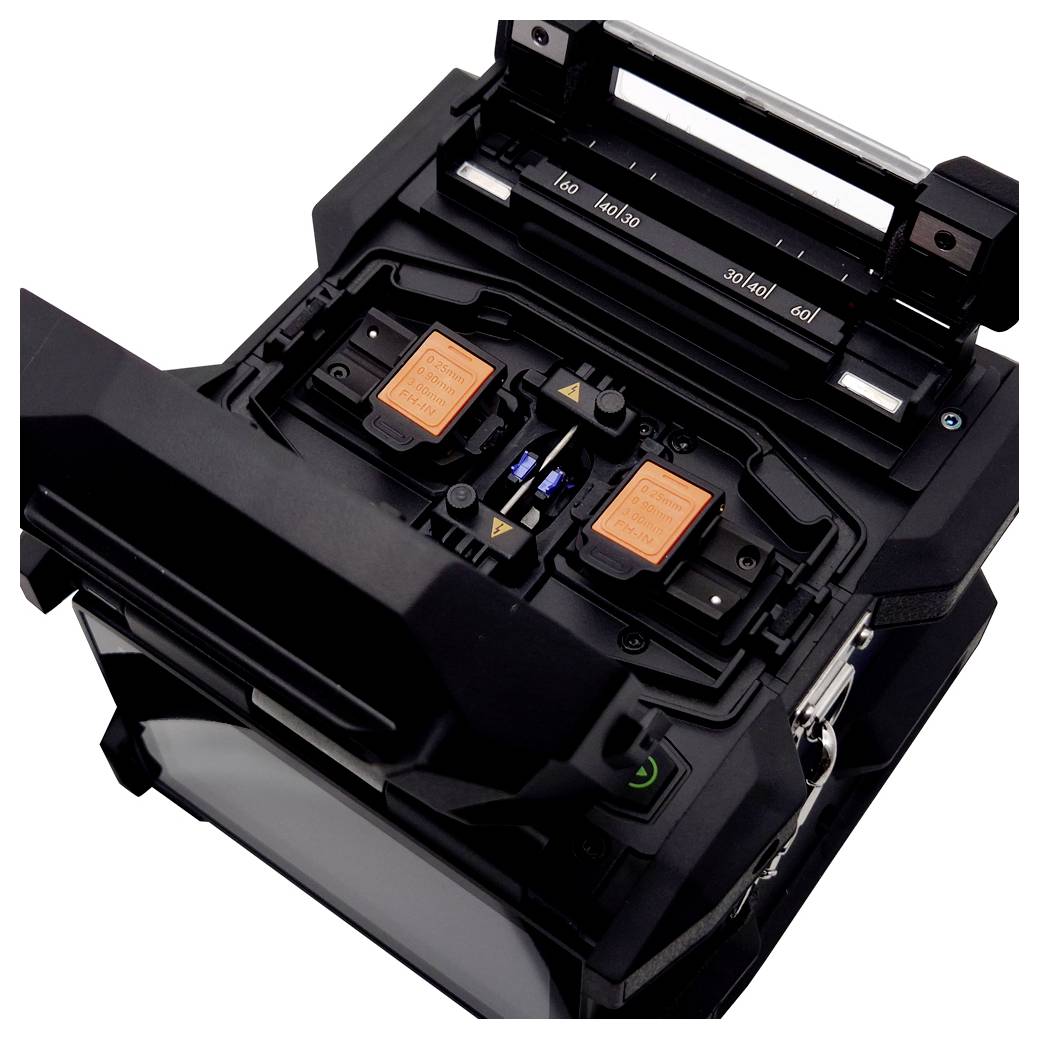

The CFS200 fulfills the highest demands for splice quality and resistance. An IP-52 classification and 76 cm unproblematic drop height on all 6 sides of the device ensures smooth use in demanding environments. The device is equipped with high-quality metal fiber holders and a metal cover flap. Additional rubber buffers on the housing and the LCD display increase the resistance once again. The device is charged via USB-C interface.
Only 5s splice time, 720 times magnification with high-quality optics and 5000 mAh rechargeable battery allow splice process to produce splice at constant low attenuation. Of course, automatic fiber detection, six-motor core centering and automatic pressure and temperature compensation are included on board to ensure consistent splicing quality with automatic adjustment of all parameters.
The device is compatible with the NP-Connect Compatible connectivity package. This allows reports on the quality of the splice to be produced.
This text is machine translated.
Only 5s splice time, 720 times magnification with high-quality optics and 5000 mAh rechargeable battery allow splice process to produce splice at constant low attenuation. Of course, automatic fiber detection, six-motor core centering and automatic pressure and temperature compensation are included on board to ensure consistent splicing quality with automatic adjustment of all parameters.
The device is compatible with the NP-Connect Compatible connectivity package. This allows reports on the quality of the splice to be produced.
This text is machine translated.

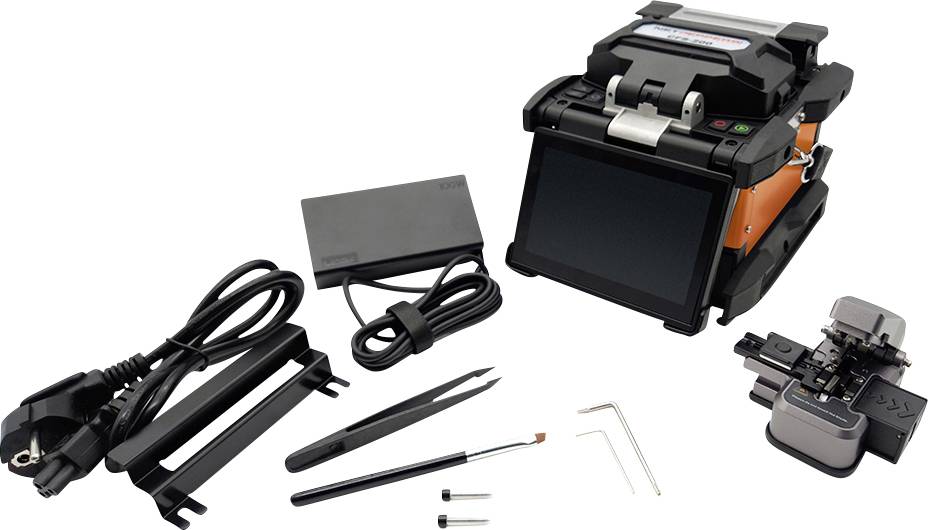

Scope of delivery
- 1 x splice device CFS200
- 1 x clever OFC35

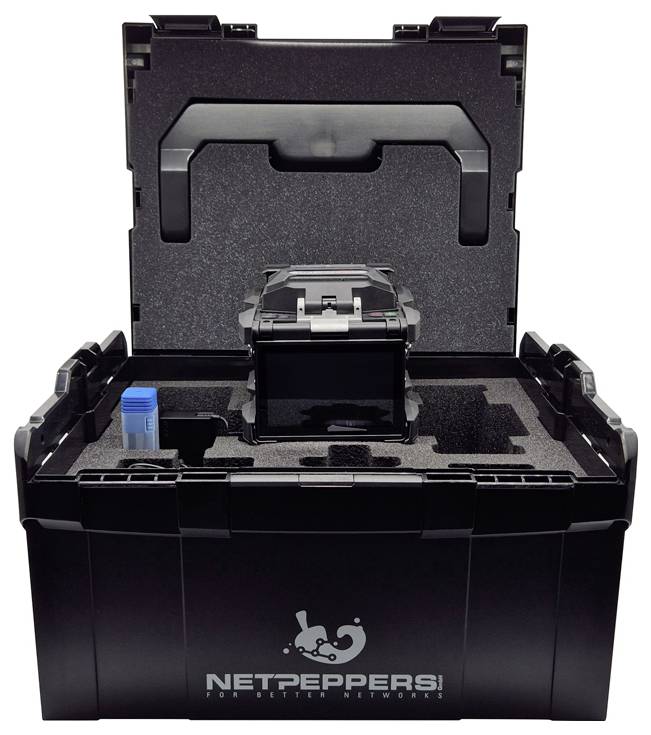

- 1 x Sortimo-compatible L-Boxx238
- 1 x Power adapter including low-power device cable with USB-C connection
- 1 x Li-Ion battery
- 1 x tweezers
- 1 x brush
- 1 x pair of replacement electrodes
- 1 USB-C to USB-A cable
- 1 x cooling plate for shrink-splice protectors
- 1 x quick instructions
