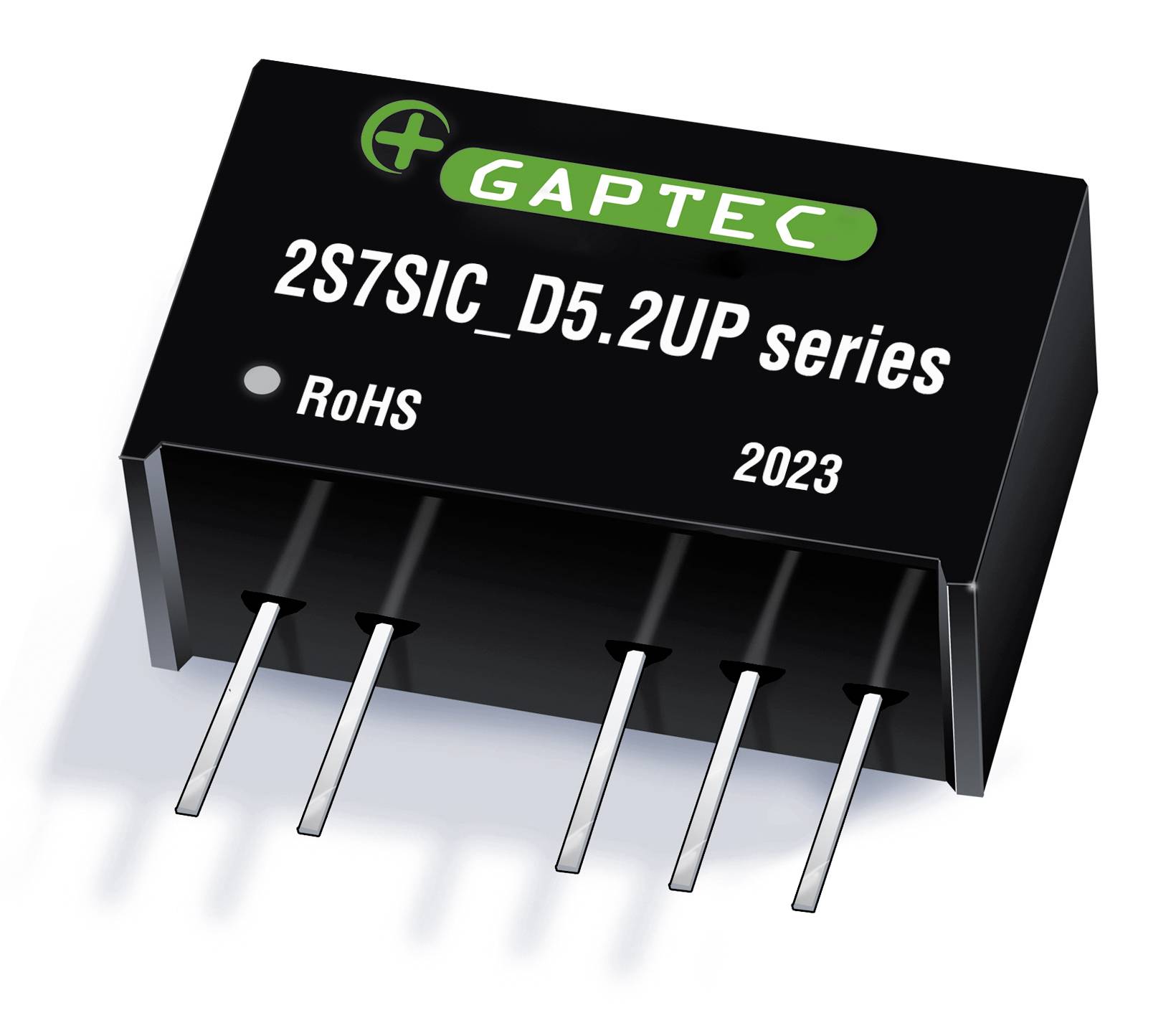

Gaptec 1.8S7SIC_241503D5.2UP DC/DC converter 111 mA 2 W Content 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter
- Type
2S7SIC_D5.2UP
- Min. input voltage
24 V DC
- Input voltage (max.)
24 V DC
- Max. output current
111 mA
- Output current (max.) - rounded
111 mA
2 W
- Insulation voltage
5.2 kV
- Enclosure
SIP 7 (5-pin)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
105 °C
- Dim
(L x W x H) 19.5 x 9.8 x 12.5 mm
- Height
12.5 mm
- Length
19.5 mm
- Width
9.8 mm
- RoHS-compliant
Yes
- Output voltage (max.)
15 V DC
- Weight
4.3 g
- Content
1 pc(s)
- Efficiency
80 %
- Max. operating temperature (derating)
105 °C
- Min. operating temperature (derating)
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3352464 Gaptec 1.8S7SIC_241503D5.2UP DC/DC converter 111 mA 2 W Content 1 pc(s)
Description
Isolated DC-DC converter module 2 output 15V 111mA, 111mA - - - input
