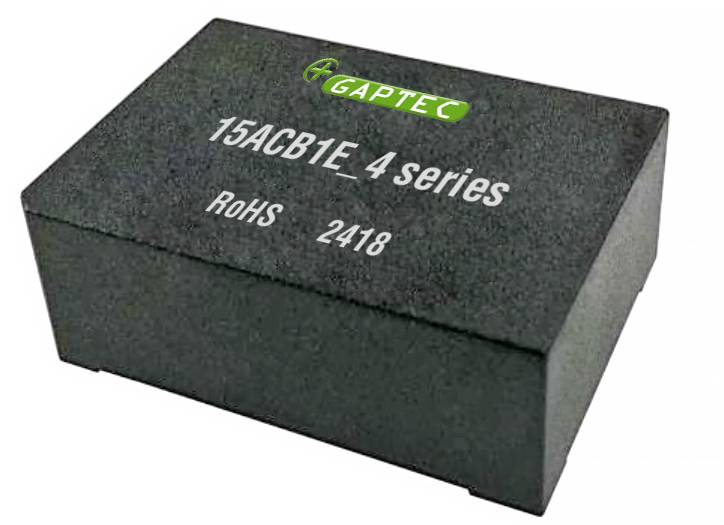

Image similar
Gaptec 15ACB1E_24S4 AC/DC converter 24 V DC 625 mA 15 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
AC/DC converter output 24V 85-265VAC, 120-380VDC
- Output 24 V DC / 625 mA
- Power 15 W
Technical specifications
- Product type
AC/DC converter
- Input voltage (max.)
265 V AC
380 V DC
- Max. output current
625 mA
- Output current (max.) - rounded
625 mA
- Min. input voltage
85 V AC
120 V DC
- Dim
(L x W x H) 62.0 x 45.0 x 22.5 mm
- Output voltage (max.)
24 V DC
15 W
- Operating temperature (max.)
75 °C
- Operating temperature (min.)
-40 °C
- Weight
37 g
- Width
45.0 mm
- Height
22.5 mm
- Length
62.0 mm
- Type
15ACB1E_4
- Enclosure
DIP 8 (5-pin)
- Efficiency
86 %
- Insulation voltage
4 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3352655 Gaptec 15ACB1E_24S4 AC/DC converter 24 V DC 625 mA 15 W
User & Safety Instructions
User & Safety Instructions 3352655 Gaptec 15ACB1E_24S4 AC/DC converter 24 V DC 625 mA 15 W
Description
AC/DC converter output 24V 85-265VAC, 120-380VDC
