Image similar

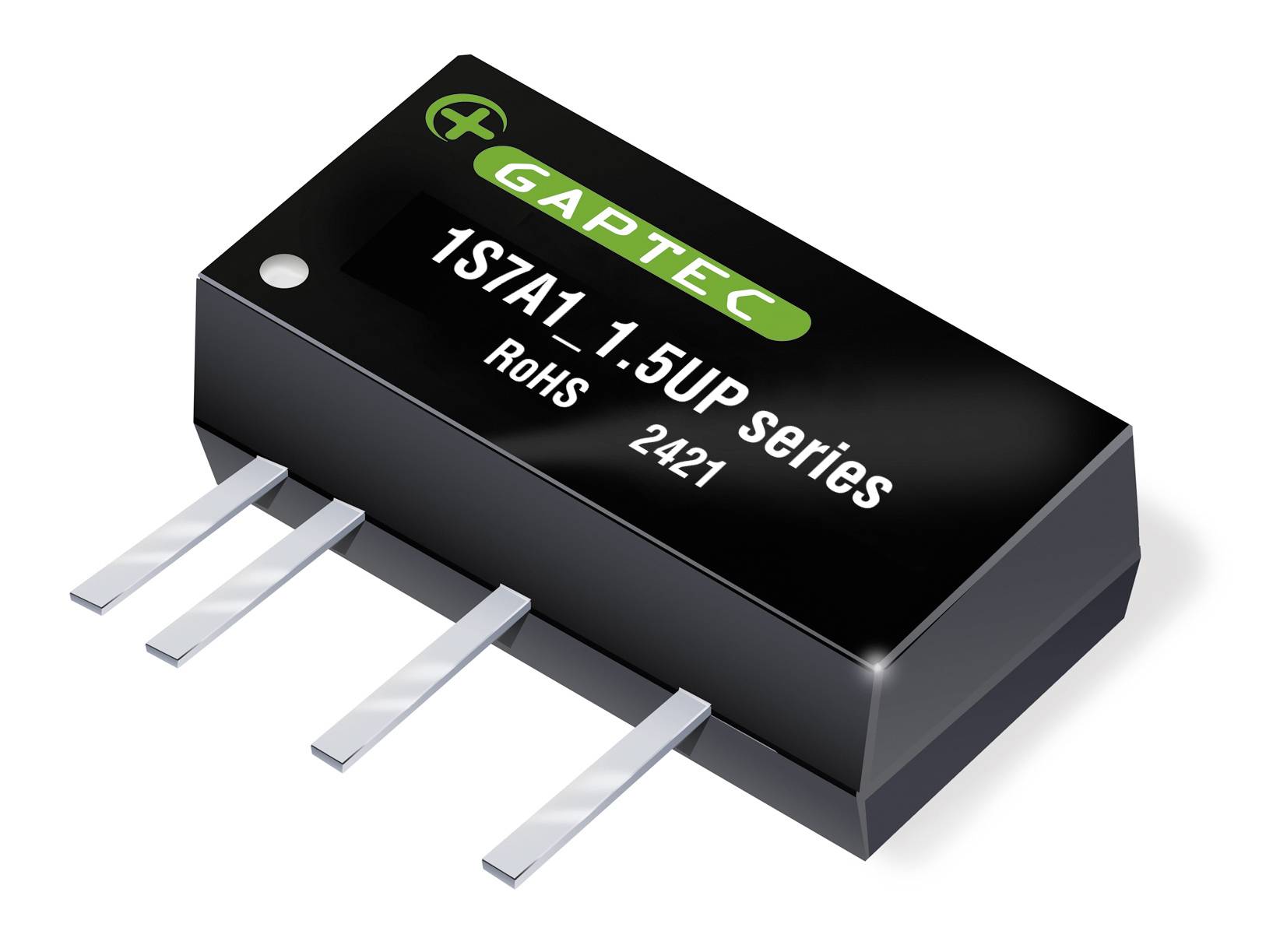

Gaptec 1S7A1_1512D1.5UP DC/DC converter 42 mA 1 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DC/DC converter
- Type
1S7A1_1.5UP
- Min. input voltage
12 V DC
- Input voltage (max.)
18 V DC
- Max. output current
42 mA
- Output current (max.) - rounded
42 mA
1 W
- Insulation voltage
1.5 kV
- Enclosure
SIP 7 (5-pin)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
105 °C
- Dim
(L x W x H) 19.5 x 6.0 x 10.0 mm
- Height
10.0 mm
- Length
19.5 mm
- Width
6.0 mm
- RoHS-compliant
Yes
- Output voltage (max.)
12 V DC
- Weight
2.1 g
- Content
1 pc(s)
- Efficiency
85 %
- Max. operating temperature (derating)
105 °C
- Min. operating temperature (derating)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3353388 Gaptec 1S7A1_1512D1.5UP DC/DC converter 42 mA 1 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3353388 Gaptec 1S7A1_1512D1.5UP DC/DC converter 42 mA 1 W Content 1 pc(s)
Description
Industrial DC-DC converter
