Gaptec 1S7AE_0315S1U DC/DC converter 67 mA 1 W Content 1 pc(s)

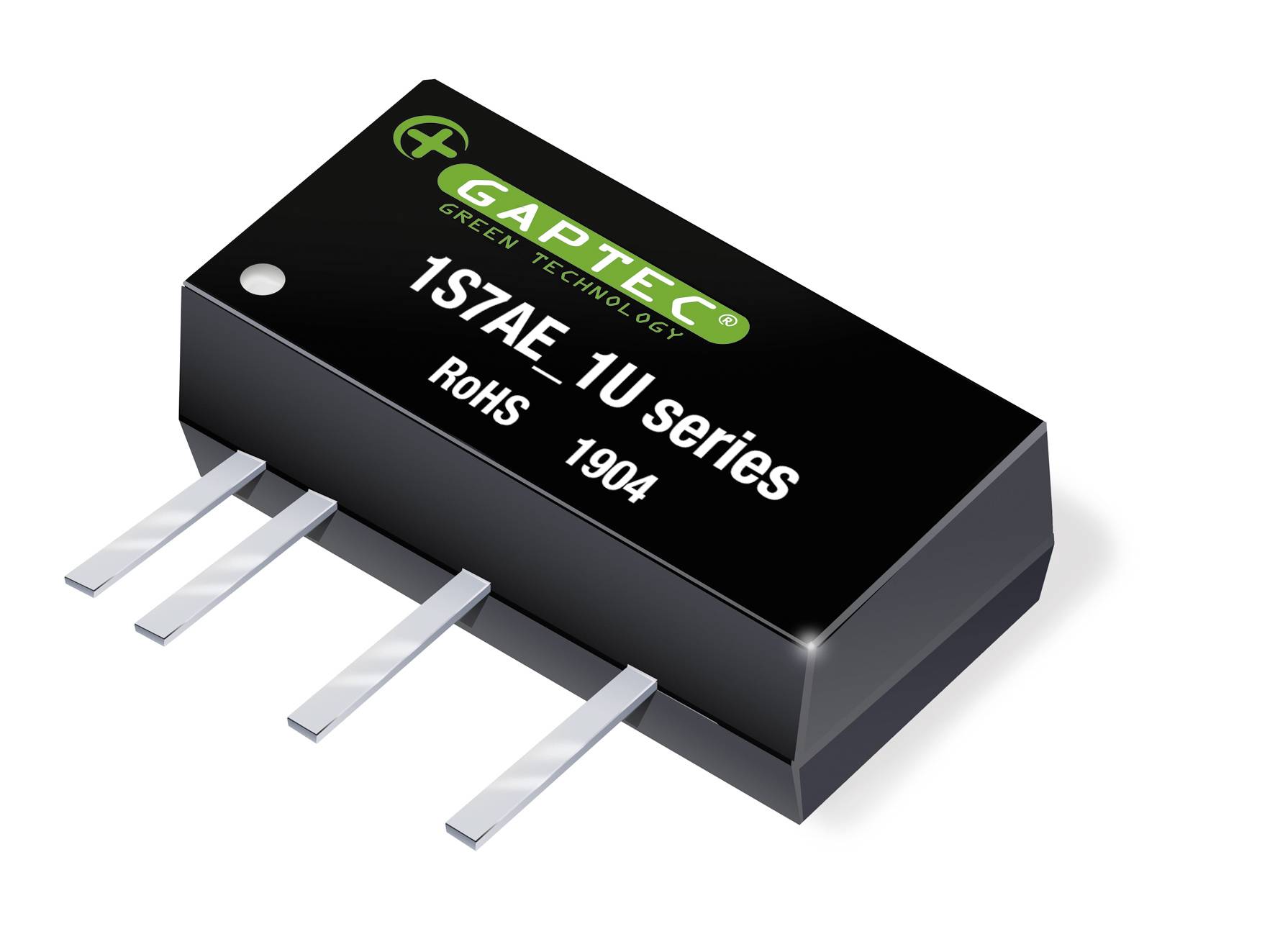

An electronic component by the manufacturer 'GAPTEC Green Technology', series 1S7AE-1U, with four terminals. Inscription: 'ROHS 1904'.

An electronic component by the manufacturer 'GAPTEC Green Technology', series 1S7AE-1U, with four terminals. Inscription: 'ROHS 1904'.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: DC/DC converter

Type: 1S7AE_1U

Min. input voltage: 2.97 V DC

Input voltage (max.): 3.63 V DC

Max. output current: 67 mA

Output current (max.) - rounded: 67 mA

: 1 W

Insulation voltage: 1 kV

Enclosure: SIP 7 (4-pin)

Operating temperature (min.): -40 °C

Operating temperature (max.): 85 °C

Dim: (L x W x H) 19.5 x 6.0 x 10.0 mm

Height: 10.0 mm

Length: 19.5 mm

Width: 6.0 mm

RoHS-compliant: Yes

Output voltage (max.): 15 V DC

Weight: 2.3 g

Content: 1 pc(s)

Efficiency: 78 %

Documents & Downloads

Datasheet

Datasheet 3353417 Gaptec 1S7AE_0315S1U DC/DC converter 67 mA 1 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3353417 Gaptec 1S7AE_0315S1U DC/DC converter 67 mA 1 W Content 1 pc(s)

Description

Isolated DC-DC converter module 1 output 15V 67mA 2.97V - 3.6V input

This text is machine translated.

Description

Isolated DC-DC converter module 1 output 15V 67mA 2.97V - 3.6V input

This text is machine translated.
