Gaptec 1S7AE_0505S1U DC/DC converter 200 mA 1 W Content 1 pc(s)

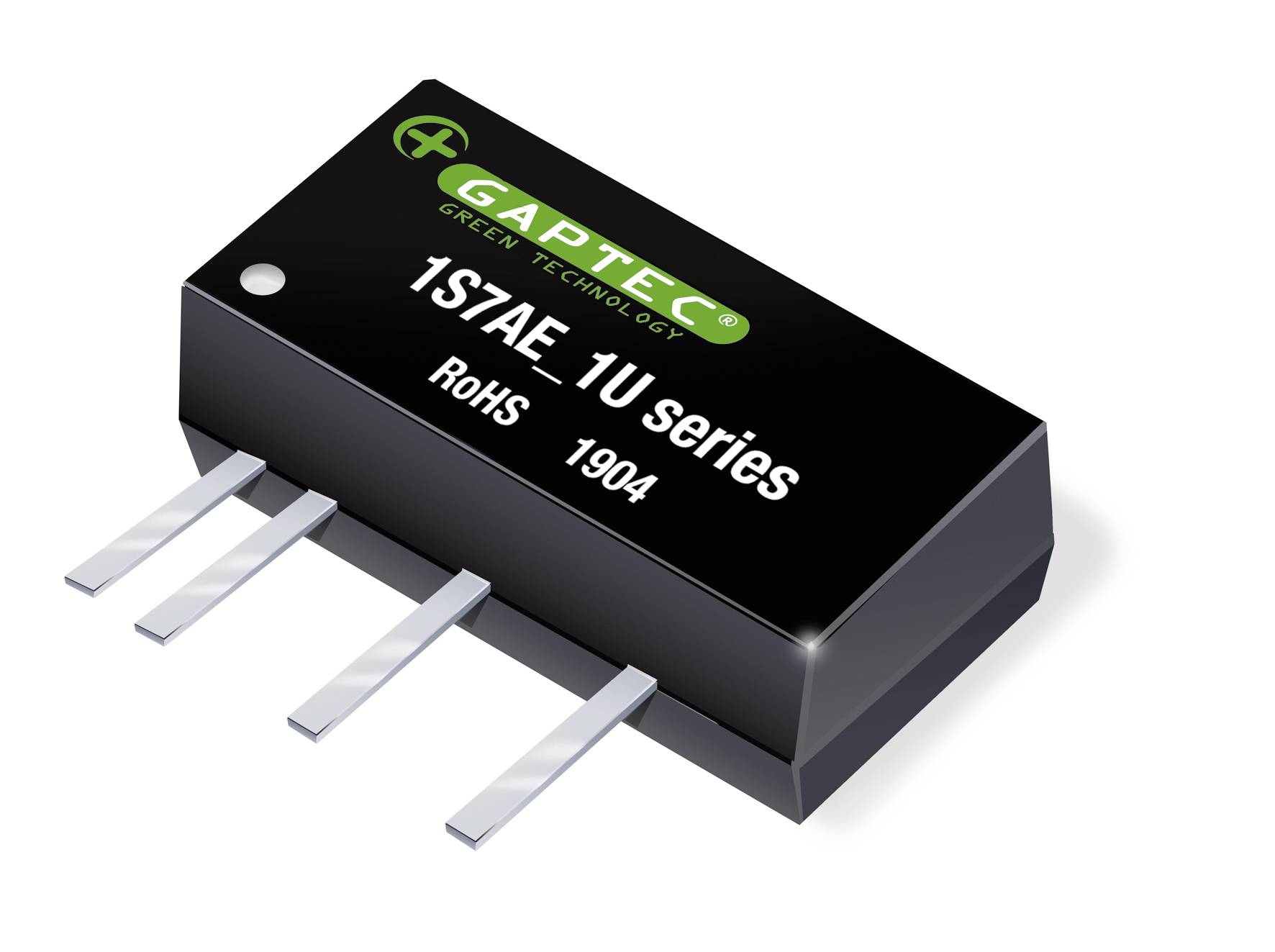

Microchip with four pins, labelled with 'GAPTEC GREEN TECHNOLOGY', '1S7AE-1U series', 'RoHS', '1904'.<br><br>Note: The translation maintains the original technical terms and labelling, with only a minor adjustment to the RoHS acronym capitalisation.

Microchip with four pins, labelled with 'GAPTEC GREEN TECHNOLOGY', '1S7AE-1U series', 'RoHS', '1904'.<br><br>Note: The translation maintains the original technical terms and labelling, with only a minor adjustment to the RoHS acronym capitalisation.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: DC/DC converter

Type: 1S7AE_1U

Min. input voltage: 4.5 V DC

Input voltage (max.): 5.5 V DC

Max. output current: 200 mA

Output current (max.) - rounded: 200 mA

: 1 W

Insulation voltage: 1 kV

Enclosure: SIP 7 (4-pin)

Operating temperature (min.): -40 °C

Operating temperature (max.): 85 °C

Dim: (L x W x H) 19.5 x 6.0 x 10.0 mm

Height: 10.0 mm

Length: 19.5 mm

Width: 6.0 mm

RoHS-compliant: Yes

Output voltage (max.): 5 V DC

Weight: 2.3 g

Content: 1 pc(s)

Efficiency: 81 %

Documents & Downloads

Datasheet

Datasheet 3353426 Gaptec 1S7AE_0505S1U DC/DC converter 200 mA 1 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3353426 Gaptec 1S7AE_0505S1U DC/DC converter 200 mA 1 W Content 1 pc(s)

Description

Isolated DC-DC converter module 1 output 5V 200mA 4.5V - 5.5V input

This text is machine translated.

Description

Isolated DC-DC converter module 1 output 5V 200mA 4.5V - 5.5V input

This text is machine translated.
