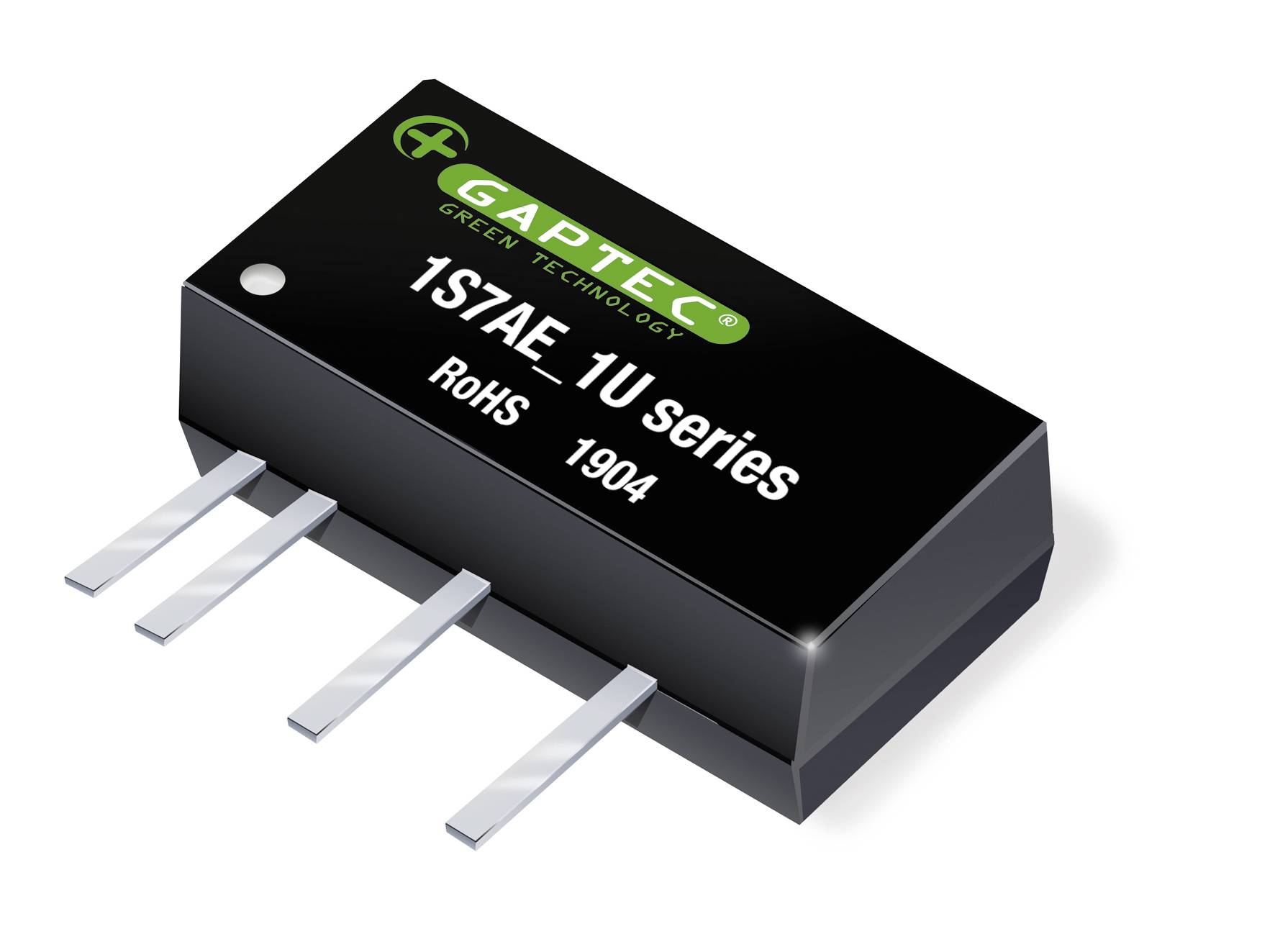

Gaptec 1S7AE_0509S1U DC/DC converter 111 mA 1 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DC/DC converter
- Type
1S7AE_1U
- Min. input voltage
4.5 V DC
- Input voltage (max.)
5.5 V DC
- Max. output current
111 mA
- Output current (max.) - rounded
111 mA
1 W
- Insulation voltage
1 kV
- Enclosure
SIP 7 (4-pin)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 19.5 x 6.0 x 10.0 mm
- Height
10.0 mm
- Length
19.5 mm
- Width
6.0 mm
- RoHS-compliant
Yes
- Output voltage (max.)
9 V DC
- Weight
2.3 g
- Content
1 pc(s)
- Efficiency
82 %
- Max. operating temperature (derating)
85 °C
- Min. operating temperature (derating)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3353431 Gaptec 1S7AE_0509S1U DC/DC converter 111 mA 1 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3353431 Gaptec 1S7AE_0509S1U DC/DC converter 111 mA 1 W Content 1 pc(s)
Description
Isolated DC-DC converter module 1 output 9V 111mA 4.5V - 5.5V input
